Automatic transmission fluid and oil filter change

AP27.00-D-2702HA

Automatic transmission fluid and oil filter change

10.07.2019

Transmission

722.9 in model 906.1/2/6/7

Modification notes

25.09.2014

Removing and installing the auxiliary oil pump added.

Operation steps 7 and 18

08.11.2018

Automatic transmission fluid ATF

Transmission 722.9

BF27.00-N-1001-01A

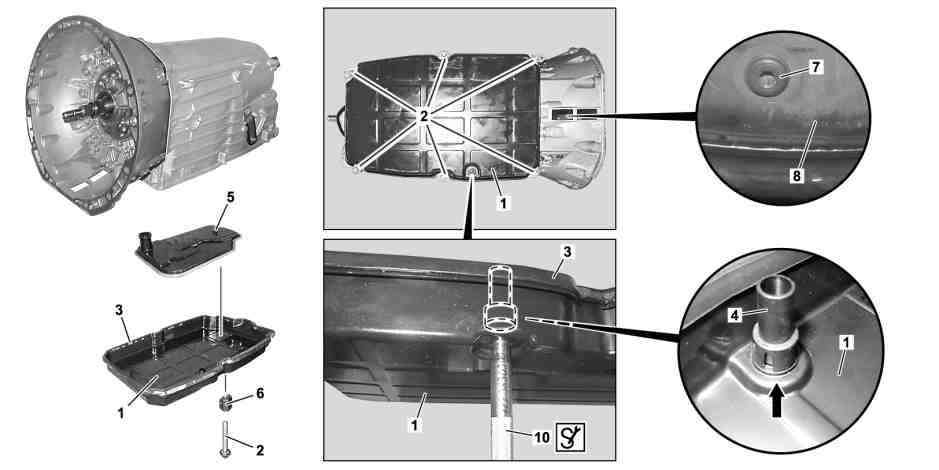

1

Oil pan

4

Overflow pipe

7

Torque converter drain plug

2

Screw

5

Oil filter

8

Torque converter

3

Seal

6

Sprag

10

Drift

4

Overflow pipe

9

Permanent magnet

Drain oil

 Warning

Risk of injury to skin or eyes from hydraulic fluid spraying out under pressure.Risk of poisoning from swallowing hydraulic fluid.

Depressurize hydraulic system completely before starting any work on it. Wear protective clothing and safety glasses.

AS00.00-Z-0013-01A

 Warning

Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running.

Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.

AS00.00-Z-0005-01A

 Warning

Risk of injury. Skin or eye injuries may result when handling hot or glowing objects.

Wear protective gloves, protective clothing and safety glasses, if necessary.

AS00.00-Z-0002-01A

 Danger

Risk of death caused by vehicle slipping or toppling off of the lifting platform.

Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.

AS00.00-Z-0010-01A

Notes on automatic transmission

AH27.19-P-0001-01NKB

1

Lift/jack up vehicle

Only when a pit is not available.



AR00.60-D-1000H

2

Secure vehicle on vehicle lift



AR00.60-D-0100H

3

Clean area around torque converter drain screw (7) and oil pan (1)

4

Position suitable receptacle under the transmission

5

Remove drain screw from oil pan (1)

 Collect oil which flows out in a suitable vessel.

6

Pry overflow pipe (4) off base (arrow) using drift (10)

 Collect oil which flows out in a suitable vessel.

 Drift

*722589031500

7

Remove auxiliary oil pump



With CODE MJ8 (ECO start/stop function) or with CODE MJ7 (ECO start/stop function)

AR27.30-D-0651WE

8

Drain transmission oil from torque converter (8)



AR27.20-D-0200-03H

 Drain screw to torque converter

*BA27.20-N-1001-01F

 Counterholder

*651589004000

 Counterholder

*651589084000

 Ratchet box wrench

*906589000300

 Drain plate

*906589086300

9

Remove oil pan (1)

10

Detach oil filter (5) downwards

11

Remove overflow pipe (4) from oil pan (1)



Clean

12

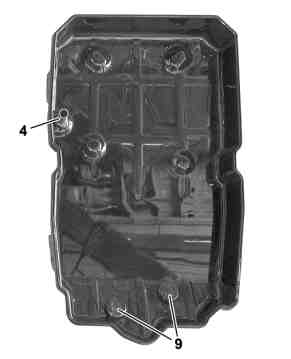

Clean permanent magnets (9) and check for damage

 Replace permanent magnet (9) if necessary.

13

Clean oil pan (1)


It is essential to clean and degrease sealing surfaces thoroughly. Have the cleaning sprays completely extracted.
Leaks may occur otherwise.

 The sealing surfaces on the oil pan (1) and transmission housing must be free of oil and grease.

Install

14

Install new oil filter (5) with new O-ring

15

Install new overflow pipe (4)

 Press new overflow pipe (4) firmly onto the base (arrow) in the oil pan (1). The overflow pipe (4) must latch noticeably.

16

Install oil pan (1) with new seal (3)


The sprags (6) are only permitted for transmission 722.9 and they may not be mixed up with sprags for other transmissions
Otherwise contact corrosion may occur.

 Replace seal (3) and bolts (2).

 Do not apply sealant on oil pan (1) and transmission housing.

 Bolt, oil pan to transmission housing

*BA27.10-N-1006-04B

17

Install drain screw in oil pan (1)

 Drain screw on oil pan

*BA27.10-N-1005-04B

18

Install auxiliary oil pump



With CODE MJ8 (ECO start/stop function) or with CODE MJ7 (ECO start/stop function)

AR27.30-D-0651WE

Pour in oil

19.1

Fill automatic transmission with transmission oil.

Transmission with guide tube for oil dipstick

 Automatic transmission fluid ATF

*BF27.00-N-1001-01A

 Funnel

*126589126300

 Hand pump

*210589007100

 Dipstick

*722589002100

19.2

Fill automatic transmission with transmission oil.

Transmission without guide tube for oil dipstick



AR27.00-D-0270WE

20

Confirm oil change in maintenance booklet/DSB

 Complete automatic transmission

Number

Designation

Transmission 722.9

BA27.10-N-1005-04B

Drain screw on oil pan

Nm

22

 Complete automatic transmission

Number

Designation

Transmission 722.9

BA27.10-N-1006-04B

Bolt, oil pan to transmission housing

Stage 1

Nm

4

Stage 2

°

180

 Torque converter

Number

Designation

Transmission 722.9

BA27.20-N-1001-01F

Drain screw to torque converter

M8

Nm

10

M10

Nm

15

 Automatic transmission

Number

Designation

Transmission 722.9

BF27.00-N-1001-01A

Automatic transmission fluid ATF

Filling capacity - complete refill

Liter

10,0

Filling capacity - oil change

Liter

9,0

Filling capacity, transmission oil change

with torque converter

Liter

9,0

Filling capacity, transmission oil change

without torque converter

Liter

5,5
