Shown on model 447 with engine 654.9 |
16 | Counterholder |
17 | Belt pulley/vibration damper |
S27.10-A010-81

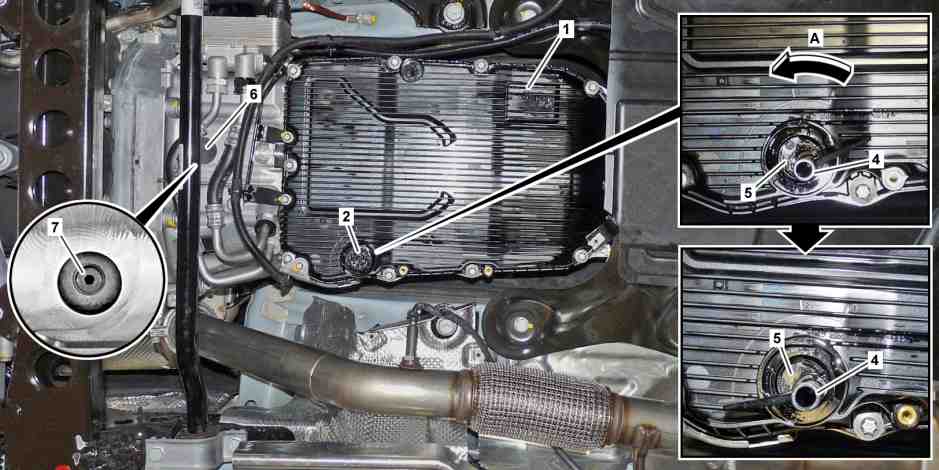

S27.00-A005-79
Shown on model 447 with engine 654.9 |
1 | Automatic transmission oil pan | 4 | Socket wrench | 6 | Cover | ||
2 | Quick-release coupling | 5 | Overflow pipe | 7 | Drain screw |
S27.00-A002-79
Shown on model 447 with engine 654.9 |
1 | Automatic transmission oil pan | 2 | Quick-release coupling | 3 | Adapter |
Danger | Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | |
Warning | Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | |
Caution | Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. | |
Notes on automatic transmission | |||
Drain off | |||
1 | Shift automatic transmission to neutral. | ||
2 | Release parking brake. | ||
3 | Remove resonator box. |
| |
4 | Attach counterholder (16) to belt pulley/vibration damper (17). | Transmission 725.0 in model 447 with engine 654.9 | |
Counterholder | |||
5 | Attach suitable tool for rotating crankshaft to counterholder (16). | Transmission 725.0 in model 447 with engine 654.9 | |
6 | Remove lower engine compartment paneling. | ||
Ensure that vehicle is level in longitudinal and transverse direction on vehicle lift. | |||
7 | Thoroughly clean automatic transmission oil pan (1) and its surroundings. | Assembly cleaner | |
8 | Open quick-release fastener (2) with socket wrench. | Collect escaping automatic transmission fluid in a suitable container to determine the quantity of automatic transmission fluid. | |
Socket wrench | |||
9 | Insert socket wrench (4) into overflow pipe (5) until it engages. | Socket wrench | |
10 | Turn socket wrench (4) to position 4 (arrow A). | Collect remaining automatic transmission fluid in a suitable container to determine the quantity of automatic transmission fluid. | |
Do not pull the socket wrench (4) out of the overflow pipe (5). | |||
Socket wrench | |||
11 | Turn socket wrench (4) to position 1. | Socket wrench | |
12 | Remove socket wrench (4) from overflow pipe (5). | | |
Socket wrench | |||
13 | Remove the cover (6). | ||
Warning | Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | |
14 | Turn torque converter by continuing to turn crankshaft until drain screw (7) is visible in opening. | Transmission 725.0 in model 447 with engine 654.9 | |
Transmission 725.0 in model 447, 448 with engine 274 | |||
Transmission 725.0 in model 447 with engine 654.9 | |||
15 | Remove drain screw (7). | Collect escaping automatic transmission fluid in a suitable container to determine the quantity of automatic transmission fluid. | |
16 | Remove counterholder (16). | Transmission 725.0 in model 447 with engine 654.9 | |
Counterholder | |||
Pour in | |||
17 | Screw in new drain screw (7). | Drain screw to torque converter | |
18 | Install cover (6). | ||
19 | Attach adapter (3). | ||
| 000 588 06 82 00 Oil dispenser | ||
| |||
To do so, connect oil dispenser to adapter (3). | |||
Adapter | |||
20 | Determine drained automatic transmission fluid quantity. | Fill drained quantity and also approx. 0.5 l of automatic transmission fluid. | |
Transmission fluid | |||
21 | Detach oil dispenser and remove adapter (3). | Adapter | |
22 | Close new quick-release coupling (2) with socket wrench. | Socket wrench | |
23 | Connect diagnostic system. | ||
| |||
24.1 | Check/correct automatic transmission fluid level with ultrasound unit. | If the automatic transmission fluid level is checked with ultrasound unit. | |
| 000 588 09 19 00 Oil level sensor | ||
| 000 588 06 82 00 Oil dispenser | ||
| Automatic transmission fluids (ATF) (specification 236.17) | ||
Assembly cleaner | |||
MB Plastilube brake paste (brownish) | |||
Socket wrench | |||
Adapter | |||
Socket wrench | |||
Warning | Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | |
24.2 | Check/correct automatic transmission fluid level without ultrasound unit. | If the automatic transmission fluid level is checked without ultrasound unit. | |
Socket wrench | |||
Socket wrench | |||
25 | Remove vehicle diagnosis system. | ||
26 | Install lower engine compartment paneling. |
724 589 01 09 00
Socket wrench
725 589 00 90 00
Adapter
001 589 65 09 00
Socket wrench bit
725 589 00 09 00
Socket wrench
654 589 00 40 00
Counterholder
