Remove/install front engine mount

AR22.10-P-4330LF

Remove/install front engine mount

22.06.2017

Engine

157, 278 in model 217, 222

except code M005 (4MATIC)

Modification notes

22.06.2017

Schraube Motorlager vorn an Motorträger

Typ 222 mit Code Z07 (Höchstschutz)

BA22.10-P-1001-03K

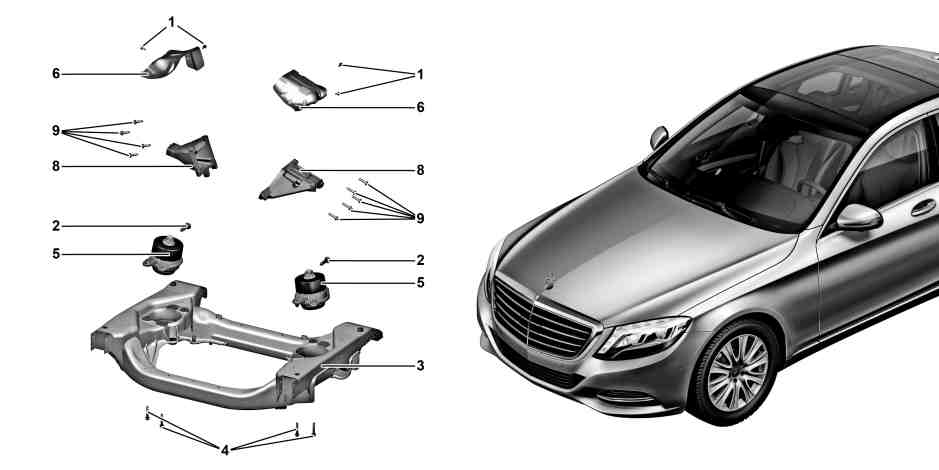

Shown on model 222.082

1

Screw/bolts

5

Engine mount

2

Screw/bolts

6

Heat shields

4

Screw/bolts

 Warning

Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities.

No parts of the body or limbs should be within the operating area of mechanical components when moving components.

AS00.00-Z-0009-01A

 Warning

Risk of injury. Skin or eye injuries may result when handling hot or glowing objects.

Wear protective gloves, protective clothing and safety glasses, if necessary.

AS00.00-Z-0002-01A

 Caution

Risk of injury caused by scraping or cutting body parts on sharp vehicle parts

Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.

AS00.00-Z-0017-01A

Topical note

Notes on threaded connections fastened using a tightening angle-based tightening process

AH00.00-P-0020-01A

Topical note

Notes on bolted connections with self tapping screws

AH00.00-P-0007-01SF

Note on calculation of tightening torque when using insertion or socket tools with various effective lengths

AH00.00-P-0015-01CW

 

Remove/install

1

Mount engine hoist and raise engine slightly

AR33.10-P-0105LF


Only raise engine sufficiently until the engine mounts (5) are not under tension.
Otherwise, the engine mount (5) will be damaged.

2

Remove left catalytic converter

AR49.10-P-5502LF

3

Remove right catalytic converter

AR49.10-P-5503LF

4

Remove screw/bolts (4)

 Screw/bolt, front engine mount to front axle carrier

*BA22.10-P-1002-03K

5

Remove steering coupling

Engine 157, 278 in model 222 up to 4/29/14
except code M005 (4MATIC)

AR46.10-P-8000RK

Engine 157, 278 in model 217, 222 as of 4/30/14
except code M005 (4MATIC)

AR46.10-P-8000LW

6

Remove screw/bolts (1) and remove heat shields (6)

 Bolt, heat shield to engine support

*BA22.10-P-1003-02A

7

Raise engine further with engine hoist

AR33.10-P-0105LF


Ensure that during lifting that no cables and lines lie on the partition wall.
Damage can occur to cables and lines otherwise.

8

Remove screws/bolts (2) at left and right engine mount (5)

 Bolt, front engine mount to engine support

*BA22.10-P-1001-03K

9

Remove left and right engine mounts (5) to the rear

 Always replace engine mount (5) in pairs.

 Pay attention to environmental regulations for disposal of engine mounts (5). Dispose of engine mounts (5) into mixed scrap.

 Installation: Ensure that the correct installation position is obtained when assembling the engine mount (5).

10

Install in the reverse order

 Engine mount, engine support (engine side)

Number

Designation

Model 217 with engine 157, 176, 177, 278, 279

Model 222
with code Z07 (Top protection)

BA22.10-P-1001-03K

Bolt, front engine mount to engine support

M10

Stage 1

Nm

45

50

Stage 2

°

120

-

M12

Stage 1

Nm

45

45

Stage 2

°

120

125

 Engine mount, engine support (engine side)

Number

Designation

Model 217 with engine 157, 176, 177, 278, 279

Model 222
with code Z07 (Top protection)

BA22.10-P-1002-03K

Screw/bolt, front engine mount to front axle carrier

Nm

30

30

 Engine support (engine side)

Number

Designation

Engine 157

Engine 278

BA22.10-P-1003-02A

Bolt, heat shield to engine support

Nm

9

13
