P68.30-2803-09

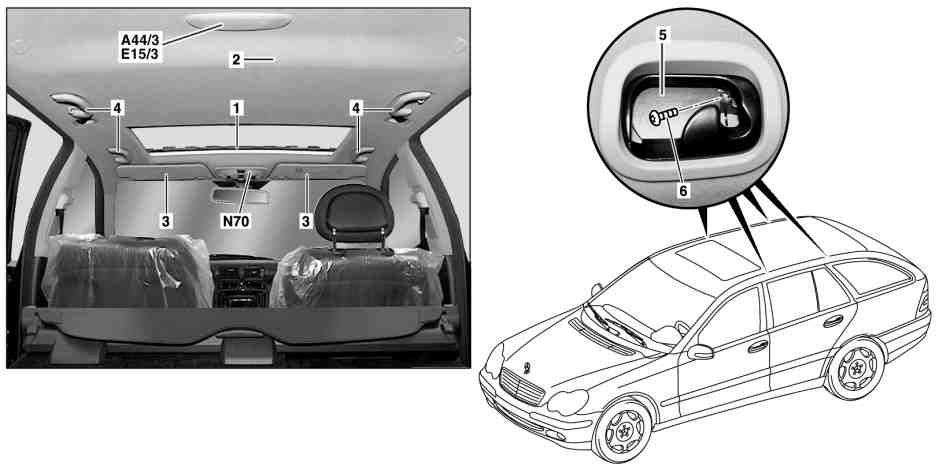

Illustrated on vehicles with code (414a) Electric glass sliding/pop-up roof
1 Sliding roof rail (with code (414a) Power glass tilting/sliding roof)
A44/3 PTS warning display, rear dome lamp (with code (220a) Parktronic system (PTS))
E15/3 Rear dome lamp
N70 Overhead control panel control unit
2 Headliner
3 Sun visor
4 Grab handles
5 Bracket for luggage net separation
6 Bolt
Modification notes
| Remove/install | ||
| Note on function reliability of windowbag | ||
1.1 | Open sliding/pop-up roof and remove sliding roof rail (1) | on vehicles with code (414a) electric glass titling/sliding roof | |
2 | Remove left and right paneling from A-pillar | ||
3 | Remove left and right paneling from B-pillar | ||
4 | Remove left and right paneling from Remove C-pillar | ||
5 | Remove left and right paneling from Remove D-pillar | ||
6 | Remove overhead control panel control unit (N70) | ||
7 | Remove inside rearview mirror | ||
8 | Remove inside rearview mirror holder | ||
9.1 | Remove rain sensor cover and disconnect rain sensor | On vehicles with code (345a) Rain sensor | |
10 | Disconnect light switch-on sensor | ||
11 | Remove left and right sun visor (3), unscrew bolt from left and right pivot bearing. | ||
12 | Remove handle (4) on left and right side of vehicle | ||
13.1 | Remove interior protection transmitter and receiver | Only on vehicles with code (882b) Interior monitoring (with ATA only) when replacing headliner (2). | |
14 | Unscrew bolt (6) and remove bracket for luggage net separation (5) on left and right side of vehicle | ||
15.1 | Remove rear dome lamp (E15/3) | On vehicles without code (220a) Parktronic system (PTS) | |
15.2 | Remove rear dome lamp PTS warning indicator (A44/3) | On vehicles with code (220a) Parktronic system (PTS) | |
16 | Expose headliner main wiring harness (2) in area of left D-pillar | ||
17 | Disconnect electrical connectors for headliner main wiring harness (2) from rear SAM control unit with fuse and relay module | ||
18.1 | Expose headliner wiring harness (2) in area of right D-pillar and disconnect electrical connectors | On vehicles with code (273) D-net portable CTEL preinstallation or code (329) Preinstallation for AMPS telephone system or code (494) California version or code (498) Japanese version or code (852) Complete portable CTEL preinstallation on console or code (853) MB standard telephone or code (854) MB Portable CTEL or code (855) TELE AID or code (810) Sound system or code (220a) Parktronic system (PTS) | |
19 | Move left and right seats all the way back and move backrests to prone position to extent possible | See Operator's Manual | |
20 | Pull headliner (2) toward rear | Secure headliner (2) against falling down. | |
21 | Remove edge guard from rear door cutout | ||
22 | Mask in area of rear door cutout with adhesive tape | ||
23 | Remove headliner (2) through cargo space toward rear | Handle headliner (2) carefully to prevent damage | |
24.1 | Prepare headliner (2) for installation | Only when replacing headliner (2). | |
25 | Install in the reverse order |
