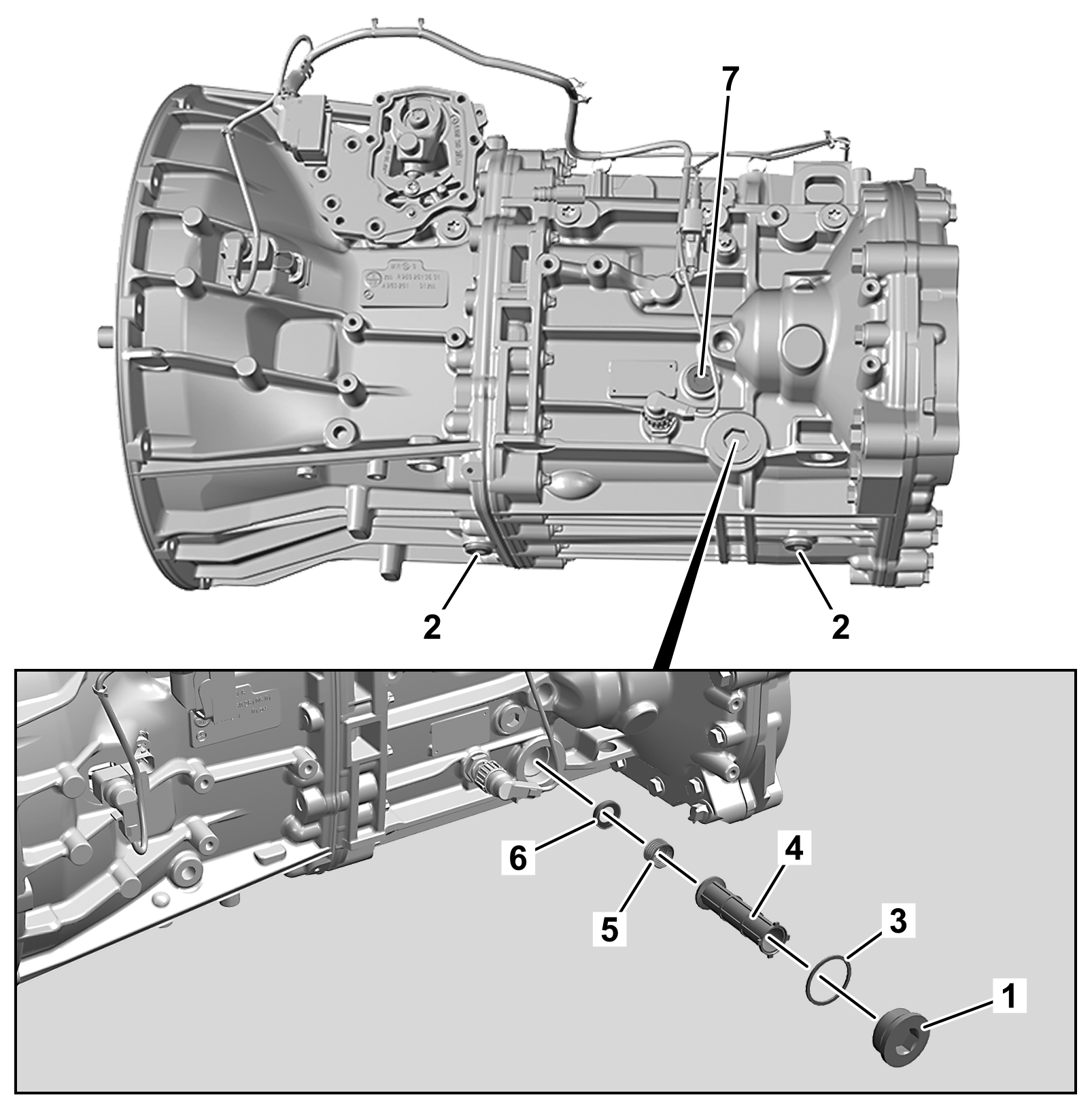

1 | Screw plug |
2 | Drain screw |
3 | Sealing ring |
4 | Oil strainer |
5 | Spring |
6 | Jack |
7 | Oil filler plug |
G26.00-A000-12
Warning | Risk of burns and scalding when handling hot fluids and components they come into contact with. Risk of injury to skin and eyes when handling hot fluids. | Wear protective gloves, protective clothing and safety glasses, if necessary. Pour hot fluids in suitable containers only. | |
Warning | Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | |
Caution | Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. | |
Draining | |||
1 | Clean area surrounding oil filler screw (7) and drain screw (2). | ||
2 | Remove oil filler screw (7) and drain screws (2) with sealing ring. | Only drain the transmission oil when the transmission is warm. Collect transmission oil in a suitable container. | |
3 | Remove screw plug (1) and remove sealing ring (3). | The screw plug (1) is spring loaded! Carefully unscrew screw plug (1) and wear safety glasses. | |
4 | Remove oil screen (4), spring (5) and bush (6). | Mark installation position of oil screen (4). | |
| Clean | ||
5 | Clean oil screen (4), spring (5) and bush (6). | ||
Pour in | |||
6 | Insert bushing (6), spring (5) and oil screen (4) one after the other. | Observe installation position of oil screen (4). | |
7 | Screw in screw plug (1) with new sealing ring (3). | Screw plug, oil strainer to transmission housing | |
8 | Screw in drain screws (2) with new sealing rings. | Oil filler screw and drain screw to transmission housing | |
9 | Add new transmission oil up to lower edge of hole for oil filler screw (7). | Gear oil | |
10 | Screw in oil filler screw (7). | Do not replace sealing ring. | |
Oil filler screw and drain screw to transmission housing | |||
| Check | ||
11 | Start engine and run for approx. 2 min. | See information from body manufacturer. | |
12 | Switch off engine. | ||
13 | Remove oil filler screw (7). | ||
14 | Check transmission oil level, correct, if necessary. | The transmission oil level must reach the lower edge of the hole for the oil filler screw (7). | |
Gear oil | |||
15 | Screw in oil filler screw (7) with new sealing ring. | Oil filler screw and drain screw to transmission housing |
