ใช้กับ: Model 117, 124, 129, 140, 156, 163, 164, 166, 168, 169, 170, 171, 172, 176, 177, 190, 197, 199, 201, 202, 203, 204, 205, 207, 208, 209, 210, 211, 212, 213, 215, 216 Model 118, 247 with engine 139, 260, 282, 608, 654 Model 167 Model 217, 218, 219, 220, 221, 222, 223, 230, 231, 238, 240, 242, 246, 251, 257, 290, 292 Model 245 with engine 266, 640 Model 253 with engine 177, 264, 274, 276, 642, 651, 654, 656 Model 415 with engine 200, 607, 608 Model 447 with engine 274, 622, 651, 654.9 Model 448, 470, 471, 636 Model 461, 463 with engine 612 Model 461, 463 with engine 642 Model 463 with engine 112, 113, 157, 264, 273, 279, 628 Model 463 with engine 176, 177, 656 as of model year 2019 Model 463 with engine 176 up to model year 2019 Model 639 with engine 112, 272, 642, 646, 651 Model 900, 906, 907, 909 Model 910 with engine 651, 780.703
Shown on model 166, 204, 207, 212, 218, 290.688, 292 When the engine is cold, the coolant level must be level with the marking (arrow) in the coolant expansion reservoir (1). When coolant is warm: Approx. 1 cm above this mark(arrow).
P20.30-2268-10
Shown on model 117, 156, 167, 176, 177, 197, 213, 223, 238, 242, 246, 257, 290.65/66, 290.689 When the engine is cold, the coolant level must reach up to the upper edge of the web (arrow) in the coolant expansion reservoir (1). When coolant is warm: Approx. 1 cm above the upper edge of the web(arrow).
P20.30-2369-10
Shown on model 168 with engine 668 When the engine is cold, the engine coolant level must reach up to the marking "MIN" at the coolant expansion reservoir. The marking on the coolant expansion reservoir is stamped in as of approx. 6.99.
P20.30-2067-01
Shown on model 203 with engine 112 The coolant level on a cold engine must reach up to the marking (arrow) on the coolant expansion reservoir. When coolant is warm: coolant level approx. 1 cm over this mark.
P20.00-2059-01

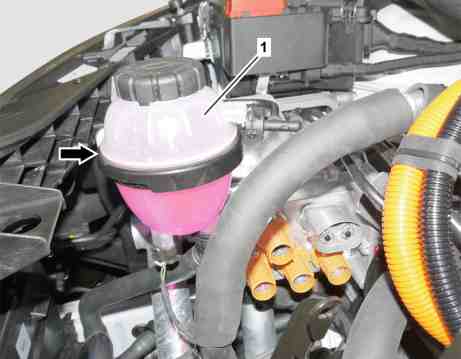

Shown on model 447 with engine 780.701, main circuit When the coolant is cold, the coolant level must reach up to the marking (arrow) on the coolant expansion reservoir (1). When the electric motor is at operating temperature, the coolant level must be slightly above the marking (arrow) on the coolant expansion reservoir (1).
S20.00-A011-81

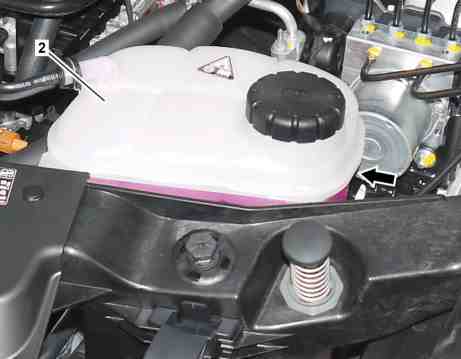

Shown on model 447 with engine 780.701, auxiliary circuit When the coolant is cold, the coolant level must reach up to the marking (arrow) on the coolant expansion reservoir (2). When the coolant is at operating temperature, the coolant level must be slightly above the marking (arrow) on the coolant expansion reservoir (2).
