1 | Silicate cartridge |
B20.00-0075-11
| Remove/install | ||
Warning | Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90 °C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. | |
Topical note | Notes on avoiding damage through contamination and foreign objects | ||
Notes on coolant | |||
1 | Open the engine compartment | ||
2 | Drain the coolant | ||

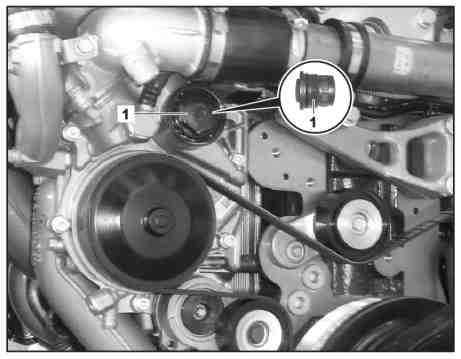

3 | Clean the coolant pump in the area of the silicate cartridge (1) | ||
4 | Remove the silicate cartridge (1) | Clean the sealing surface coolant pump housing with a lint-free cloth. Do not grease the O-Ring in the silicate cartridge (1). | |
Silica gel cartridge in the coolant pump | |||
5 | Install in reverse order | ||
| Check | ||
Warning | Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | |
6 | Check the leak-tightness with engine running | ||
7 | Stop the engine |
