Replace fuel filter

Typ ap · Thema 47.20 · Version 0200 · 2016-02-12

Gültig für: Cumbustion engine 457.9 with Vehicle 382.### #D, 634.### #D, 695.### #D, 696.### #D

Nicht verfügbar in „de“; angezeigt wird Englisch.

Einordnung

Funktionsgruppe 1 Motor › 47 Kraftstoffanlage, Energieversorgung Antriebsstrang › 47.20 Kraftstoffpumpe, Filter — Baureihe 382 · Baureihe 634 · Baureihe 695 · Baureihe 696

EinPAS 16 Kraftstoff-/Energieversorgung Motor › 16.10 Kraftstoffversorgung › 16.10.41 Filter/Wasserabscheider — Baureihe 382 · Baureihe 634 · Baureihe 695 · Baureihe 696

Gilt auch für Motoren/Getriebe: 457 9**

AP47.20-B-0780D

Replace fuel filter

12.02.16

Cumbustion engine 457.9 with Vehicle 382.### #D, 634.### #D, 695.### #D, 696.### #D

Replace fuel filter
Replace fuel filter

B07.00-0011-01

B07.00-0036-01

Engine 457.922

1 Filter cap

2 Sealing ring

3 Fuel filtering element

Engine 457.931

1 Filter cap

2 Sealing ring

3 Fuel filtering element

Replace fuel filter

B07.00-0026-11

Engine 457.925

1 Filter cap

2 Sealing ring

3 Filtering element

Replace fuel filter

B00.00-0021-01

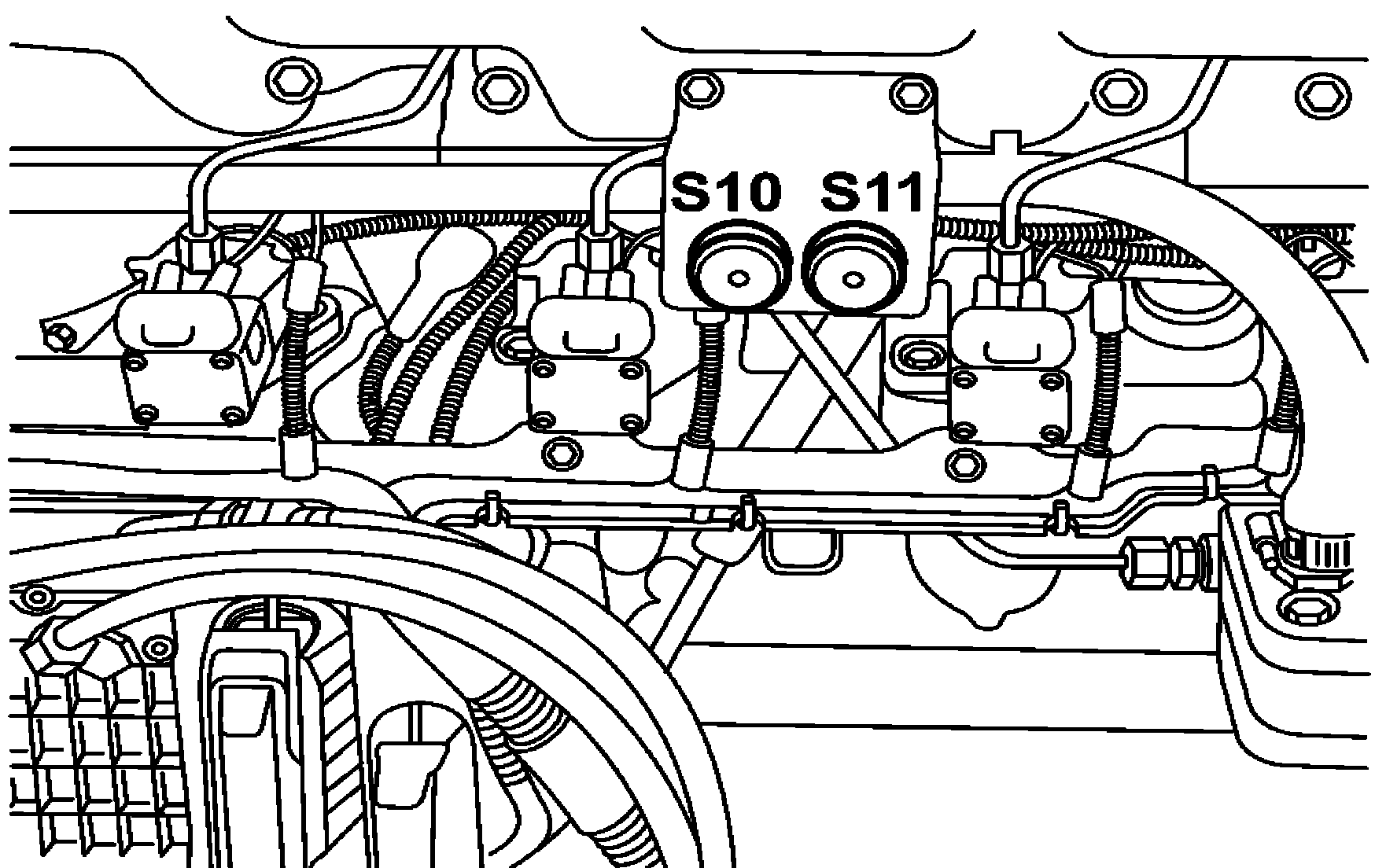

Engine with stopping and starting switch

S10 Starter switch

S11 Stop switch

Remove

Danger!

Risk of explosion by ignition, risk of poisoning by inhaling or swallowing fuel and risk of injuries by skin and eye contact

It is not allowed to smoke, to start fires, sparks, open flames. Only store fuel in appropriate and duly identified containers. When handling fuel, use appropriate protective equipment and clothes.

AS47.00-B-0001-01A

1

Externally clean the fuel filter housing

2

Open the fuel reservoir cap and close it next

Necessary to relief the pressure of the fuel system.

3

Unscrew and remove the fuel filter cover (1)

Utilize a 36 mm hex socket wrench, with a rag between the wrench and the hex to avoid cover damage. Do not let dirt get into the filter housing.

4

Remove the filtering element (3)

Lift the filtering element (3) from its lodging only enough to allow the fuel to flow from the housing. Next, remove and discard the filtering element (3).

Do not clean the inner part of the housing.

Installing

5

Install the sealing ring (2) in the filter cover (1)

Renew the sealing ring (2). Lubricate beforehand the new ring with a thin film of engine oil.

6

Install the filtering element (3) in the filter housing

Renew the filtering element (3). Lubricate the base of the new element (3) with a thin engine oil film and turn it to ensure the correct seating in the base of the housing.

7

Fill the housing of the filtering element (3) with clean fuel

If the fuel does not remain in the lodging, repeat steps 7 and 8.

8

Install the filter cover (1)

Utilize a 36 mm hex socket wrench, with a rag between the wrench and the hex to avoid cover damage.

*BA47.20-B-1007-02C

9

Bleed the fuel system

For engines with manual pump

AP47.00-B-1720-01D

For engines with pump in the water separator

AP47.00-B-1720-01C

Danger!

Risk of accidents due to vehicle unintentional move when the engine is started. Risk of injuries by pinching or burns when intervening during engine cranking or when the vehicle is moving

Secure the vehicle against unintentional rolling. Utilize close fitting and closed work clothing. Do not touch heated or running parts.

AS00.00-B-0005-01A

10

Start the engine and check the tightness of the fuel system

Do not run the starter continuously for more than 30 seconds. Should the engine not start within this interval, wait for approximately 1 minute to crank it again.

For engines with a switch at the engine, start the engine through the S 10 switch.

11

Shut down the engine

For engines with a switch at the engine, stop the engine through the S 11 switch.

Fuel filter

Número

Denominação

Engine 457.9

BA47.20-B-1007-02C

Cap of the fuel filter to the housing

Nm

25
