Overview of system components, telematics · gf8285p9999ce · Mercedes-Benz WIS

GF82.85-P-9999CE

Overview of system components, telematics

23.07.2014

MODEL	204.0/2
	as of model year 2009
MODEL	204.3/9

Overview of system components, telematics

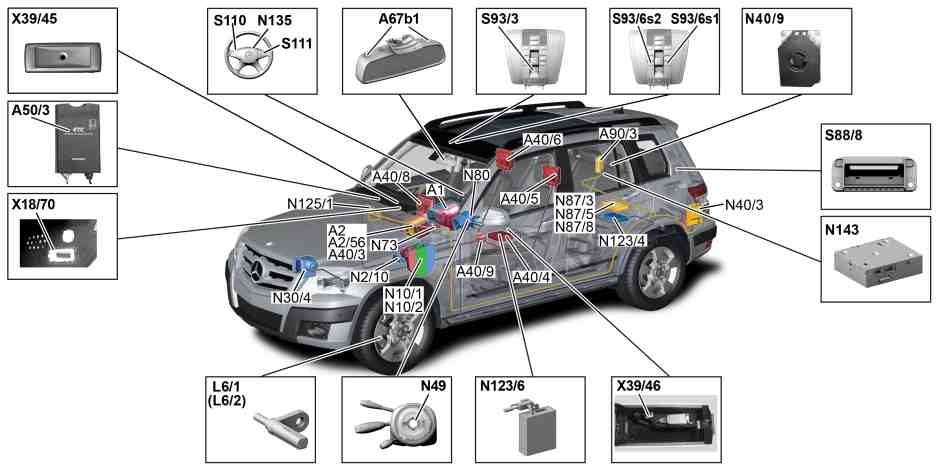

P82.87-9454-79

Model 204.0 as of 01.03.2011, except telematics antenna system and speaker system

A1	Instrument cluster	N40/3	Sound system amplifier control unit (with CODE 810 (Sound system))	S88/8	External operation switch for trunk lid (with CODE 359 (TELEAID emergency call system))
A2	Radio (with CODE 523 (MB Audio 20 radio) or CODE 510 (Audio 20 with CD changer))	N51/5	Adaptive damping system control unit (with CODE 483 (ADVANCED AGILITY package))	S93/3	Emergency call system button (with CODE 348 (Emergency call/assist system) or CODE 359 (TELEAID emergency call system))
A2/30-1	Cradle for navigation module (with CODE 508 (Navigation box preinstallation) or CODE 509 (Navigation box))	N70	Overhead control panel control unit (with CODE 414 (Power glass tilting/sliding roof))	S93/6s1	MB-Info button (with CODE 348 (Emergency call/assist system) or CODE 359 (TELEAID emergency call system))
A34/15	Mobile phone cradle (accessories)	N70/3	Overhead control panel electronics (except CODE 414 (Power glass tilting/sliding roof))	S93/6s2	Breakdown assistance button (with CODE 348 (Emergency call/assist system) or CODE 359 (TELEAID emergency call system))
A40/3	COMAND controller unit (with CODE 527 (COMAND APS with single DVD drive (with navigation)) or CODE 512 (COMAND APS with DVD changer))	N72/1	Upper control panel control unit	S110	Left multifunction steering wheel button group
A40/8	Audio/COMAND display	N72/1s48	AMG button (model 204.077/277/377)	S110s4	"Back" and voice control system OFF button
A40/9	Audio/COMAND control panel	N73	Electronic ignition switch control unit	S111	Right multifunction steering wheel button group
A50/3	Electronic Toll Collection control unit (with CODE 498 (Japan version), dealer option, up to 31.05.2012)	N80	Steering column module control unit	S111s4	Voice control system ON button
A50/6	Dedicated Short-Range Communications control unit (with CODE 498 (Japan version), dealer option, as of 01.06.2012)	N87/3	Digital Audio Broadcasting control unit (with CODE 537 (Digital radio))	X18/70	Electrical connector for Media Interface (with CODE 518 (Media Interface))
A67b1	Hands-free system microphone	N87/5	Satellite digital audio radio (SDAR) control unit (with CODE 536 (SIRIUS satellite radio))	X39/45	AUX connection electrical connector (except CODE 518 (Media Interface), up to 31.05.2013)
A90/3	Digital TV tuner (with CODE 865 (TV tuner))	N112/2	Telematics services communications module (with CODE B54 (COM module))	X39/74	AMG Performance Media electrical connector (with CODE 255 (AMG Performance Media))
N2/10	Supplemental restraint system control unit	N123/4	Emergency call system control unit (with CODE 348 (Emergency call/ Assist system) or CODE 359 (TELEAID emergency call system))	X115	USB electrical connector
N3/10	ME-SFI [ME] control unit	N125/1	Media interface control unit (with CODE 518 (Media Interface))	X237/1	Mobile phone contact plate (with CODE 386 (Mobile phone), as of 01.06.2013)
N10/1	Front SAM control unit with fuse and relay module	N125/3	AMG Performance Media control unit (with CODE 255 (AMG Performance Media))	Y3/8n4	Fully integrated transmission control unit
N10/2	Rear SAM control unit with fuse and relay module	N135	Steering wheel electronics
N30/4	Electronic Stability Program control unit	N145	Transmission mode control unit (model 204.077/277/377)

P82.87-6736-79

Model 204.0 up to 28.02.2011, except telematics antenna system and speaker system

A1	Instrument cluster	N10/2	Rear SAM control unit with fuse and relay module	N143	TV tuner control unit (with CODE 865 (TV tuner), up to 31.05.2009)
A2	Radio (with CODE 523 (MB Audio 20 radio) or CODE 510 (Audio 20 with CD changer))	N30/4	Electronic Stability Program control unit	S88/8	External operation switch for trunk lid (with CODE 359 (TELEAID emergency call system))
A2/56	Radio with auto pilot system (with CODE 525 (MB Audio 50 APS radio) or CODE 511 (Audio 50 APS with DVD changer))	N40/3	Sound system amplifier control unit (with CODE 810 (Sound system))	S93/3	Emergency call system button (with CODE 359 (TELEAID emergency call system))
A40/3	COMAND controller unit (with CODE 527 (COMAND APS with single DVD drive (with navigation)) or CODE 512 (COMAND APS incl. DVD changer) or CODE 528 (COMAND incl. DVD changer))	N49	Steering angle sensor	S93/6s1	MB-Info button (with CODE 359 (TELEAID emergency call system))
A40/8	Audio/COMAND display	N73	Electronic ignition switch control unit	S93/6s2	Breakdown assistance button (with CODE 359 (TELEAID emergency call system))
A40/9	Audio/COMAND control panel	N80	Steering column module control unit	S110	Left multifunction steering wheel button group
A50/3	Electronic Toll Collection control unit (with CODE 498 (Japan version), dealer option)	N87/3	Digital Audio Broadcasting control unit (with CODE 537 (Digital radio))	S110s4	"Back" and voice control system OFF button
A67b1	Hands-free system microphone	N87/5	Satellite digital audio radio (SDAR) control unit (with CODE 536 (SIRIUS satellite radio), up to 31.05.2009 and as of 01.06.2010)	S111	Right multifunction steering wheel button group
A90/3	Digital TV tuner (with CODE 865 (TV tuner), as of 01.06.2009)	N87/8	SDAR/high definition tuner control unit (with CODE 536 (SIRIUS satellite radio), as of 01.06.2009 up to 31.05.2010)	S111s4	Voice control system ON button
L6/1	Left front axle rpm sensor	N123/4	Emergency call system control unit (with CODE 359 (TELE AID emergency call system))	X18/70	Electrical connector for Media Interface (with CODE 518 (Media Interface))
L6/2	Right front axle rpm sensor	N123/6	Communications control unit (with CODE 498 (Japan version), up to 31.05.2010)	X39/45	AUX connection electrical connector (except CODE 518 (Media Interface), up to 31.05.2013)
N2/10	Supplemental restraint system control unit	N125/1	Media interface control unit (with CODE 518 (Media Interface))	X39/46	Electrical connector for adapter cable, Japan (with CODE 498 (Japan version), up to 31.05.2010)
N10/1	Front SAM control unit with fuse and relay module	N135	Steering wheel electronics

P82.62-3796-79

Model 204.0 as of 01.03.2011, telematics antenna system

A2/5	Global positioning system antenna splitter (with CODE 348 (Emergency call/assist system) or CODE 359 (TELEAID emergency call system) and with CODE 512 (COMAND APS with DVD changer), up to 30.11.2014 or with CODE 527 (COMAND APS with single DVD drive (with navigation), as of 01.12.2014, CODE 508 (Navigation box preinstallation) or CODE 509 (Navigation box))	A2/91	Bluetooth antenna	A34/7	Bluetooth module (with CODE 386 (Mobile phone) up to 31.05.2013)
A2/18	FM, AM and CL [ZV] antenna amplifier	A2/94	ETC/DSRC antenna (with CODE 498 (Japan version), as of 01.06.2012, dealer option)	A34/15	Mobile phone cradle (accessories)
A2/19	Rear window antenna FM antenna amplifier	A2/98	FM/TMC antenna splitter (with CODE 508 (Navigation box preinstallation) or CODE 509 (Navigation box))	A94/1	TV 1 and DAB Band III antenna amplifier (with CODE 537 (Digital radio) or CODE 865 (TV tuner))
A2/37	VICS control unit (with CODE 498 (Japan version), Dealer Option)	A28/3	Cellular telephone system antenna amplifier/compensator (with CODE 386 (Mobile phone) and CODE 228 (Stationary heater))	A94/2	TV 2 and KEYLESS-GO antenna amplifier (with CODE 865 (TV tuner))
A2/52	Emergency call system antenna (with CODE 348 (Emergency call/assist system), CODE 359 (TELEAID emergency call system) or CODE B54 (COM module))	A28/11	Multifunction antenna (with CODE 348 (Emergency call/assist system), CODE 359 (TELEAID emergency call system), CODE 386 (Mobile phone), CODE 508 (Navigation box preinstallation), CODE 509 (Navigation box), CODE 512 (COMAND APS with DVD changer), CODE 527 (COMAND APS with single DVD drive (with navigation)) or CODE 536 (SIRIUS satellite radio))	A94/3	TV 3 antenna amplifier (with CODE 865 (TV tuner))
A2/53	Mobile phone and stationary heater radio remote control antenna splitter (with CODE 386 (Mobile phone) and CODE 228 (Stationary heater))	A34/1	Telephone module with Bluetooth® (SAP profile) (with CODE 379 (Telephone module with Bluetooth SAP))

P82.87-6737-79

Model 204.0 up to 28.02.2011, telematics antenna system

A2/5	Global positioning system antenna splitter (with CODE 359 (TELEAID emergency call system) and CODE 512 (COMAND APS with DVD changer))	A2/91	Bluetooth antenna	A94/1	TV 1 and DAB Band III antenna amplifier (with CODE 537 (Digital radio) or CODE 865 (TV tuner))
A2/18	FM, AM and CL [ZV] antenna amplifier	A2/94	ETC/DSRC antenna (with CODE 498 (Japan version))	A94/2	TV 2 and KEYLESS-GO antenna amplifier (with CODE 865 (TV tuner))
A2/19	Rear window antenna FM antenna amplifier	A28/3	Cellular telephone system antenna amplifier/compensator (with CODE 386 (Mobile phone) and CODE 228 (Stationary heater))	A94/3	TV 3 antenna amplifier (with CODE 865 (TV tuner))
A2/37	VICS control unit (with CODE 498 (Japan version), Dealer Option)	A28/11	Multifunction antenna (with CODE 386 (Mobile phone), CODE 359 (TELEAID emergency call system), CODE 512 (COMAND APS with DVD changer), CODE 527 (COMAND APS with single DVD drive (with navigation)), CODE 536 (SIRIUS satellite radio) or CODE 537 (Digital radio) up to 30.11.2010)	N96	Frequency switchover control unit (with CODE 359 (TELEAID emergency call system) and CODE 389 (Mobile phone preinstallation with universal interface for USA/Canada))
A2/52	Emergency call system antenna (with CODE 359 (TELEAID emergency call system))	A34/7	Bluetooth module (with CODE 386 (Mobile phone))
A2/53	Mobile phone and stationary heater radio remote control antenna splitter (with CODE 386 (Mobile phone) and CODE 228 (Stationary heater))	A34/15	Mobile phone cradle (accessories)

Model 204.0, speaker system

H4/1h1	Left front door tweeter
H4/1h2	Left front door bass speaker
H4/2h1	Right front door tweeter
H4/2h2	Right front door bass speaker
H4/3	Left rear door speaker
H4/4	Right rear door speaker
H4/27	Center instrument panel speaker (with CODE 810 (Sound system), CODE 348 (Emergency call/assist system) or CODE 359 (TELEAID emergency call system))
H4/29	Bass speaker (with CODE 810 (Sound system))
H4/54	Left rear surround speaker (with CODE 810 (Sound system))
H4/57	Right rear surround speaker (with CODE 810 (Sound system))

P82.62-3284-06

P82.87-9500-79

Model 204.2 as of 01.03.2011, except telematics antenna system and speaker system

A1	Instrument cluster	N30/4	Electronic Stability Program control unit	N135	Steering wheel electronics
A2	Radio (with CODE 523 (MB Audio 20 radio) or CODE 510 (Audio 20 with CD changer))	N40/3	Sound system amplifier control unit (with CODE 810 (Sound system))	N145	Transmission mode control unit (model 204.077/277/377)
A2/30-1	Cradle for navigation module (with CODE 508 (Navigation box preinstallation) or CODE 509 (Navigation box))	N49	Steering angle sensor	S110	Left multifunction steering wheel button group
A34/15	Mobile phone cradle (accessories)	N51/5	Adaptive damping system control unit (with CODE 483 (ADVANCED AGILITY package))	S110s4	"Back" and voice control system OFF button
A40/3	COMAND controller unit (with CODE 527 (COMAND APS with single DVD drive (with navigation)) or CODE 512 (COMAND APS with DVD changer))	N70	Overhead control panel control unit (with CODE 414 (Power glass tilting/sliding roof))	S111	Right multifunction steering wheel button group
A40/8	Audio/COMAND display	N70/3	Overhead control panel electronics (except CODE 414 (Power glass tilting/sliding roof))	S111s4	Voice control system ON button
A40/9	Audio/COMAND control panel	N72/1	Upper control panel control unit	X18/70	Electrical connector for Media Interface (with CODE 518 (Media Interface))
A50/3	Electronic Toll Collection control unit (with CODE 498 (Japan version), dealer option)	N72/1s48	AMG button (model 204.077/277/377)	X39/45	AUX connection electrical connector (except CODE 518 (Media Interface), up to 31.05.2013)
A50/6	Dedicated Short-Range Communications control unit (with CODE 498 (Japan version), dealer option, as of 01.06.2012)	N73	Electronic ignition switch control unit	X39/74	AMG Performance Media electrical connector (with CODE 255 (AMG Performance Media))
A67b1	Hands-free system microphone	N80	Steering column module control unit	X115	USB electrical connector
A90/3	Digital TV tuner (with CODE 865 (TV tuner))	N87/3	Digital Audio Broadcasting control unit (with CODE 537 (Digital radio))	X237/1	Mobile phone contact plate (with CODE 386 (Mobile phone), as of 01.06.2013)
N2/10	Supplemental restraint system control unit (as of 01.06.2012 with CODE 527 (COMAND APS with single DVD drive (with navigation)) or CODE 512 (COMAND APS with DVD changer), except CODE 498 (Japan version))	N112/2	Telematics services communications module (with CODE B54 (COM module))	Y3/8n4	Fully integrated transmission control unit
N3/10	ME-SFI [ME] control unit	N125/1	Media interface control unit (with CODE 518 (Media Interface))
N10/1	Front SAM control unit with fuse and relay module	N125/3	AMG Performance Media control unit (with CODE 255 (AMG Performance Media))

P82.87-6930-79

Model 204.2 up to 28.02.2011, except telematics antenna system and speaker system

A1	Instrument cluster	L6/2	Right front axle rpm sensor	N135	Steering wheel electronics
A2	Radio (with CODE 523 (MB Audio 20 radio) or CODE 510 (Audio 20 with CD changer))	N10/1	Front SAM control unit with fuse and relay module	N143	TV tuner control unit (with CODE 498 (Japan version), up to 31.05.2009)
A2/56	Radio with auto pilot system (with CODE 525 (MB Audio 50 APS radio) or with CODE 511 (Audio 50 APS with DVD changer))	N30/4	Electronic Stability Program control unit	S110	Left multifunction steering wheel button group
A40/3	COMAND controller unit (with CODE 527 (COMAND APS with single DVD drive (with navigation)) or CODE 512 (COMAND APS with DVD changer))	N40/3	Sound system amplifier control unit (with CODE 810 (Sound system))	S110s4	"Back" and voice control system OFF button
A40/8	Audio/COMAND display	N49	Steering angle sensor	S111	Right multifunction steering wheel button group
A40/9	Audio/COMAND control panel	N73	Electronic ignition switch control unit	S111s4	Voice control system ON button
A50/3	Electronic Toll Collection control unit (with CODE 498 (Japan version), dealer option)	N80	Steering column module control unit	X18/70	Electrical connector for Media Interface (with CODE 518 (Media Interface))
A67b1	Hands-free system microphone	N87/3	Digital Audio Broadcasting control unit (with CODE 537 (Digital radio))	X39/45	AUX connection electrical connector (except CODE 518 (Media Interface))
A90/3	Digital TV tuner (with CODE 865 (TV tuner), as of 01.06.2009)	N123/6	Communications control unit (with CODE 498 (Japan version), up to 31.05.2010)	X39/46	Electrical connector for adapter cable, Japan (with CODE 498 (Japan version), up to 31.05.2010)
L6/1	Left front axle rpm sensor	N125/1	Media interface control unit (with CODE 518 (Media Interface))

P82.62-3957-79

Model 204.2 as of 01.03.2011, telematics antenna system

A2/19	Rear window antenna FM antenna amplifier	A2/94	ETC/DSRC antenna (with CODE 498 (Japan version), as of 01.06.2012, dealer option)	A34/15	Mobile phone cradle (accessories)
A2/37	VICS control unit (with CODE 498 (Japan version), Dealer Option)	A2/98	FM/TMC antenna splitter (with CODE 508 (Navigation box preinstallation) or CODE 509 (Navigation box))	A94/1	TV 1 antenna amplifier (with CODE 865 (TV tuner))
A2/52	Emergency call system antenna (with CODE B54 (COM module))	A28/3	Cellular telephone system antenna amplifier/compensator (with CODE 386 (Mobile phone) and CODE 228 (Stationary heater))	A94/2	TV 2 antenna amplifier (with CODE 865 (TV tuner))
A2/53	Mobile phone and stationary heater radio remote control antenna splitter (with CODE 386 (Mobile phone) and CODE 228 (Stationary heater))	A28/11	Multifunction antenna (with CODE 386 (Mobile phone), CODE 508 (Navigation box preinstallation), CODE 509 (Navigation box), CODE 512 (COMAND APS with DVD changer) or CODE 527 (COMAND APS with single DVD drive (with navigation)))	A94/3	TV 3 antenna amplifier (with CODE 865 (TV tuner))
A2/71	Rear window antenna amplifier 1	A34/1	Telephone module with Bluetooth® (SAP profile) (with CODE 379 (Telephone module with Bluetooth SAP))	A95/2	DAB Band III antenna amplifier (with CODE 537 (Digital radio))
A2/91	Bluetooth antenna	A34/7	Bluetooth module (with CODE 386 (Mobile phone), up to 31.05.2013)

P82.62-3697-79

Model 204.2 up to 28.02.2011, telematics antenna system

A2/19	Rear window antenna FM antenna amplifier	A2/94	ETC/DSRC antenna (with CODE 498 (Japan version))	A94/1	TV 1 antenna amplifier (with CODE 865 (TV tuner))
A2/37	VICS control unit (with CODE 498 (Japan version), Dealer Option)	A28/3	Cellular telephone system antenna amplifier/compensator (with CODE 386 (Mobile phone) and CODE 228 (Stationary heater))	A94/2	TV 2 antenna amplifier (with CODE 865 (TV tuner))
A2/53	Mobile phone and stationary heater radio remote control antenna splitter (with CODE 386 (Mobile phone) and CODE 228 (Stationary heater))	A28/11	Multifunction antenna (with CODE 386 (Mobile phone), CODE 512 (COMAND APS with DVD changer), CODE 527 (COMAND APS with single DVD drive (with navigation)) or CODE 537 (Digital radio) up to 30.11.2010)	A94/3	TV 3 antenna amplifier (with CODE 865 (TV tuner))
A2/71	Rear window antenna amplifier 1	A34/7	Bluetooth module (with CODE 386 (Mobile phone))	A95/2	DAB Band III antenna amplifier (with CODE 537 (Digital radio))
A2/91	Bluetooth antenna	A34/15	Mobile phone cradle (accessories)

Model 204.2, speaker system

H4/1h1	Left front door tweeter
H4/1h2	Left front door bass speaker
H4/2h1	Right front door tweeter
H4/2h2	Right front door bass speaker
H4/3	Left rear door speaker
H4/4	Right rear door speaker
H4/27	Center instrument panel speaker (with CODE 810 (Sound system))
H4/29	Bass speaker (with CODE 810 (Sound system))
H4/54	Left rear surround speaker (with CODE 810 (Sound system))
H4/57	Right rear surround speaker (with CODE 810 (Sound system))

P82.62-3264-06

P82.87-9469-79

Model 204.3, except telematics antenna system and speaker system

A1	Instrument cluster	N40/3	Sound system amplifier control unit (with CODE 810 (Sound system))	S88/8	External operation switch for trunk lid (with CODE 359 (TELEAID emergency call system))
A2	Radio (with CODE 523 (MB Audio 20 radio) or CODE 510 (Audio 20 with CD changer))	N51/5	Adaptive damping system control unit (with CODE 483 (ADVANCED AGILITY package))	S93/3	Emergency call system button (with CODE 348 (Emergency call/assist system) or CODE359 (TELEAID emergency call system))
A2/30-1	Cradle for navigation module (with CODE 508 (Navigation box preinstallation) or CODE 509 (Navigation box))	N70	Overhead control panel control unit (with CODE 414 (Power glass tilting/sliding roof))	S93/6s1	MB-Info button (with CODE 348 (Emergency call/assist system) or CODE359 (TELEAID emergency call system))
A34/15	Mobile phone cradle (accessories)	N70/3	Overhead control panel electronics (except CODE 414 (Power glass tilting/sliding roof))	S93/6s2	Breakdown assistance button (with CODE 348 (Emergency call/assist system) or CODE359 (TELEAID emergency call system))
A40/3	COMAND controller unit (with CODE 527 (COMAND APS with single DVD drive (with navigation)) or CODE 512 (COMAND APS with DVD changer))	N72/1	Upper control panel control unit	S110	Left multifunction steering wheel button group
A40/8	Audio/COMAND display	N72/1s48	AMG button (model 204.077/277/377)	S110s4	"Back" and voice control system OFF button
A40/9	Audio/COMAND control panel	N73	Electronic ignition switch control unit	S111	Right multifunction steering wheel button group
A50/3	Electronic Toll Collection control unit (with CODE 498 (Japan version), dealer option, up to 31.05.2012)	N80	Steering column module control unit	S111s4	Voice control system ON button
A50/6	Dedicated Short-Range Communications control unit (with CODE 498 (Japan version), dealer option, as of 01.06.2012)	N87/3	Digital Audio Broadcasting control unit (with CODE 537 (Digital radio))	X18/70	Electrical connector for Media Interface (with CODE 518 (Media Interface))
A67b1	Hands-free system microphone	N87/5	Satellite digital audio radio (SDAR) control unit (with CODE 536 (SIRIUS satellite radio))	X39/45	AUX connection electrical connector (except CODE 518 (Media Interface), up to 31.05.2013)
A90/3	Digital TV tuner (with CODE 865 (TV tuner))	N112/2	Telematics services communications module (with CODE B54 (COM module))	X39/74	AMG Performance Media electrical connector (with CODE 255 (AMG Performance Media))
N2/10	Supplemental restraint system control unit	N123/4	Emergency call system control unit (with CODE 348 (Emergency call/assist system) or CODE359 (TELEAID emergency call system))	X115	USB electrical connector
N3/10	ME-SFI [ME] control unit	N125/1	Media interface control unit (with CODE 518 (Media Interface))	X237/1	Mobile phone contact plate (with CODE 386 (Mobile phone), as of 01.06.2013)
N10/1	Front SAM control unit with fuse and relay module	N125/3	AMG Performance Media control unit (with CODE 255 (AMG Performance Media))	Y3/8n4	Fully integrated transmission control unit
N10/2	Rear SAM control unit with fuse and relay module	N135	Steering wheel electronics
N30/4	Electronic Stability Program control unit	N145	Transmission mode control unit (model 204.077/277/377)

P82.62-3797-79

Model 204.3, telematics antenna system

A2/5	Global positioning system antenna splitter (with CODE 348 (Emergency call/assist system) or CODE 359 (TELEAID emergency call system) and with CODE 512 (COMAND APS with DVD changer), up to 30.11.2014 or with CODE 527 (COMAND APS with single DVD drive (with navigation), as of 01.12.2014, CODE 508 (Navigation box preinstallation) or CODE 509 (Navigation box))	A2/91	Bluetooth antenna	A34/7	Bluetooth module (with CODE 386 (Mobile phone) up to 31.05.2013)
A2/18	FM, AM and CL [ZV] antenna amplifier	A2/94	ETC/DSRC antenna (with CODE 498 (Japan version), as of 01.06.2012, dealer option)	A34/15	Mobile phone cradle (accessories)
A2/19	FM 2 and DAB antenna amplifier	A2/98	FM/TMC antenna splitter (with CODE 508 (Navigation box preinstallation) or CODE 509 (Navigation box))	A94/1	TV 1 antenna amplifier (with CODE 865 (TV tuner))
A2/37	VICS control unit (with CODE 498 (Japan version), Dealer Option)	A28/3	Cellular telephone system antenna amplifier/compensator (with CODE 386 (Mobile phone) and CODE 228 (Stationary heater))	A94/2	TV 2 and KEYLESS-GO antenna amplifier (with CODE 865 (TV tuner))
A2/52	Emergency call system antenna (with CODE 348 (Emergency call/assist system) or CODE 359 (TELEAID emergency call system))	A28/11	Multifunction antenna (with CODE 348 (Emergency call/assist system), CODE 359 (TELEAID emergency call system), CODE 386 (Mobile phone), CODE 508 (Navigation box preinstallation), CODE 509 (Navigation box), CODE 512 (COMAND APS with DVD changer), CODE 527 (COMAND APS with single DVD drive (with navigation)) or CODE 536 (SIRIUS satellite radio))	A94/3	TV 3 antenna amplifier (with CODE 865 (TV tuner))
A2/53	Mobile phone and stationary heater radio remote control antenna splitter (with CODE 386 (Mobile phone) and CODE 228 (Stationary heater))	A34/1	Telephone module with Bluetooth® (SAP profile) (with CODE 379 (Telephone module with Bluetooth SAP))

Model 204.3, speaker system

H4/1h1	Left front door tweeter
H4/1h2	Left front door bass speaker
H4/2h1	Right front door tweeter
H4/2h2	Right front door bass speaker
H4/27	Center instrument panel speaker (with CODE 810 (Sound system), CODE 348 (Emergency call/assist system) or CODE 359 (TELEAID emergency call system))
H4/29	Bass speaker (with CODE 810 (Sound system))
H4/54	Left rear surround speaker (with CODE 810 (Sound system))
H4/57	Right rear surround speaker (with CODE 810 (Sound system))

P82.62-3690-06

P82.87-9470-79

Model 204.9 as of 01.06.2012, except telematics antenna system and speaker system

A1	Instrument cluster	N10/1	Front SAM control unit with fuse and relay module	N135	Steering wheel electronics
A2	Radio (with CODE 523 (MB Audio 20 radio) or CODE 510 (Audio 20 with CD changer))	N10/2	Rear SAM control unit with fuse and relay module	S93/3	Emergency call system button (with CODE 348 (Emergency call/assist system))
A2/30-1	Cradle for navigation module (with CODE 508 (Navigation box preinstallation) or CODE 509 (Navigation box))	N30/4	Electronic Stability Program control unit	S93/6s1	MB Info button (with CODE 348 (Emergency call/assist system))
A34/15	Mobile phone cradle (accessories)	N40/3	Sound system amplifier control unit (with CODE 810 (Sound system))	S93/6s2	Breakdown assistance button (with CODE 348 (Emergency call/assist system))
A40/3	COMAND controller unit (with CODE 527 (COMAND APS with single DVD drive (with navigation)) or CODE 512 (COMAND APS with DVD changer))	N40/9	Rear bass speaker amplifier (with CODE 810 (Sound system))	S110	Left multifunction steering wheel button group
A40/8	Audio/COMAND display	N73	Electronic ignition switch control unit	S111	Right multifunction steering wheel button group
A40/9	Audio/COMAND control panel	N80	Steering column module control unit	X18/70	Electrical connector for Media Interface (with CODE 518 (Media Interface))
A50/3	Electronic Toll Collection control unit (with CODE 498 (Japan version), dealer option, up to 31.05.2012)	N87/3	Digital Audio Broadcasting control unit (with CODE 537 (Digital radio))	X39/6	Headphones (cabled) electrical connector (with CODE 867 (SPLITVIEW))
A50/6	Dedicated Short-Range Communications control unit (with CODE 498 (Japan version), dealer option, as of 01.06.2012)	N87/5	Satellite digital audio radio (SDAR) control unit (with CODE 536 (SIRIUS satellite radio))	X39/45	AUX connection electrical connector (except CODE 518 (Media Interface), up to 31.05.2013)
A67b1	Hands-free system microphone	N112/2	Telematics services communications module (with CODE B54 (COM module))	X115	USB electrical connector
A90/3	Digital TV tuner (with CODE 865 (TV tuner))	N123/4	Emergency call system control unit (with code 348 (Emergency call/assist system))	X237/1	Mobile phone contact plate (with CODE 386 (Mobile phone), as of 01.06.2013)
N2/10	Supplemental restraint system control unit	N125/1	Media interface control unit (with CODE 518 (Media Interface))

P82.87-6931-79

Model 204.9 up to 31.05.2012, except telematics antenna system and speaker system

A1	Instrument cluster	N2/10	Supplemental restraint system control unit	N125/1	Media interface control unit (with CODE 518 (Media Interface))
A2	Radio (with CODE 523 (MB Audio 20 radio) or CODE 510 (Audio 20 with CD changer))	N10/1	Front SAM control unit with fuse and relay module	N135	Steering wheel electronics
A2/56	Radio with auto pilot system (with CODE 525 (MB Audio 50 APS radio) or CODE 511 (Audio 50 APS with DVD changer))	N10/2	Rear SAM control unit with fuse and relay module	N143	TV tuner control unit (with CODE 865 (TV tuner), up to 31.05.2009)
A40/3	COMAND controller unit (with CODE 527 (COMAND APS with single DVD drive (with navigation)) or CODE 512 (COMAND APS incl. DVD changer) or CODE 528 (COMAND incl. DVD changer))	N30/4	Electronic Stability Program control unit	S88/8	Liftgate external operation switch (with CODE 359 (TELEAID emergency call system))
A40/4	DVD player (with CODE 864 (Rear entertainment system))	N40/3	Sound system amplifier control unit (with CODE 810 (Sound system))	S93/3	Emergency call system button (with CODE 359 (TELEAID emergency call system))
A40/5	Left rear display (with CODE 864 (Rear entertainment system))	N40/9	Rear bass speaker amplifier (with CODE 810 (Sound system))	S93/6s1	MB-Info button (with CODE 359 (TELEAID emergency call system))
A40/6	Right rear display (with CODE 864 (Rear entertainment system))	N49	Steering angle sensor	S93/6s2	Breakdown assistance button (with CODE 359 (TELEAID emergency call system))
A40/8	Audio/COMAND display	N73	Electronic ignition switch control unit	S110	Left multifunction steering wheel button group
A40/9	Audio/COMAND control panel	N80	Steering column module control unit	S111	Right multifunction steering wheel button group
A50/3	Electronic Toll Collection control unit (with CODE 498 (Japan version), dealer option)	N87/3	Digital Audio Broadcasting control unit (with CODE 537 (Digital radio))	X18/70	Electrical connector for Media Interface (with CODE 518 (Media Interface))
A67b1	Hands-free system microphone	N87/5	Satellite Digital Audio Radio (SDAR) control unit (with CODE 536 (SIRIUS satellite radio), up to 31.05.2009 and as of 01.06.2010)	X39/45	AUX connection electrical connector (except CODE 518 (Media Interface))
A90/3	Digital TV tuner (with CODE 865 (TV tuner), as of 01.06.2009)	N87/8	SDAR/high definition tuner control unit (with CODE 536 (SIRIUS satellite radio), as of 01.06.2009 up to 31.05.2010)	X39/46	Electrical connector for adapter cable, Japan (with CODE 498 (Japan version), up to 31.05.2010)
L6/1	Left front axle rpm sensor	N123/4	Emergency call system control unit (with CODE 359 (TELE AID emergency call system))
L6/2	Right front axle rpm sensor	N123/6	Communications control unit (with CODE 498 (Japan version), up to 31.05.2010)

P82.62-3869-79

Model 204.9 as of 01.06.2012, telematics antenna system

A2/5	Global positioning system antenna splitter (with CODE 348 (Emergency call/assist system) and with CODE 512 (COMAND APS with DVD changer), up to 30.11.2014 or with CODE 527 (COMAND APS with single DVD drive (with navigation), as of 01.12.2014, CODE 508 (Navigation box preinstallation) or CODE 509 (Navigation box))	A2/89	TV antenna splitter (with CODE 537 (Digital radio) and CODE 865 (TV tuner))	A34/7	Bluetooth module (with CODE 386 (Mobile phone), up to 31.05.2013)
A2/19	Antenna amplifier for rear window FM antenna (except CODE 537 (Digital radio) and except CODE 865 (TV tuner))	A2/91	Bluetooth antenna	A34/15	Mobile phone cradle (accessories)
A2/37	VICS control unit (with CODE 498 (Japan version), Dealer Option)	A2/94	ETC/DSRC antenna (with CODE 498 (Japan version), dealer option)	A94/1	FM 2, DAB, and TV 1 antenna amplifier (with CODE 537 (Digital radio) or CODE 865 (TV tuner))
A2/51	Rear spoiler antenna	A2/98	FM/TMC antenna splitter (with CODE 508 (Navigation box preinstallation) or with CODE 509 (Navigation box))	A94/2	TV 2 antenna amplifier (with CODE 865 (TV tuner))
A2/52	Emergency call system antenna (with CODE 348 (Emergency call/assist system))	A28/3	Cellular telephone system antenna amplifier/compensator (with CODE 386 (Mobile phone) and CODE 228 (Stationary heater))	A94/3	TV 3 antenna amplifier (with CODE 865 (TV tuner))
A2/53	Mobile phone and stationary heater radio remote control antenna splitter (with CODE 386 (Mobile phone) and CODE 228 (Stationary heater))	A28/11	Multifunction antenna (with CODE 348 (Emergency call/assist system), CODE 386 (Mobile phone), CODE 508 (Navigation box preinstallation), CODE 509 (Navigation box), CODE 512 (COMAND APS with DVD changer), CODE 527 (COMAND APS with single DVD drive (with navigation)) or CODE 536 (SIRIUS satellite radio))
A2/71	Rear window antenna amplifier 1	A34/1	Telephone module with Bluetooth® (SAP profile) (with CODE 379 (Telephone module with Bluetooth SAP))

P82.62-3705-79

Model 204.9 up to 31.05.2012, telematics antenna system

A2/5	Global positioning system antenna splitter (with CODE 359 (TELEAID emergency call system) and CODE 512 (COMAND APS with DVD changer))	A2/71	Rear window antenna amplifier 1	A34/15	Mobile phone cradle (accessories)
A2/19	Antenna amplifier for rear window FM antenna (except CODE 537 (Digital radio) and except CODE 865 (TV tuner))	A2/91	Bluetooth antenna	A94/1	FM 2, DAB, and TV 1 antenna amplifier (with CODE 537 (Digital radio) or CODE 865 (TV tuner))
A2/37	VICS control unit (with CODE 498 (Japan version), Dealer Option)	A2/94	ETC/DSRC antenna (with CODE 498 (Japan version))	A94/2	TV 2 antenna amplifier (with CODE 865 (TV tuner))
A2/51	Rear spoiler antenna	A28/3	Cellular telephone system antenna amplifier/compensator (with CODE 386 (Mobile phone) and CODE 228 (Stationary heater))	A94/3	TV 3 antenna amplifier (with CODE 865 (TV tuner))
A2/52	Emergency call system antenna (with CODE 359 (TELEAID emergency call system))	A28/11	Multifunction antenna (with CODE 386 (Mobile phone), CODE 359 (TELEAID emergency call system), CODE 512 (COMAND APS with DVD changer), CODE 527 (COMAND APS with single DVD drive (with navigation)), CODE 536 (SIRIUS satellite radio) or CODE 537 (Digital radio) up to 30.11.2010)	N96	Frequency switchover control unit (with CODE 359 (TELEAID emergency call system) and CODE 389 (Mobile phone preinstallation with universal interface for USA/Canada))
A2/53	Mobile phone and stationary heater radio remote control antenna splitter (with CODE 386 (Mobile phone) and CODE 228 (Stationary heater))	A34/7	Bluetooth module (with CODE 386 (Mobile phone))

Model 204.9, speaker system

H4/1h1	Left front door tweeter
H4/1h2	Left front door bass speaker
H4/2h1	Right front door tweeter
H4/2h2	Right front door bass speaker
H4/3	Left rear door speaker
H4/4	Right rear door speaker
H4/27	Center instrument panel speaker (with CODE 810 (Sound system), CODE 348 (Emergency call/assist system) or CODE 359 (TELEAID emergency call system))
H4/38	Rear bass speaker (with CODE 810 (Sound system))
H4/54	Left rear surround speaker (with CODE 810 (Sound system))
H4/57	Right rear surround speaker (with CODE 810 (Sound system))

P82.62-3265-06

Component description for ME-SFI (ME) control unit	MODEL 204.0/2 with ENGINE 156.9 as of model year 2009 MODEL 204.3 with ENGINE 156.9 N3/10	GF07.61-P-6000MAW
Component description for transmission mode control unit	MODEL 204.0/2 with TRANSMISSION 722.930 as of model year 2009 MODEL 204.3 with TRANSMISSION 722.930 N145	GF27.19-P-1350AHV
Component description for fully integrated transmission control unit	MODEL 204.0/2 with TRANSMISSION 722.930 as of model year 2009 MODEL 204.3 with TRANSMISSION 722.930 Y38n4	GF27.60-P-5165AHV
Component description for adaptive damping system control unit	MODEL 204.0/2 as of model year 2009 with CODE 483 (ADVANCED AGILITY package) MODEL 204.3 with CODE 483 (ADVANCED AGILITY package) N51/5	GF32.32-P-1010CE
Component description for Electronic Stability Program control unit	N30/4	GF42.45-P-5119CE
Component description for Audio/COMAND control panel	A40/9	GF54.21-P-4501CE
Component description for rear SAM control unit with fuse and relay module	N10/2	GF54.21-P-6030CE
Upper control panel control unit, component description	N72/1, N72/1s48	GF54.21-P-6040CE
Component description for steering column tube module control unit	N80	GF54.21-P-6051CE
Component description for front SAM control unit with fuse and relay module	N10/1	GF54.21-P-6070CE
Component description for instrument cluster	A1	GF54.30-P-6000CE
Component description for Audio/COMAND display	A40/8	GF54.30-P-6150CE
Component description for the electronic ignition lock control unit	N73	GF80.57-P-6001CE
Component description for overhead control panel control unit	MODEL 204 as of model year 2009 with CODE 414 (Electric sunroof, glass version) S93/3, S93/6s1, S93/6s2, N70	GF82.20-P-5216CE
Component description for electronic overhead control panel	MODEL 204 as of model year 2009 without CODE 414 (Electric sunroof, glass version) S93/3, S93/6s1, S93/6s2, N70/3	GF82.20-P-5217CE
Digital TV tuner, component description	MODEL 204.9 as of model year 2013 with CODE 865 (TV tuner) A90/3	GF82.60-P-3118CE
	MODEL 204.0/2 as of model year 2010 with CODE 498 (Japanese version) MODEL 204.3 with CODE 498 (Japanese version) MODEL 204.9 as of model year 2010 up to model year 2013 with CODE 498 (Japanese version) A90/3	GF82.60-P-3118CEJ
Component description for the radio	MODEL 204.0/2 as of model year 2012 with CODE 510 (Audio 20 with CD changer) without CODE 523 (MB Audio 20 radio) MODEL 204.0/2 as of model year 2012 with CODE 523 (MB Audio 20 radio) without CODE 510 (Audio 20 with CD changer) MODEL 204.3 with CODE 510 (Audio 20 with CD changer) MODEL 204.3 with CODE 523 (MB Audio 20 radio) MODEL 204.9 as of model year 2013 with CODE 510 (Audio 20 with CD changer) without CODE 523 (MB Audio 20 radio) MODEL 204.9 as of model year 2013 with CODE 523 (MB Audio 20 radio) without CODE 510 (Audio 20 with CD changer) A2	GF82.60-P-3122CEA
	MODEL 204.0/2 as of model year 2009 up to model year 2012 with CODE 510 (Audio 20 with CD changer) without CODE 523 (MB Audio 20 radio) MODEL 204.0/2 as of model year 2009 up to model year 2012 with CODE 523 (MB Audio 20 radio) without CODE 510 (Audio 20 with CD changer) MODEL 204.9 up to model year 2013 with CODE 510 (Audio 20 with CD changer) without CODE 523 (MB Audio 20 radio) MODEL 204.9 up to model year 2013 with CODE 523 (MB Audio 20 radio) without CODE 510 (Audio 20 with CD changer) A2	GF82.60-P-3122CEB
Component description for media interface control unit	MODEL 204 as of model year 2013 with CODE 518 (Media interface) N125/1	GF82.60-P-5000CEA
	MODEL 204.0/2 as of model year 2009 up to model year 2013 with CODE 518 (Media interface) MODEL 204.3/9 up to model year 2013 with CODE 518 (Media interface) N125/1	GF82.60-P-5000CE
AMG performance media control unit, component description	MODEL 204.0/2 as of model year 2013 with CODE 255 (AMG Performance Media) MODEL 204.3 with CODE 255 (AMG Performance Media) N125/3	GF82.60-P-5010CE
Component description for radio with auto pilot system	MODEL 204.0/2 as of model year 2009 with CODE 511 (Audio 50 APS with DVD changer) MODEL 204.0/2 as of model year 2009 with CODE 525 (MB Audio 50 APS radio) MODEL 204.9 with CODE 511 (Audio 50 APS with DVD changer) MODEL 204.9 with CODE 525 (MB Audio 50 APS radio) A2/56	GF82.61-P-4112CE
Component description for Digital Audio Broadcasting control unit	MODEL 204.0/2 as of model year 2009 with CODE 537 (Digital radio) MODEL 204.3 with CODE 537 (Digital radio) MODEL 204.9 as of model year 2010 with CODE 537 (Digital radio) N87/3	GF82.62-P-5000CE
Component description for sound system amplifier control unit	MODEL 204.0/2 as of model year 2009 with CODE 810 (Sound system) MODEL 204.3/9 with CODE 810 (Sound system) N40/3	GF82.62-P-5010CE
Telematics services communications module, component description	MODEL 204.0/2 as of model year 2014 with CODE B54 (COM module) MODEL 204.3/9 with CODE B54 (COM module) N112/2	GF82.85-P-0220CE
Satellite digital audio radio (SDAR) control unit, component description	MODEL 204.0/9 as of model year 2010 up to model year 2011 with CODE 536 (SIRIUS satellite radio) without CODE 512 (COMAND APS with DVD changer) without CODE 528 (COMAND with DVD changer) MODEL 204.0/9 as of model year 2011 with CODE 536 (SIRIUS satellite radio) MODEL 204.0 as of model year 2009 up to model year 2010 with CODE 536 (SIRIUS satellite radio) MODEL 204.9 up to model year 2010 with CODE 536 (SIRIUS satellite radio) N87/5	GF82.85-P-3121CEU
SDAR tuner/high definition tuner control unit, component description	MODEL 204.0/9 as of model year 2010 up to model year 2011 with CODE 512 (COMAND APS with DVD changer) with CODE 536 (SIRIUS satellite radio) MODEL 204.0/9 as of model year 2010 up to model year 2011 with CODE 528 (COMAND with DVD changer) with CODE 536 (SIRIUS satellite radio) N87/8	GF82.85-P-3122CE
Component description for COMAND controller unit	MODEL 204.0/2 as of model year 2012 with CODE 512 (COMAND APS with DVD changer) without CODE 527 (COMAND APS with single DVD drive (with navigation)) MODEL 204.0/2 as of model year 2012 with CODE 527 (COMAND APS with single DVD drive (with navigation)) without CODE 512 (COMAND APS with DVD changer) MODEL 204.9 as of model year 2013 with CODE 512 (COMAND APS with DVD changer) without CODE 527 (COMAND APS with single DVD drive (with navigation)) MODEL 204.9 as of model year 2013 with CODE 527 (COMAND APS with single DVD drive (with navigation)) without CODE 512 (COMAND APS with DVD changer) A40/3	GF82.85-P-3136CEA
	MODEL 204.0/2 as of model year 2009 up to model year 2012 with CODE 512 (COMAND APS with DVD changer) MODEL 204.0/2 as of model year 2009 up to model year 2012 with CODE 527 (COMAND APS with single DVD drive (with navigation)) without CODE 498 (Japanese version) MODEL 204.0 as of model year 2009 up to model year 2012 with CODE 528 (COMAND with DVD changer) MODEL 204.9 up to model year 2013 with CODE 512 (COMAND APS with DVD changer) MODEL 204.9 up to model year 2013 with CODE 527 (COMAND APS with single DVD drive (with navigation)) without CODE 498 (Japanese version) MODEL 204.9 up to model year 2013 with CODE 528 (COMAND with DVD changer) A40/3	GF82.85-P-3136CE
	MODEL 204.0/2 as of model year 2009 up to model year 2012 with CODE 498 (Japanese version) with CODE 527 (COMAND APS with single DVD drive (with navigation)) MODEL 204.9 up to model year 2013 with CODE 498 (Japanese version) with CODE 527 (COMAND APS with single DVD drive (with navigation)) A40/3	GF82.85-P-3136CEJ
Cradle for navigation module, component description	MODEL 204 as of model year 2012 with CODE 508 (Navigation box preinstallation) MODEL 204 as of model year 2012 with CODE 509 (Navigation box) A2/30-1	GF82.85-P-3137CE
Component description for rear entertainment DVD player	MODEL 204.9 with CODE 864 (Rear entertainment system) A40/4	GF82.90-P-4009GD
Component description for rear display left/right	MODEL 204.9 with CODE 864 (Rear entertainment system) A40/5, A40/6	GF82.90-P-4020GD
Component description for emergency call system control unit	MODEL 204.0 as of model year 2013 with CODE 348 (Emergency call/assistant system) MODEL 204.3/9 with CODE 348 (Emergency call/assistant system) N123/4	GF82.95-P-3212CEV
	MODEL 204.0 as of model year 2009 up to model year 2013 with CODE 359 (TELE AID emergency call system) MODEL 204.3/9 with CODE 359 (TELE AID emergency call system) N123/4	GF82.95-P-3212CEU
Component description for supplemental restraint system control unit	N2/10	GF91.60-P-4068CE
Table of contents for function description, telematics		GF82.85-P-0993CE

Odkazované dokumenty

gf0761p6000maw
gf2719p1350ahv
gf2760p5165ahv
gf3232p1010ce Popis součásti řídicí jednotky adaptivního systému tlumení
gf4245p5119ce Popis součásti řídicí jednotky elektronického stabilizačního systému
gf5421p4501ce Popis součásti ovládací jednotky Audio/COMAND
gf5421p6030ce Popis součásti řídicí jednotky SAM s pojistkovým a reléovým modulem zadní části vozidla
gf5421p6040ce Popis součásti řídicí jednotky horního ovládacího panelu
gf5421p6051ce Popis součásti řídicí jednotky modulu sloupku řízení
gf5421p6070ce Popis součásti řídicí jednotky SAM s pojistkovým a reléovým modulem vpředu
gf5430p6000ce
gf5430p6000cea Popis součásti sdruženého přístroje
gf5430p6000ceb Popis součásti sdruženého přístroje
gf5430p6000cec Popis součásti sdruženého přístroje
gf5430p6150ce Popis součásti displeje Audio/COMAND
gf8057p6001ce Popis součásti řídicí jednotky elektronické spínací skříňky
gf8220p5216ce Popis řídicí jednotky střešní ovládací jednotky
gf8220p5217ce Popis elektroniky střešní ovládací jednotky
gf8260p3118ce
gf8260p3118cej
gf8260p3122cea Popis součásti rádia
gf8260p3122ceb Popis součásti rádia
gf8260p5000ce Popis součásti řídicí jednotky Media Interface
gf8260p5000cea
gf8260p5010ce
gf8261p4112ce Popis součásti rádia se systémem Auto Pilot
gf8262p5000ce Popis součásti řídicí jednotky Digital Audio Broadcasting
gf8262p5010ce Popis součásti řídicí jednotky zesilovače Sound systému
gf8285p0220ce
gf8285p0993ce
gf8285p3121ceu Popis součásti řídicí jednotky Satellite Digital Audio Radio (SDAR)
gf8285p3122ce
gf8285p3136ce Popis součásti řídicí jednotky COMAND
gf8285p3136cea
gf8285p3136cej Popis součásti řídicí jednotky COMAND
gf8285p3137ce
gf8290p4009gd Popis součásti DVD přehrávače zadní multimediální konzoly
gf8290p4020gd Popis součásti displeje v zadní části vozidla vlevo/vpravo
gf8295p3212ceu Popis součásti řídicí jednotky systému tísňového volání
gf8295p3212cev
gf9160p4068ce Popis součásti řídicí jednotky zádržného systému
