P97.20-0209-06
Detachable body components
1 Engine hood
2 Trunk lid
3 Front door-rubber retaining rail
4 Door channel, front door
5 Rear door-rubber retaining rail
6 Door channel, rear door
P97.20-0210-09
Front end
7 Reinforcement windbreak
8 Fork retainer-front wall
9 Spring tower
10 Longitudinal member
11 Cross member

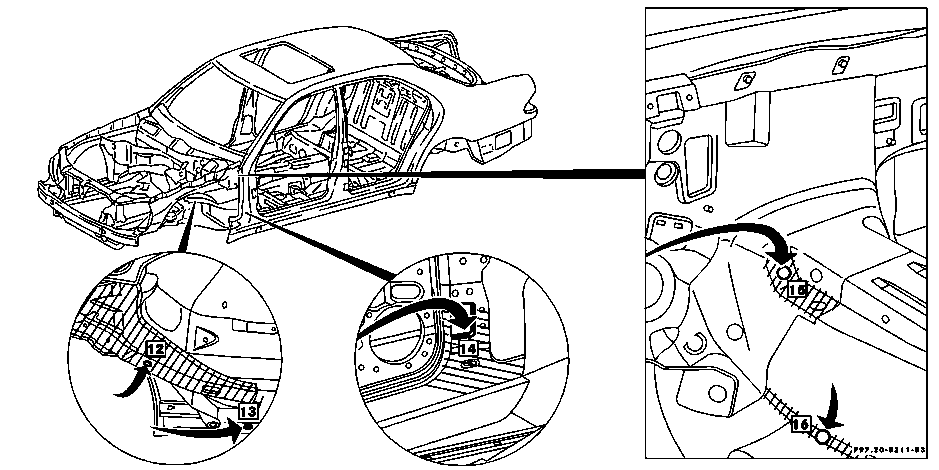

P97.20-0212-09
12 Connecting carrier
13 Mounting
14 A-pillar-longitudinal member, inner
15 Fork retainer tunnel
16 Tunnel reinforcement

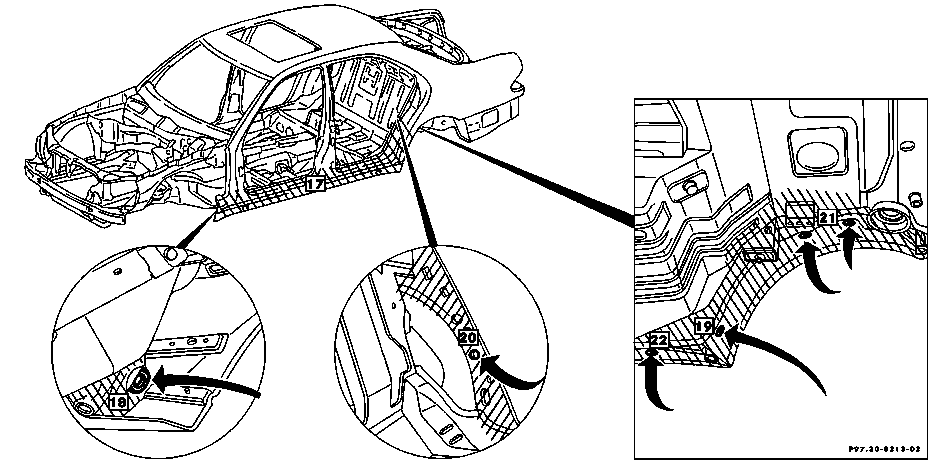

P97.20-0214-09
17 Longitudinal member, outer
18 Longitudinal member, outer front
19 Longitudinal member, outer rear
20 Wheel house inner rear fender
21 Longitudinal member wheel arch panel, rear
22 Mounting
Additional on T-Limousine
P97.20-0234-06
23 Tailgate
Fig. item, etc. | Work instructions | ||
Danger! | Risk of explosion and poisoning through solvent vapors and gases. Risk of injury to eyes and skin when handling anti-corrosion agents | Do not spray anti-corrosion agent into flames or onto glowing-hot surfaces and keep away from ignition sources. Work only in well ventilated areas, wear protective respiratory mask. | |
| Notes on hollow cavity preservation | ||
Processing instructions for hollow cavity preservation | |||
| Apply wax preservative on hatched areas only after sealing and painting work, but before assembly work. | Insert spray hose as far as possible into cavities and pull out slowly during spraying. | |
Spray hose must be stiff and jets must spray inclined to front and rear. Cavities must be dry. | |||
| Carry out repair preservation twice in succession after a flash-off time of 5 minutes. | Application temperature must not be below +15 °C. Apart from the standard cavity preservation as shown, additional sealing measures may be required depending on area of repair. |
