AR60.10-D-5011G | Setting up straightening bench, straightening set for rear end repairs | 7.8.95 |
MODELS 901.312, 902.012 /312 /412, 903.012 /312 /412 with CODE (G40) Automatic transmission
MODELS 902.412, 903.412 with TRANSMISSION 711.612
with CODE (N05) Countershaft PTO (2c) without flange
with CODE (N07) PTO countershaft (2b) with flange
D60.10-0106-09
D60.10-0107-09

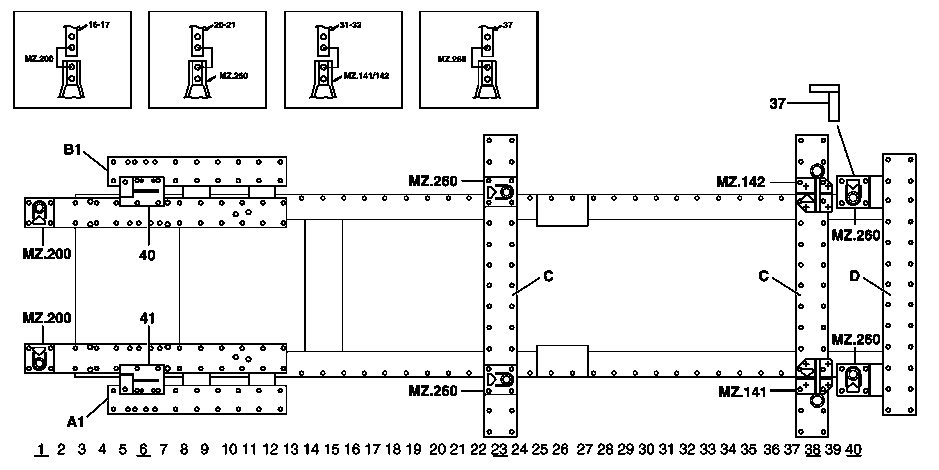

16 Support for rear engine mount support 7001.7016 (for MZ.200)
17 Support for rear engine mount support 7001.7017 (for MZ.200)
20 Support for rear spring, front spring bearing bracket 7001.7020 (for MZ.260, with spring installed and removed, only for platform/crewcab 2.5-3.5 t)
21 Support for rear spring, front spring bearing bracket 7001.7021
(for MZ.260, with spring installed and removed, only for platform/crewcab 2.5-3.5 t)
22 Distance sleeve 7001.7022
(for support 20 and 21, with spring bracket removed)
23 Distance sleeve 7001.7023 (for support 20 and 21, with spring bracket removed)
31 Support for rear spring, rear spring bearing bracket 7001.7031
(for MZ. 141/MZ142, for all 2.5-3.5 t)
32 Support for rear spring, rear spring bearing bracket 7001.7032
(for MZ.141/MZ142, for all 2.5-3.5 t)
37 Support for rear longitudinal member 7001.7037 (for MZ.260)
38 Angle bracket 7001.7038
(for support 37)
39 Angle bracket 7001.7039
(for support 37)
40 Support 7001.7040 (for mounting front longitudinal member, at rear engine support)
41 Support 7001.7041 (for mounting front longitudinal member, at rear engine support)
T.034 Centering pin (for support 40 and 41)
A1 Modular member 955.741
B1 Modular member 955.742
C Modular member 955.715/955.703
D Modular member 955.704
MZ.141 Bracket
MZ.142 Bracket
MZ.200 Bracket
MZ.260 Bracket
Fig. item, etc. | Work instructions | ||
A1, B1, C, D | Set up Celette straightening bench modular members | ||

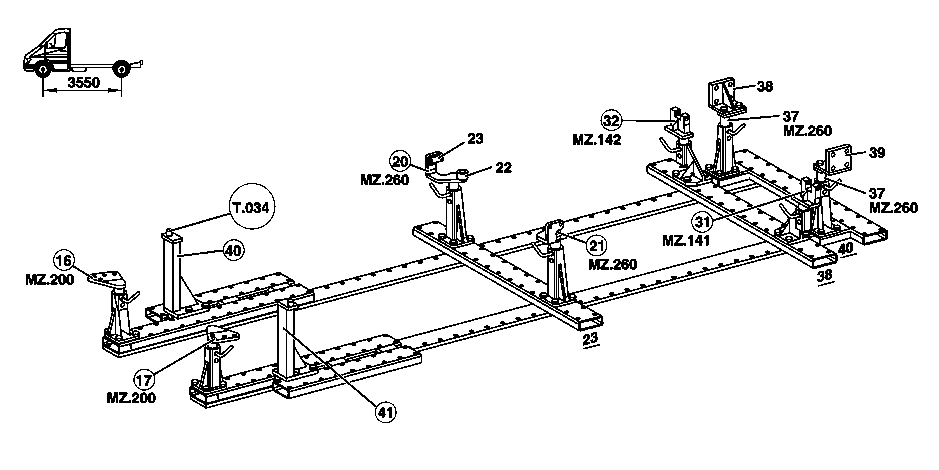

Set up straightening bracket set for rear end repairs | Always set up assembly with circled number of items | ||
16, 17 | Support with bracket MZ.200 | Lock supports in lower hole with brackets in upper hole | |
20, 21 | Support with bracket MZ.260 | Lock supports in lower hole with brackets in upper hole | |
22 | Spacer sleeve | Mount onto supports 20 and 21 with spring bracket removed | |
23 | Spacer plate | Secure to supports 20 and 21 with spring bracket removed | |
31 | Support with bracket MZ.141 | Lock support in lower hole with bracket in upper hole | |
32 | Support with bracket MZ.142 | Lock support in lower hole with bracket in upper hole | |
34 | Reducing bushes to WAF 18 mm | Insert into support 28 | |
37 | Support with bracket MZ.260 | Lock support in lower hole with bracket in upper hole |
Workshop equipment
WE58.40-Z-1008-01B | Straightening set and attachment parts 7001.300 (Sprinter, except all-wheel drive Sprinter) |
WE58.40-Z-1009-01B | Body lifting jack |
