M - Maintenance services | |
Z1 - Additional service only in 1st M maintenance service | |
Z2 - Additional services every 2 M maintenance service | |
Z4 - Additional services every 4 M maintenance service | |
J1 - Maintenance services every year | |
J2 - Maintenance services every 2 years | |
J3 - Maintenance services every 3 years |
B00.20-0088-11
Risk of injuries! Before performing maintenance work, read through the technical sheet, such as Operation manual and workshop information. Always have the maintenance work performed within the intended intervals. Otherwise, it may cause malfunctions or faults on the safety systems. Thus, it may cause an accident and cause injury to yourself or to others.

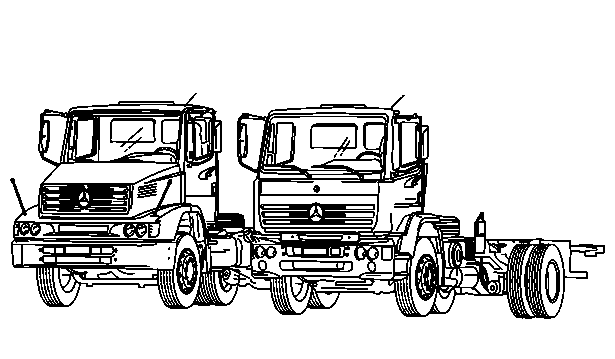

B00.20-0079-05
Vehicle's Maintenance Categories
The scope and frequency of maintenance works are established, first, by the different conditions of vehicle usage.
The variable maintenance system at Mercedes-Benz complies with this requirements, enabling the choice of maintenance groups with different maintenance intervals.
Maintenance intervals depend on the use of the vehicle.
For that reason, asses the conditions to which your vehicle will be predominantly submitted to in a critical way. Then, consciously choose, together with your Mercedes-Benz Dealer, the required maintenance category.
Heavy duty
- Use of the vehicle under extreme conditions, operating in the maximum effort or load limits.
Examples:
- Vehicles that drive predominantly in large cities and roads with intense traffic.
- Traffic with frequent “stop and drive” condition
- Vehicles used in regular services of urban delivery.
Vehicles for special services (concrete mixers, dump trucks, dump compactors, vehicle with total traction). For these vehicles, the maintenance per hour of service or fuel consumption is recommended.
- Constant travels in unpaved roads or in poor condition.
- Traffic in extremely short distances with high percentage of engine operation in idle speed or excessive actuation of the engine start.
- Utilization on building sites without highway circulation, on extremely difficult terrain, with heavy loads.
Mixed Service
- Regional traffic with few highways.
Road Service
- Vehicles that predominantly drive on highways or paved roads in good conditions, with average speed high and few intermediate stops.
If, due to the vehicle sale or due to the changes in the operation conditions, the maintenance category has to be changed, this change must be made with the participation of a Mercedes-Benz Dealer and communicated to Mercedes-Benz do Brasil Ltda.
DAILY INSPECTION
The daily inspection consists of the checking under the responsibility of the driver, that have to be carried out systematically before starting the vehicle's daily operation, to ensure its operating and circulation safety.
The vehicle's maintenance schedule does not include the vehicle's daily inspection work.
To be carried out before starting the engine
- Drain the water accumulated in the fuel prefilter
- Check the general tire conditions and inflation
- Check for leaks in general (coolant, oil, fluids and fuel)
- Check the operation of the headlights, running lights, turn signal lights, brake lights and reversing lights
To be carried out after starting the engine
- Check the brake system air pressure
Check the tachograph operation
- Check the operation of the warning alarm buzzer and warning lights
- Check the fuel filling
To be carried out at least once a week
- Check the condition of the Poly-V drive belts
- Check the condition and the tension of the fan drive belts
- Clean the windshield, glasses and rearview mirrors
- Check the operation of door locks and, latches
- Check the fluid level of the clutch actuation system
- Check the filling of the windshield washer reservoir
- Clean the headlights and lamps
- Check the operation of the windshield wipers and the condition of wiper arms and blades actuation linkage
- Check tightness of fastening bolts on the wheels
- Check and adjust tire inflation pressure, including the spare wheel
- For vehicles utilized predominantly in off-road conditions, grease the drive shafts universal joints
OIL CHANGE INTERVALS | |||||
Engine oil and oil filters change intervals (euro 3 engines) | |||||
Engine | Used lubricant | Fuel sulfur level | Heavy duty | Mixed duty | Road service |
OM 457 LA | Class MB 228.3 or MB 228.5 | up to 0.3% | every 15,000 km | every 20,000 km | every 30,000 km |
from 0.3% to 0.8% | every 7,500 km | every 10,000 km | every 15,000 km | ||
above 0.8% | every 7,500 km | every 7,500 km | every 7,500 km | ||
OM 904 LA | Class MB 228.3 | up to 0.3% | every 20,000 km | every 30,000 km | every 45,000 km |
from 0.3% to 0.8% | every 10,000 km | every 15,000 km | every 22,500 km | ||
above 0.8% | every 10,000 km | every 10,000 km | every 10,000 km | ||
Refuel the Euro 3 engines only with MB 228.3 or 228.5 class lubricating oil. The use of lubricating oil according to class MB 228.1 is not recommended for Euro 3 engines.
OIL CHANGE INTERVALS | ||||
Change intervals for the gearbox oil | ||||
Gearbox oil should be changed at regular intervals as shown in the above table, according to the vehicle maintenance category. | ||||
Gearbox | Recommended lubricant | Heavy duty | Mixed duty | Road service |
ZF 16S-1650 | Lubricating oils for transmissions according to API GL4, viscosity SAE 80, SAE 80W or SAE 80W / 85, according to ZF specifications, list of lubricants TE-ML 02, class of lubricants 02B | at 45,000 km | at 60,000 km | at 90,000 km |
Eaton FS 6209A | Lubricating oils for transmissions according to API GL4, viscosity SAE 80, SAE 80W or SAE 80W / 85, class MB 235.1 | at 15,000 km | at 30,000 km | at 45,000 km |
MB G221-9 | Oils for transmissions according to API GL4, viscosity SAE 80, SAE 80W or SAE 80W / 85, class MB 235.1 and 235.5 | at 30,000 km | at 45,000 km | at 60,000 km |
MBG60-6 | (Optional, except for operation in tropical climate areas) | at 15,000 km | at 30,000 km | at 45,000 km |
Utilize only approved and recommended gearbox oils. These products are related in the Lubricants Booklet, specified according to the aggregate type.
OIL CHANGE INTERVALS | |||||
Change intervals for the rear axle oil | |||||
Rear axle | Recommended lubricant | Heavy duty | Mixed duty | Road service | |
(HD4 746.890 746.891) | Transmission oils as per API GL5, class MB 235.20 | 1st change | 15,000 Km | at 30,000 km | at 45,000 km |
other changes | every 15,000 km | every 30,000 km | every 45,000 km | ||
(HL4 746.975, 746.991) | Transmission oils as per API GL5, class MB 235.20 | 1st change | 15,000 Km | at 30,000 km | at 45,000 km |
other changes | every 30,000 km | every 60,000 km | every 90,000 km | ||
Note: The 1st rear axle oil change should be executed at 1st vehicle M maintenance.
* For vehicles marketed outside of Brazil, the recommended lubricants should be consulted on the website http://bevo.mercedes-benz.com (Sheet 231.2).
MAINTENANCE INTERVALS | ||||
SERVICES | Heavy duty | Mixed duty | Road service | |
Maintenance services | M | every 15,000 km | every 30,000 km | every 45,000 km |
Additional services every 2 M maintenance service | Z2 | every 30,000 km | every 60,000 km | every 90,000 km |
Additional service every 4 maintenance service M | Z4 | every 60,000 km | every 120,000 km | every 180,000 km |
Oil change of the front and auxiliary axles wheel hubs | Z2 | every 45,000 km | every 90,000 km | every 135,000 km |
Complementary Services | J1 | every year | ||
Complementary Services | J2 | at each 2 years | ||
Complementary Services | J3 | every 3 years | ||
To prevent an additional vehicle stop in the workshop, program the annual service together with the preventive service.
MAINTENANCE INTERVALS | ||||
Atron 1634L; 1634LS; 1635L; 1635LS; 1638L; 1938LS; 2638L; 2638LK | ||||
SERVICES | Heavy duty | Mixed duty | Road service | |
Maintenance services | M | every 15,000 km | every 30,000 km | every 30,000 km |
Additional services every 2 M maintenance service | Z2 | every 30,000 km | every 60,000 km | every 60,000 km |
Additional service every 4 maintenance service M | Z4 | every 60,000 km | every 120,000 km | every 120,000 km |
Oil change of the front and auxiliary axles wheel hubs | Z2 | every 45,000 km | every 90,000 km | every 135,000 km |
Complementary Services | J1 | every year | ||
Complementary Services | J2 | at each 2 years | ||
Complementary Services | J3 | every 3 years | ||
Maintenance intervals table | |||
Maintenance work | Operations under severe conditions km | Operations under mixed conditions km | Operations under road conditions km |
1. Maintenance (M + Z1) | 15,000 | 30,000 | 45,000 |
2. Maintenance (M + Z2) | 30,000 | 60,000 | 90,000 |
3rd Maintenance service (M) | 45,000 | 90,000 | 135,000 |
4. Maintenance (M + Z2 + Z4 ) | 60,000 | 120,000 | 180,000 |
5th Maintenance service (M) | 75,000 | 150,000 | 225,000 |
6. Maintenance (M + Z2) | 90,000 | 180,000 | 270,000 |
7. Maintenance (M) | 105,000 | 210,000 | 315,000 |
8. Maintenance (M + Z2 + Z4) | 120,000 | 240,000 | 360,000 |
9. Maintenance (M) | 135,000 | 270,000 | 405,000 |
10. Maintenance (M + Z2) | 150,000 | 300,000 | 450,000 |
11. Maintenance (M) | 165,000 | 330,000 | 495,000 |
12. Maintenance (M + Z2 + Z4) | 180,000 | 360,000 | 540,000 |
13. Maintenance (M) | 195,000 | 390,000 | 585,000 |
14. Maintenance (M + Z2) | 210,000 | 420,000 | 630,000 |
15. Maintenance (M) | 225,000 | 450,000 | 675,000 |
16. Maintenance (M + Z2 + Z4) | 240,000 | 480,000 | 720,000 |
17. Maintenance (M) | 255,000 | 510,000 | 765,000 |
18. Maintenance (M + Z2) | 270,000 | 540,000 | 810,000 |
19. Maintenance (M) | 285,000 | 570,000 | 855,000 |
20. Maintenance (M +Z2 + Z4) | 300,000 | 600,000 | 900,000 |
21. Maintenance (M) | 315,000 | 630,000 | 945,000 |
22. Maintenance (M + Z2) | 330,000 | 660,000 | 990,000 |
23. Maintenance (M) | 345,000 | 690,000 | 1,035,000 |
24. Maintenance (M + Z2 + Z4) | 360,000 | 720,000 | 1,080,000 |
