Replace automatic transmission

SM27.10-D-0005DJ

Replace automatic transmission

15.12.2016

Model

906.### ## as of 603176 up to 727881 with engine 272

Operation no. of the operation texts or standard texts and flat rates

Category

Op. no.

Operation text

Time

Acc. no.

Code

L

02 8902

Operations: Replace automatic transmission

27 900 77

NCV3ANWELL

L

02 8903

Extra work for: Replace automatic transmission, veh. with shavings in oil pan

27 900 77

NCV3ANWELL

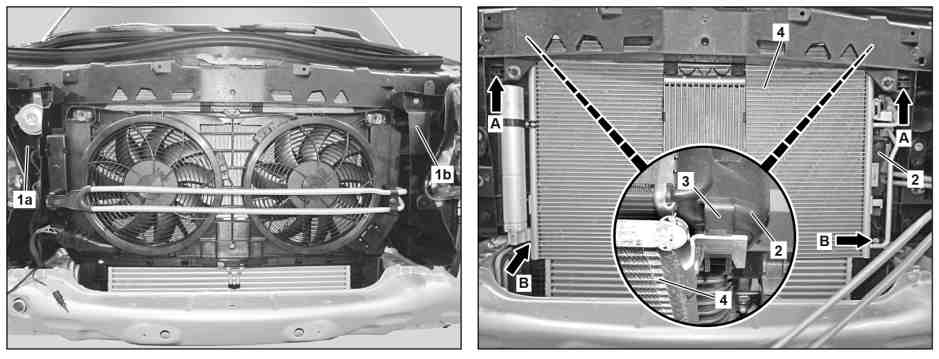

Shown with CODE HH9 (Semi-automatically regulated air conditioning, TEMPMATIC)

1a

Cover

4

Condenser

1b

Cover

A

Lock

2

Radiator

B

Screw

3

Lock



Check

1

Check whether vehicle is affected by measure

SM27.10-D-0005-01DJ

 For authorized Mercedes­Benz service partners, only the entry in the "Extended VEGA Application" (EVA) system, in the "Current" tab is decisive. An additional test of the affected vehicles in the workshop information system (WIS) or vehicle list is thereby not necessary.

 

Remove/install

 Danger !

Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant.

Do not open cooling system unless coolant temperature is below 90 °C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers.
Wear protective gloves, protective clothing and safety glasses.

AS20.00-Z-0001-01A

2

Remove automatic transmission oil pan



MODEL 906 with TRANSMISSION 722.685

AR27.10-D-7030H

 Check the oil pan, magnet and drained oil for metal shavings.

If metal shavings are present in the oil pan, on the magnet or in the oil.



Additionally perform the work starting with operation step 4.

3

Remove automatic transmission



MODEL 906 with TRANSMISSION 722.685

AR27.10-D-0502B

 Always replace the automatic transmission.

 Installation: If metal shavings are present in the oil pan, on the magnet or in the oil, the torque converter must be replaced and the lines from the oil cooler to the automatic transmission must be flushed out.

4

Flush out lines from oil cooler to automatic transmission



AR27.55-D-0001A

5

Drain coolant



AR20.00-D-1140SD

6

Remove fan shroud



AR20.40-D-6800SF

7

Remove front bumper



MODEL 906 except CODE XM0 (Model refinement) except CODE ZX8 (Dodge brand scope) except CODE ZX9 (Freightliner (FTL) brand scope)

AR88.20-D-2000SD

8

Remove additional fan unit

Model 906 with engine 272
with code HH9 (Air conditioner, automatic heater control)



AR83.30-D-5610SD

9

Remove covers (1a, 1b)

10

Detach coolant hoses at radiator (2)



AR20.20-D-3865-09SD

11

Detach automatic transmission oil lines from cooler (2)



MODEL 906 with TRANSMISSION 722.685

AR27.55-D-0100-01US

 Record plug

*129589009100

12

Disengage locks (arrows A) of cooler (2) on front module and push top of cooler (2) carefully toward rear

13

Disengage locks (3) on both sides of cooler and lift condenser (4) out of upper and lower guides on cooler (2) with lines still connected

 Helper required.

14

Remove screws/bolts (arrows B)

15

Take out cooler (2) in upward direction

 Installation: Replace the cooler (2).

16

Install in the reverse order

Parts ordering note

Part no.

Designation

Quantity

A 906 270 08 00 80

Automatic transmission

1

A 221 250 03 02

Torque converter

1

A 906 500 15 02

Radiator

1

-

Automatic transmission fluid (ATF, specification 236.14)

8 l
