Remove/install additional fan unit

Type ar · topic 83.30 · version 0110 · 2017-04-25

Applies to: Model 900, 906 with code HH9 (Air conditioner, automatic heater control)

Where it sits

Function group 3 Body › 83 Climate control › 83.30 Air conditioning — Series 900 · Series 906

EinPAS 15 Engine › 15.25 Engine cooling system › 15.25.45 Fan/fan clutch/fan drive — Series 900 · Series 906

AR83.30-D-5610SD

Remove/install additional fan unit

11.04.2017

Model	900, 906
	with code HH9 (Air conditioner, automatic heater control)

Remove/install additional fan unit

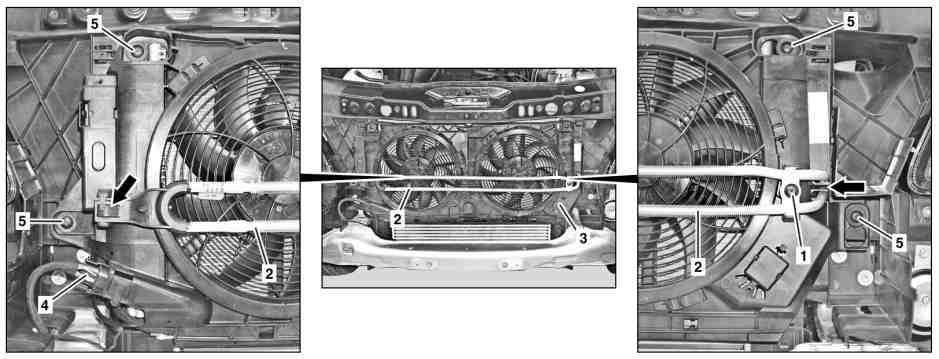

D83.30-1182-08

Shown on vehicle without code G42 (7G-TRONIC PLUS)

1	Screw		3	Additional fan unit		5	Screw
2	Power steering oil cooler		4	Electrical connector

Remove/install additional fan unit

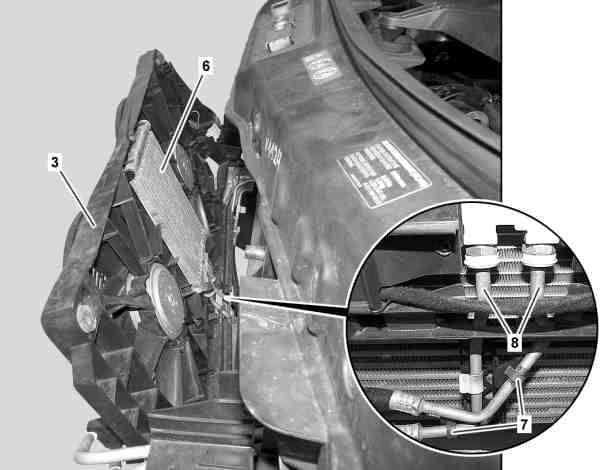

Vehicle with code G42 (7G-TRONIC PLUS)

3	Additional fan unit
6	Automatic transmission fluid cooler
7	Retaining clamp
8	Automatic transmission oil cooling lines

D83.30-1253-06

 	Remove/install
1	Remove front bumper	Model 906 with code XM0 (facelift) or with code XM5 (facelift for Latin America)	AR88.20-D-2000M
		Model 900 with code HH9 (Air conditioner, automatic heater control) Model 906 with code HH9 (Air conditioner, automatic heater control) except code XM0 (Facelift) except code XM5 (Facelift Latin America) except code ZX8 (Dodge execution) except code ZX9 (Freightliner execution)	AR88.20-D-2000SD
		Model 906 with code HH9 (Air conditioner, automatic heater control) with code ZX8 (Dodge execution) except code XM0 (Facelift) except code XM5 (Facelift Latin America) Model 906 with code HH9 (Air conditioner, automatic heater control) with code ZX9 (Freightliner execution) except code XM0 (Facelift) except code XM5 (Facelift Latin America)	AR88.20-D-2000SE
2	Remove bolt (1)
3	Unclip power steering system oil cooler (2) at additional fan unit (3) (arrows) and place to one side	 Installation: Ensure that power steering oil cooler (2) is seated correctly.
4	Disconnect electrical connection (4)
5	Remove both brackets for front bumper at front module	Model 906 with code XM0 (facelift) or with code XM5 (facelift for Latin America)
6	Remove screws (5)
7	Unclip automatic transmission oil cooling lines (8) from retaining clamps (7)	MODEL 906 with CODE G42 (7G-TRONIC PLUS)
8	Swivel additional fan unit (3) forward, unclip automatic transmission oil cooler (6) and guide to one side	MODEL 906 with CODE G42 (7G-TRONIC PLUS)
9	Remove additional fan unit (3)
10	Disassemble additional fan unit (3)	When replacing the additional fan unit (3).
		Model 900 with code HH9 (Air conditioner, automatic heater control) Model 906 with engine 271.951, 642.992/993, 646.984/985/986/989/990, 651.955/956/957 with code HH9 (Air conditioner, automatic heater control)	AR83.30-D-5615SD
11	Install in the reverse order
	Check
 Warning	Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear buttoned-up and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
12	Perform engine test run, switch on air conditioning and let engine run until air conditioning additional fan 1 and air conditioning additional fan 2 switch on

Referenced documents

ar8330d5615sd Disassemble/assemble additional fan unit
ar8820d2000m Remove/install front bumper
ar8820d2000sd Remove/install front bumper
ar8820d2000se Remove/install front bumper
as0000z000501a Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running.
