B88.30-0007-11

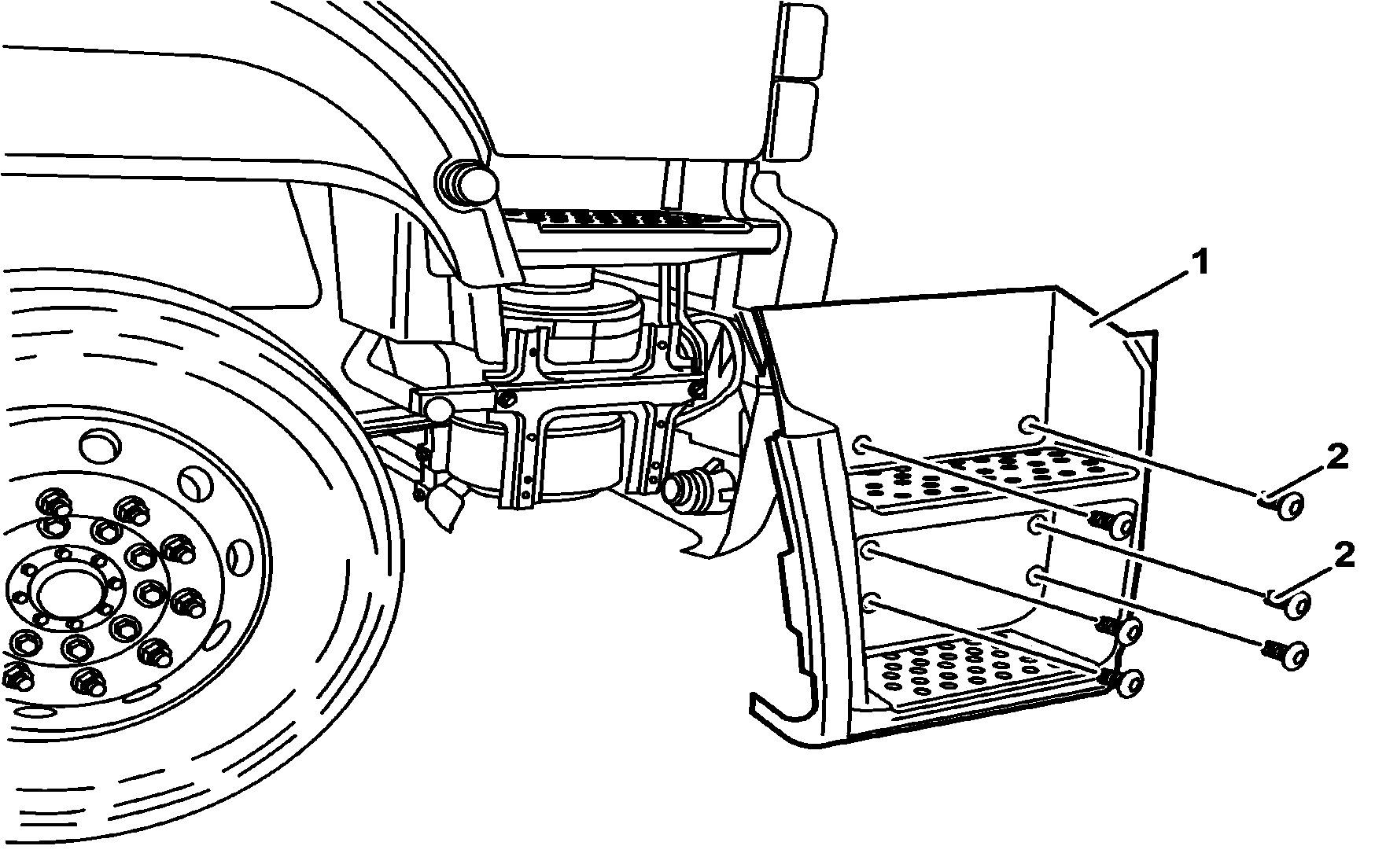

1 Step
2 Bolts
B88.30-0006-06
3 Step
4 Torx screw
5 Torx screw
6 Torx screw
7 Closing wall
8 Fastening piece
9 Intermittent light connector
10 Torx screw
11 Intermittent light lamp cutout
| Remove and install | ||
1 | Loose the bolts (2) and remove the step (1) | ||
2 | Loose the Torx bolts (10) at the bottom side of the door opening. | | |
Danger! | Risk of injury due to being caught or smashed by the tilting cabin | During the cabin forward and rearwards tilting operation, do not go into the area in which the cabin tilts and adopt preventive measures to avoid that non-authorized persons go into it. Always tilt the cabin up to its final position and lock it there with the safety device. | |
3 | Tilt the cabin forward | ||
4 | Remove the step (3) | Press the outer corner of the intermittent light fitting pulling it forward until having access to the front Torx bolt. Install: Firstly fit the step (3) between the cabin and the rear spills protection . Pass the connector (9) of the lateral intermittent light lamp through the cutout (11) of the step's structure. | |
| |||
| |||
| |||
| |||
5 | Install in reverse order |
Detachable body components, underride guard
Número | Denominação | Cabs 693.860 | |||
BA88.30-B-1001-01A | Bolts attaching the ladder steps to the cab cross member from the outside | Nm | 18 | ||
BA88.30-B-1002-01A | Bolts attaching the ladder steps to the support | Nm | 18 | ||
BA88.30-B-1003-01A | Bolts fastening the protection against splashes on the ladder steps | Nm | 7 | ||
BA88.30-B-1004-01A | Bolts fastening the ladder steps on cab flooring | Nm | 18 | ||
BA88.30-B-1005-01A | Bolts fastening the front closing piece on the ladder steps | Nm | 7 | ||
