AR25.20-B-0150A | Removing and installing slave cylinder | 12.02.16 |
Vehicle 397.### #B, 397.### #D, 682.### #B, 682.### #D, 693.### #B, 693.### #D
Vehicle 688.101B, 688.101D, 688.102B, 688.102D, 688.103B, 688.103D, 688.106B, 688.106D, 688.107B, 688.107D, 688.108B, 688.108D, 688.109B, 688.109D, 688.111B, 688.111D, 688.118B, 688.118D, 688.123B, 688.123D, 688.129B, 688.129D
Vehicle 688.133B, 688.133D, 688.138B, 688.138D, 688.143B, 688.143D, 688.156B, 688.156D, 688.157B, 688.157D, 688.174B, 688.174D, 688.176B, 688.176D, 688.177B, 688.177D

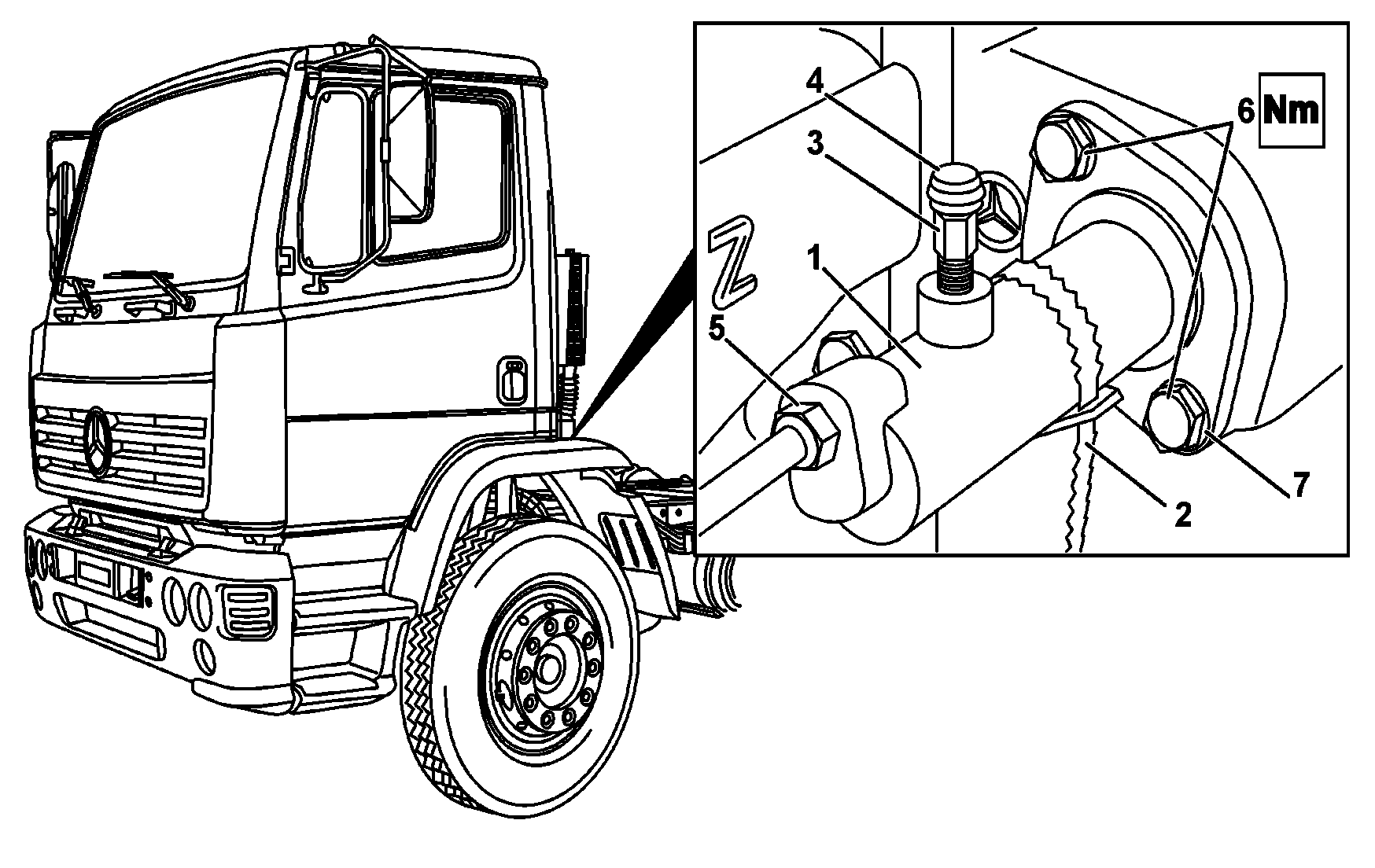

B25.20-0028-05
1 hydraulic slave cylinder
2 Identification clamp
3 Bleeder
4 Bleeder plug
5 Tubes connection
6 Fastening bolts
7 Washers
| Remove and install | ||
1 | Disconnect the general switch | ||
2 | Open the front cover | ||
Danger! | Risk of poisoning due to ingestion of brake fluid. Risk of injury due to contact of the skin and eyes with brake fluid | Drain and store brake fluid only in its original package. Wear protective clothes and goggles. | |
3 | Remove by suction the hydraulic reservoir's fluid | ||
4 | Connect the bleeding equipment and remove the brake fluid by the bleeder (3) of the hydraulic slave cylinder (1) | The brake fluid already used in the system must not be reused, but eliminated in an environment friendly manner. | |
Brake, clutch and steering test and bleeding equipment. | |||
5 | Disconnect the metallic tubes from the hydraulic slave cylinder (1) connection (5) | The metallic tubes must not be folded or forced in their routes. | |
Vehicles 397; 682; 693 | |||
Vehicle 688 | |||
6 | Remove the two bolts (6) with the washers (7) and remove the hydraulic slave cylinder (1) from the clutch housing | | |
7 | Remove the identification clamp (2) | The number of the cylinder piece, the diameter and travel numbers are engraved on the clamp. The clamp must always follow the cylinder, even after the repair change. | |
Install: Fasten the identification clamp to the cylinder. | |||
8 | Replace the hydraulic slave cylinder repair piece, if necessary | ||
Vehicles 397; 682; 693 | |||
Vehicle 688 | |||
9 | Install the hydraulic slave cylinder operating in reverse direction | ||
10 | Supply with he specified new brake fluid | ||
11 | Bleed the clutch actuation hydraulic system | ||
12 | Check the tightness of the hydraulic system |
Clutch operator
Número | Denominação | Vehicles 382; 384; 386; 397; 682; 688; 693; 694 | |||
BA25.20-B-1002-01B | Bolts which fasten the slave cylinder | M8 | Nm | 25,5...34,5 | |
Produtos para reparos
Número | Denominação | Número de pedido |
BR00.45-B-1011-06A | Brake fluid as per DBL 7760.30 (DOT 4) | - |
