201 589 00 51 00
Spot weld miller
Workshop equipment
WE58.40-Z-1001-03A | Drill (electric/pneumatic) |
WE58.40-Z-1003-03A | Angle grinder (electric/pneumatic) |
WE58.40-Z-1004-03A | Body saw (electric/pneumatic) |
WE58.40-Z-1005-03A | Wet/dry vacuum cleaner |
Repair materials
Number | Designation | Order number |
BR00.45-Z-1001-07A | Zinc dust paint suitable for spot welding | A 000 986 34 42 |
D64.30-0010-02
D64.30-0009-02

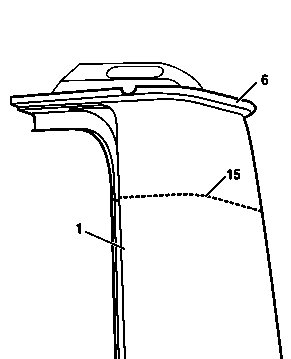

1 Mark separation line (dotted line, 15) along drip molding (6) at a distance of approx. of 100 mm.
2 Separate right outer corner pillar paneling (1) along marked separation line (dotted line, 15).
3 Mark hole (17) with the following dimensions:
a = ca. 10 mm,
b = ca. 10 mm.
4 Drill marked hole (17) with
6mm dia. bit.
D64.30-0011-03
D64.30-0016-03
5 Drill seven holes (19) at marked points with 6 mm dia. bit.

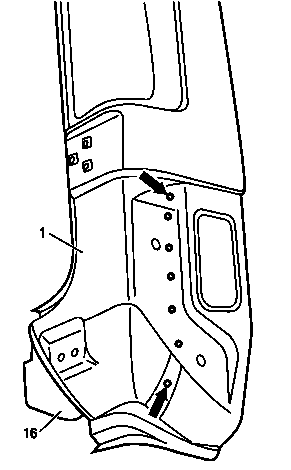

6 Cut spot welds out of right outer corner pillar paneling (1) (arrows) and remove reinforcement panel (16).
D64.30-0013-02
D64.30-0012-02

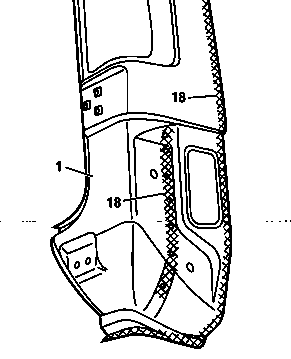

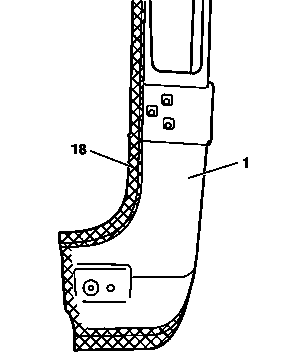

7 Grind right outer corner pillar paneling (1) on both sides in marked area (18) and coat with zinc dust paint.
D64.30-0015-02
D64.30-0014-02

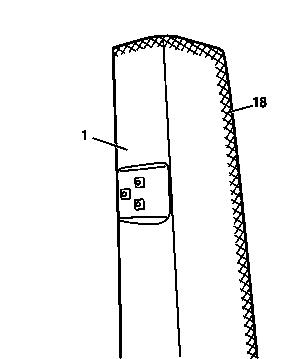

8 Grind right outer corner pillar paneling (1) on both sides in marked area (18) and coat with zinc dust paint.
9 Fit right outer corner pillar paneling (1), align and clamp.
