Disassemble/assemble front wheel hub

AR33.20-W-0320B

Disassemble/assemble front wheel hub

02.10.2018

Front axle

730.10/11 in model 374, 930, 932, 934, 949, 950, 952, 954

except code KR83 (Tire pressure control system)

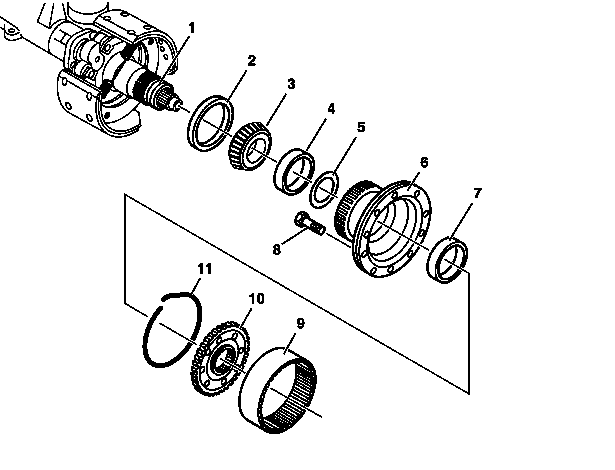

1

Axle stub

2

Thrust ring

3

Tapered roller bearing (inner)

4

Outer race (inner tapered roller bearing)

5

Oil retainer

6

Wheel hub

7

Outer race (outer tapered roller bearing)

8

Wheel bolt

9

Planetary hub gear

10

Carrier (planetary hub gear)

11

Wire ring

 Warning

Risk of injury. Skin or eye injuries may result when handling hot or glowing objects.

Wear protective gloves, protective clothing and safety glasses, if necessary.

AS00.00-Z-0002-01A

Notes on evaluating oil loss at major assemblies

AH00.00-N-0011-02A



Disassemble

1

Remove wheel hub (6)

AR33.20-W-0310B

2

Remove outer races (4, 7) from wheel hub (6)

 Puller

*000589163300

3

Remove oil retainer (5) from wheel hub (6)

4

Drive wheel stud (8) out of wheel hub (6)

5

Pull wire ring (11) out of planetary hub gear (9) and remove carrier (10)

6

Remove brake carrier

AR42.10-W-0500B

7

Detach tapered roller bearing (3) from axle stub (1)


The puller must be supported on the axle spindle (1) using the  thrust piece.
Supporting the puller directly on the drive shaft can damage the universal joint of the drive shaft.

 Puller

*001589393300

 Clamping ring

*731589003400

 Thrust piece

*731589026300



Assemble

8

Heat tapered roller bearing (3) to approx. 80 °C and install on axle stub (1) until it abuts

9

Install brake carrier

AR42.10-W-0500B

10

Drive wheel stud (8) into wheel hub (6)

 The flat side of the head of the wheel stud (8) must lie against the inside of the housing of the wheel hub (6).

11

Install oil retainer (5) in wheel hub (6)

 Install the oil retainer (5) with the flat side facing inwards.

12

Heat wheel hub (6) in area of outer races (4, 7) to approx. 80 °C and install outer races (4, 7) until they abut

 Drive home the outer races (4, 7) using a drift if necessary.

13

Insert carrier (10) into planetary hub gear (9) and push in wire ring (11)

14

Install wheel hub (6)

AR33.20-W-0310B
