GF14.30-P-4029F

Injected air check valve, location/task/design/function

10.7.96

ENGINE 104.941 /942 /991 /992 /994 with CODE (494a) USA version

ENGINE 104.941 /942 /943 /944 /991 /994 as of 1.8.96

ENGINE 104.995
with CODE (494a) USA version
with CODE (807) Model year 1997
with CODE (808) Model year 1998
with CODE (498) as of Model Year 97 Japanese version

ENGINE 111.955 /956 /957 /958 /982 /983

ENGINE 111.961 with CODE (494a) USA version

ENGINE 111.974
with CODE (494a) USA version
with CODE (807) Model year 1997
with CODE (808) Model year 1998

ENGINE 111.973 /975
with CODE (494a) USA version
with CODE (923a) low emission D3

ENGINE 119.980 /981 /982 /985
with CODE (494a) USA version
with CODE (923a) low emission D3
with CODE (920a) with exhaust air pump (secondary air injection)
as of 12/96

ENGINE 120.982 /983

15.03.07

The document has been updated to this date

and will no longer be subject to revision.

Injected air check valve, location/task/design/function

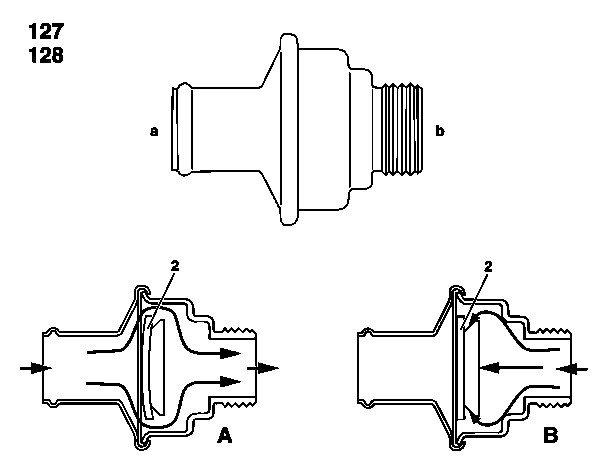

P14.30-0237-06

2 Moveable gasket

127/128 Check valve (injected air)

a From air pump (compressor)

A Check valve injected air in function

b To engine

B Check valve closed

Check valve injected air location

Between air pump/compressor and exhaust sideof engine.

Check valve injected air task

Reverse currents of exhaust to air pump/compressor (air injection).

Check valve injected air design

Metal housing with interior diaphragm

Check valve injected air function

The moveable gasket is opened by the injected air. Therefore the injected air can flow in direction of engine.
