P97.20-2136-01
Engine hood
Front wheel well
P97.20-2232-01
P97.20-2138-09
Shown on model 203.0
Longitudinal member left and right rear wheel well
P97.20-2194-11
Driver door

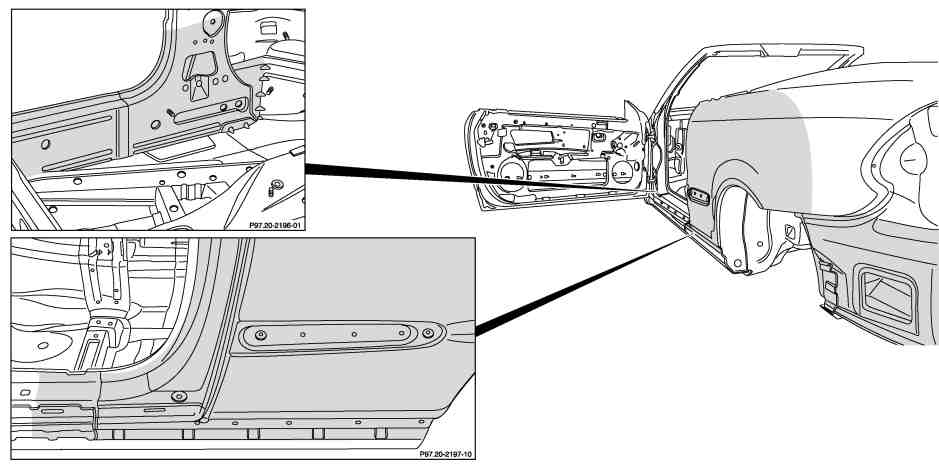

P97.20-2201-09
Rear window channel, rear fender and side longitudinal member (inner front)
P97.20-2202-09
Front longitudinal member, entire rear and underfloor
Danger! | Risk of explosion and poisoning caused by solvent vapors and gasses. Risk of injury to skin and eyes when handling anticorrosion agents. | Never spray anticorrosion agents on flames or glowing hot objects and keep them well away from all potential sources of ignition. Use them only in well-ventilated rooms; wear respiratory protection. | |
| Notes on cavity preservation | Model 124, 126, 129, 140, 168, 169, 170, 171, 201, 202, 203, 208, 209, 210, 211, 215, 220, 230, 240, 463, 639, 671, 690.6, 901, 902, 903, 904, 905 Model WD1, WD2, WD3, WD6, WD7, XD1, XD2, XD3, XD4, XD5, XD6, XD7, YD1, YD2, YD3, YD4, YD5, YD6, YD7 | |
1 | Perform repair preservation | Apply cavity preservation agent in marked areas, from inside, only after completing sealing and paintwork, however, before assembly work. Apply repair preservation agent twice after a drying time of 5 minutes in between. | |
The spraying hose should be stiff and the nozzles should spray at angle to the front and rear. The cavities should be dry. | |||
Insert spray hoses as far as possible into cavities. Spray while inserting and pulling out slowly. | |||
| Processing instructions for cavity preservation agent | ||
| Cavity protection, general | ||
Combination pressure spray gun (corrosion protection) | |||
MB cavity wax preservation, 1 l | |||
2 | Remove cavity sealant from drain holes | The processing temperature should not be less than 15 °C. Additional preservation measures may be required, depending on the repair area, deviating from the standard cavity preservation shown. |
Repair materials
Number | Designation | Order number |
BR00.45-Z-1003-05A | Cavity sealant, solvent-free (1 l container) | A 000 986 72 70 05 |
Odkazované dokumenty
- ah9720p000101b Upozornění ke konzervaci dutin
- ap9720p064001a Pokyny pro zpracování ke konzervaci dutin
- as9700z000101a Nebezpečí exploze a otravy vlivem výparů rozpouštědel a plynů. Nebezpečí poranění očí a kůže při práci s antikorozními prostředky
- gf9800p2045a
