Removing, installing auxiliary battery

15.2.12

MODEL 903.6 with CODE (ZL9) "James Cook" touring camper

Removing, installing auxiliary battery

D54.10-1109-08

1 Safety belts

2 Bench seat

3 Padding

4 Cover

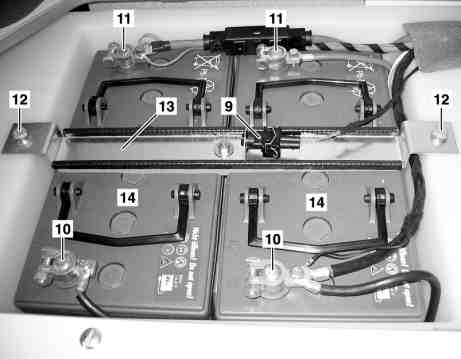

Removing, installing auxiliary battery

D54.10-1161-11

9 Clutch

10 Ground cables

11 Positive leads

12 Bolts

13 Bracket

14 Batteries

Remove/install

Danger!

Risk of injury caused by scraping or cutting body parts on sharp vehicle parts

Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.

Deburr repair panels.

AS00.00-Z-0017-01A

Danger!

Risk of explosion caused by escaping oxyhydrogen gas. Risk of injury caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte (contains diluted sulfuric acid) or metal spatter due to short circuit. Risk of burn injuries caused by short circuit. Risk of poisoning caused by swallowing battery electrolyte (contains diluted sulfuric acid) or absorption of lead over the skin or orifices

No fire, sparks, open flames or smoking.

Wear acid-resistant gloves and clothing and safety glasses with side guards.

Do not place any conductive objects on the battery and avoid any short circuit from battery positive to ground.

Only fill liquid battery electrolyte (diluted sulfuric acid) into suitable and appropriately marked containers.

AS54.10-Z-0001-01A

Notes on battery

AH54.10-P-0001-01A

1

Disengage seat belts (1) from belt locks

2

Move bench seat (2) toward front

3

Remove upholstery (3)

4

Fold out cover (4)

5

Detach coupling (9) from temperature sensor

6

Disconnect ground lines (10)

7

Disconnect positive leads (11)

8

Remove bolts (12)

9

Take out bracket (13)

10

Remove batteries (14)

11

Install in the reverse order

12

Check voltage of batteries (14) via the camper operating and display unit (A97)
