Engine cooling system capacity |
Number | Designation | Engine 372.9 for trucks | Engine 374.985 in Type 693 for trucks | |||
BF20.00-B-1001-01A | Cooling system - Approximate level | Do not mix products between classes | litros | 27 | 21 | |
Anti-corrosive/anti-freeze CLASSES MB 325.0, MB 325.3, MB 325.5 | % | 50 | 50 | |||
Anti-corrosion CLASS MB 312.0 | % | - | - | |||
Product already diluted | Anti-corrosive/anti-freeze MB CLASSES 326.0, MB 326.3 | litros | 27 | 21 | ||
Pressure in the system | bar | 0,40...0,50 | 0,40...0,50 | |||
Vacuum in the system | bar | 0,10 | 0,10 |
1 | Cooling system reservoir cover |
Seta | Maximum level mark |
B20.00-0047-01
Example |
4 | Drain plug on the cooler |
B20.00-0016-01
Radiator draining plug in the oil radiator
B18.20-0006-01
Example |
3 | Engine block drain plug |
B20.00-0033-01
Empty the engine cooling system
The coolant and eventual corrosion residue are to be completely drained and eliminated ecologically.
1
Remove the filling nozzle lid, in the compensation reservoir.
2
Loosen the drain plug on the engine block and catch the coolant in an appropriate container.
3
Remove the drain plug on the radiator and catch the coolant in an appropriate container.
4
Remove the oil radiator plug (on engines OM 364 A and OM 364 LA) and collect the coolant in a proper container
When discarding the coolant proceed ecologically
Refuel the engine cooling system
5
Install the plugs on the engine block, on the radiator and on the oil radiator . .
6
Prepare the cooling in a separate container, bu shaking it to perfectly homogenize the mixture.
7

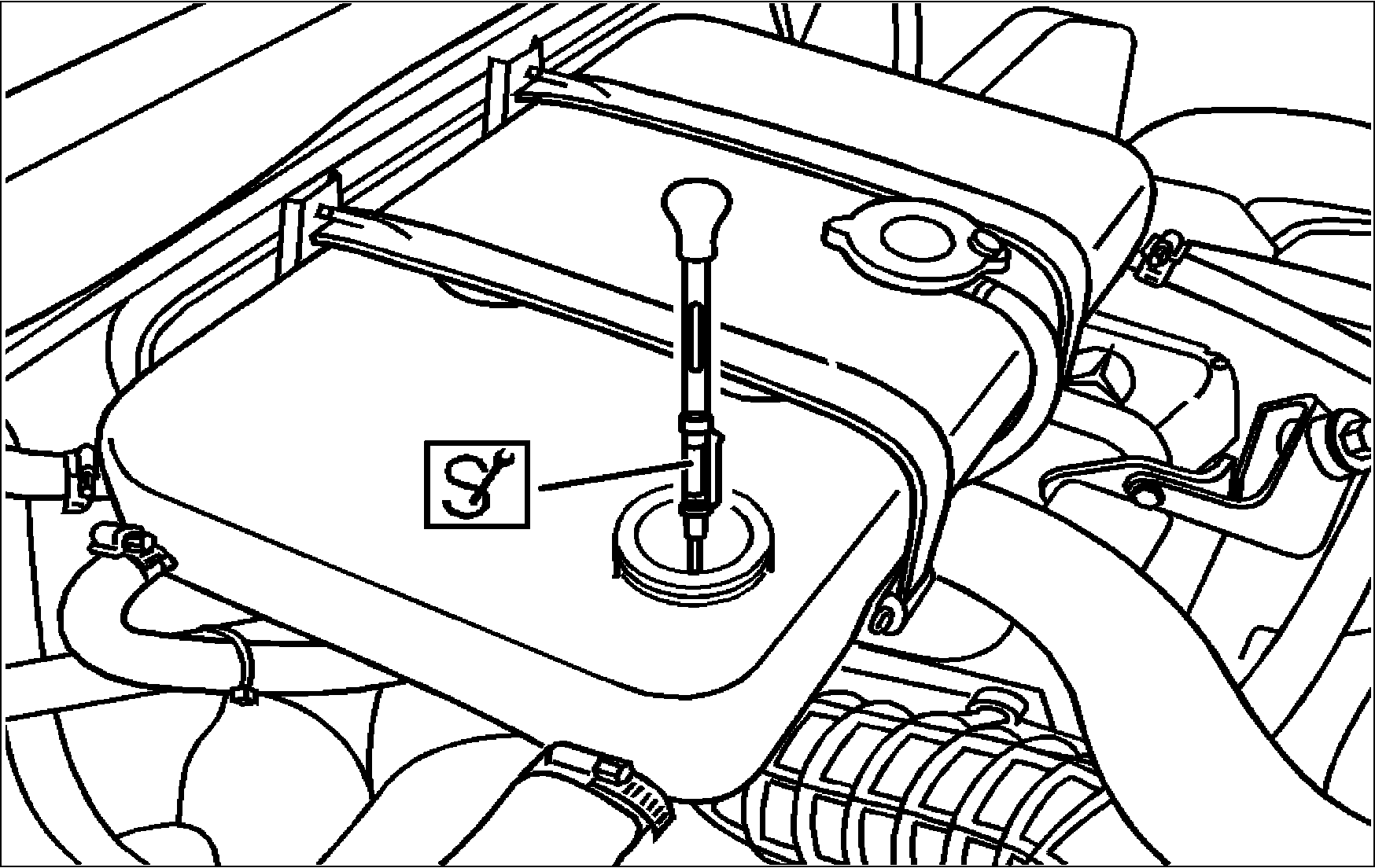

Check the concentration of the mix with a hydrometer.
8
If necessary, make the corrections, by adding water or additive until you obtain the prescribed concentration.
9
Refuel the cooling system up to the maximum reference level of the compensation reservoir:
10
Install the filling nozzle lid, in the compensation reservoir.
