Correct tightening torque of screws/bolts for cap on front-axle housing (code: 1807P33C15)

SM33.00-P-0003A

Correct tightening torque of screws/bolts for cap on front-axle housing (code: 1807P33C15)

15.01.2019

Model

205, 213, 238, 253

Operation no. of the operation texts or standard texts and flat rates

Category

Op. no.

Operation text

Time

Acc. no.

Code

P

02-2451

Correct torque of threaded connection for cap on front-axle housing

P

02-9676

Extra work for removing/installing engine compartment lining on vehicle with underbody protection, acc. no.: .........., code: ..........

1

Heat shield



Check

1

Check, whether the vehicle is affected by the measure.

Model 205 as of 251047 up to 722922

SM33.00-P-0003-01AAA

Model 213

SM33.00-P-0003-01AAB

Model 238 as of 028199 up to 062023

SM33.00-P-0003-01AAC

Model 253 as of 024815 up to 477201

SM33.00-P-0003-01AAD

 

Remove/install

2

Remove center and rear section lower engine compartment lining.



Model 213
Model 238

AR61.20-P-1105LWE



Model 205
Model 253

AR61.20-P-1105LW

3.1

Remove right catalytic converter.

Model 205, 213, 238, 253 with engine 274.9, 276.8



Model 205 with engine 274.9
Model 253 with engine 274.9

AR49.10-P-5500LW



Model 205 with engine 276.8
Model 253 with engine 276.8

AR49.10-P-5503MMV



Model 213, 238 with engine 276.8

AR49.10-P-5503MND

 Place catalytic converter with attached lines to one side and secure against falling down.

3.2

Remove diesel particulate filter at right.

Model 205, 253 with engine 651
with code 474 (Diesel particulate filter)



Model 205, 253 with engine 651
with code 474 (Diesel particulate filter)

AR14.40-P-1000OLE

 Place diesel particulate filter with attached lines to one side and secure against falling down.

4

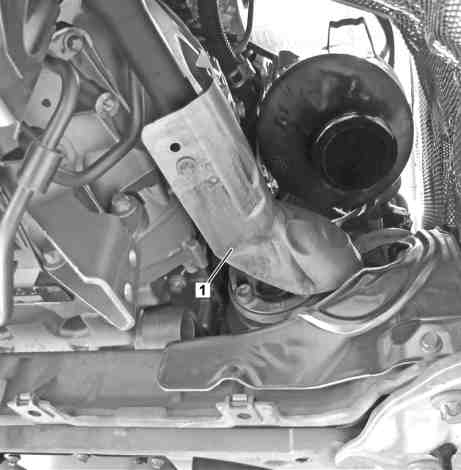

Remove heat shield (1) above propeller shaft on front axle differential.

5

Tighten bolts (arrow) of retaining plate on front axle differential to specified torque.

 Collar bolt, retaining plate to front axle differential

*BA33.30-P-1004-03G

6

Install in the reverse order

 Front axle gear

Number

Designation

Model 205

Model 213

BA33.30-P-1004-03G

Collar bolt, retaining plate to front axle differential

Nm

55

55

 Front axle gear

Number

Designation

Model 238

Model 253

BA33.30-P-1004-03G

Collar bolt, retaining plate to front axle differential

Nm

55

55
