GF20.10-W-3109A | Coolant temperature sensor location/design/function | 10.9.96 |
MODEL 375.4, 944, 950, 952, 953, 954 with CODE (BA9) Voith R115 secondary retarder
W20.10-1013-02
Shown on model 950

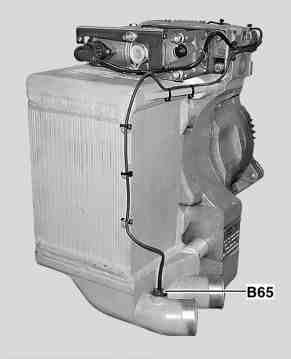

B65 Coolant temperature sensor
Coolant temperature sensor location | The coolant temperature sensor (B65) is screwed into the coolant outlet pipe of the heat exchanger. | ||
Coolant temperature sensor design | The coolant temperature sensor is designed as a PTC resistor (PT 1000), i.e. its resistance becomes higher as the temperature rises. | ||
Coolant temperature sensor function | The coolant temperature sensor alters its resistance depending on the coolant temperature and therefore the adjacent voltage at the retarder control unit. The retarder control unit can assign a correct temperature to this voltage, on condition that the value is within the permissible range. |
