Remove/install PTC heater booster

AR83.70-S-8000P

Remove/install PTC heater booster

17.12.2018

Model

470

with code HZ0 (Electric auxiliary heater)

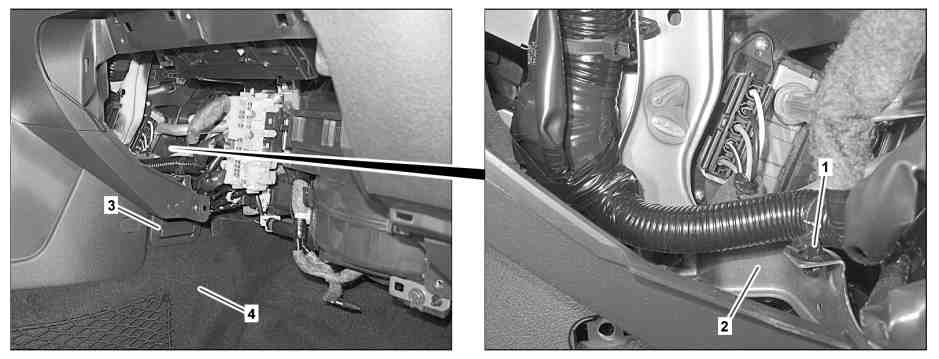

1

Mounting clip

3

Footwell vent

2

Strut

4

Floor covering

2

Strut

6

Screw

8

Electrical connector

5

Bolts

7

PTC heater booster

 Warning

Risk of injury. Skin or eye injuries may result when handling hot or glowing objects.

Wear protective gloves, protective clothing and safety glasses, if necessary.

AS00.00-Z-0002-01A

 Caution

Risk of injury caused by scraping or cutting body parts on sharp vehicle parts

Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.

AS00.00-Z-0017-01A

Topical note

Notes on carrying out repair work in the vehicle interior

AH68.00-N-0001-01S

 

Remove/install

1.1

Move selector lever to rearmost position.

Model 470 with transmission 700.770

1.2

Move gearshift lever to rearmost position.

Model 470 with transmission 700.780

2.1

Remove cover at selector lever.

Model 470 with transmission 700.770

AR68.20-S-2309P

2.2

Detach boot of gearshift lever from center console and pull over shift lever knob.

Model 470 with transmission 700.780

AR26.60-S-6602P

3

Release center console and place slightly toward rear with connected electric lines.

AR68.20-S-2000P

4

Switch off ignition and store transmitter key outside of transmission range (min. 2  m).

5

Remove glove compartment housing.

AR68.10-S-1400P

6

Remove differential lock control unit.

Model 470 with code A71 (Rear axle differential lock)

AR35.40-S-7501P

7

Unclip retaining clip (1) from strut (2).

8

Remove footwell trim on front passenger side.

AR68.30-S-4010P

9

Remove footwell vent (3) on front passenger side.

10

Release velcro fasteners of floor covering (4) in front area of front passenger footwell and fold over floor covering (4) toward rear.

11

Remove bolts (5).

12

Remove screw/bolts (6).

13

Pull strut (2) carefully away from transmission tunnel and pull PTC heater booster (7) out of air conditioner housing far enough until the electrical connector (8) can be disconnected.


Pull the strut (2) away carefully and do not deform it permanently.
Otherwise the strut (2) will be damaged.

14

Disconnect electrical connector (8).

15

Pull strut (2) carefully away from transmission tunnel and pull PTC heater booster (7) out of air conditioner housing.


Pull the strut (2) away carefully and do not deform it permanently.
Otherwise the strut (2) will be damaged.

16

Install in the reverse order



Check

17

Perform function check on PTC heater booster (7).
