Model | 900 |
with code HH9 (Air conditioner, automatic heater control) | |
Model | 906.633/655/657 as of 4/14/14 |
with code HK4 (Rear air conditioning, reinforced) | |
with code IR4 (Wheelbase 3665 mm) | |
with code ZL3 (National version for Latin America) | |
except code XM0 (Facelift) | |
except code XM5 (Facelift Latin America) | |
Model | 906 |
with code HH7 (Roof-mounted air conditioning system, basic) | |
with code HH9 (Air conditioner, automatic heater control) | |
except code XM0 (Facelift) | |
except code XM5 (Facelift Latin America) | |
Model | 906 |
with code HH9 (Air conditioner, automatic heater control) | |
except code HH7 (Roof-mounted air conditioning system, basic) | |
except code XM0 (Facelift) | |
except code XM5 (Facelift Latin America) |

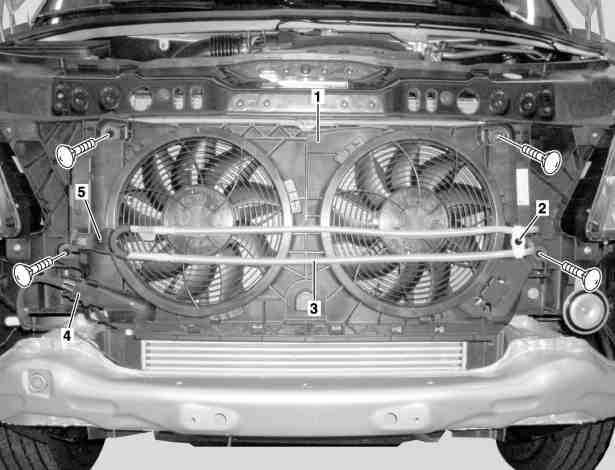

1 | Fan unit |
2 | Screw |
3 | Power steering oil line |
4 | Electrical connector |
5 | Bracket |
D83.30-1189-06
| Remove/install | ||
1 | Remove radiator grille | Model 900, 906 | |
MODEL 906 with CODE ZX8 (Dodge brand scope) or with CODE ZX9 (Freightliner (FTL) brand scope) | |||
MODEL 906 except CODE ZX8 (Dodge brand scope) and except CODE ZX9 (Freightliner (FTL) brand scope) | |||
2 | Remove front bumper |
| |
Model 900, model 906 except code ZX8 (Dodge brand scope) except code ZX9 (Freightliner (FTL) brand scope) | |||
3 | Remove screw/bolt (2) at bracket of power steering oil line (3) | ||
4 | Remove bracket (5) at fan unit (1) and guide power steering oil line (3) to one side | ||
5 | Disconnect electrical connector (4) at fan unit (1) | ||
6 | Remove screws/bolts from fan unit (1) and remove fan unit (1) from condenser | ||
7 | Install in the reverse order |
