AR68.30-P-4782QBS | Remove/install paneling belt in rear | 26.6.07 |
MODEL 209 with CODE (P98) Black Series

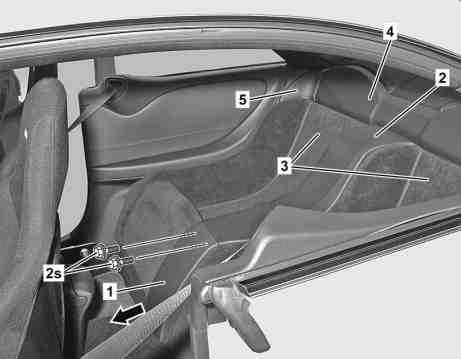

P68.30-3320-11
1 Lower paneling
2 Upper paneling
2s Bolts
3 Seat shells
4 Paneling
5 Paneling
| Remove/install | ||
1 | Unclip lower paneling (1) and remove; for this purpose, pull toward front at bottom (arrow) | ||
2 | Unscrew bolts (2s) and remove upper paneling (2) | ||
3 | Unclip paneling (4) and remove | ||
4 | Unclip panelings (5) and remove | ||
5 | Unclip seat shells (3) and remove | The seat shells are clipped in at 4 points and can only be unclipped with high force. | |
6 | Install in the reverse order |
