Remove/install center module
ประเภท ar · หัวข้อ 68.10 · เวอร์ชัน 0103 · 2018-09-19
ใช้กับ: Model 963 with code F2C (Floor variant, tunnel 320 mm) except code D1Z (Centre seat, with seat belt) except code F2A (Floor variant, flat floor) except code F2B (Floor variant, tunnel 170 mm) Model 964 with code F2C (Floor variant, tunnel 320 mm) except code D1Z (Centre seat, with seat belt) except code F2A (Floor variant, flat floor) except code F2B (Floor variant, tunnel 170 mm) except code G5H (Gearshift, manual)
ไม่มีใน “th” แสดงเป็น อังกฤษ
ตำแหน่ง
กลุ่มฟังก์ชัน 3 Body › 68 Interior equipment › 68.10 Instrument panel — ซีรีส์ 963 · ซีรีส์ 964
EinPAS 37 Interior equipment › 37.15 Instrument panel › 37.15.44 Instrument panel/cover/trim/carrier — ซีรีส์ 963 · ซีรีส์ 964
AR68.10-W-1004HC
| Remove/install center module
| 03.09.2018
|
Model
| 963
|
|
| with code F2C (Floor variant, tunnel 320 mm)
|
|
| except code D1Z (Centre seat, with seat belt)
|
|
| except code F2A (Floor variant, flat floor)
|
|
| except code F2B (Floor variant, tunnel 170 mm)
|
Model
| 964
|
|
| with code F2C (Floor variant, tunnel 320 mm)
|
|
| except code D1Z (Centre seat, with seat belt)
|
|
| except code F2A (Floor variant, flat floor)
|
|
| except code F2B (Floor variant, tunnel 170 mm)
|
|
| except code G5H (Gearshift, manual)
|

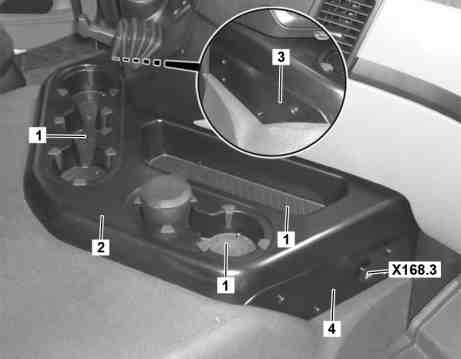

Shown on vehicle with socket
|
1
| Insert
|
2
| Center module
|
3
| Cover
|
4
| Cover
|
X168.3
| Footwell socket 24V
|
| Remove/install
|
|
|
1
| Remove cover (3).
|
|
|
2
| Remove cover(4).
|
|
|
3
| Switch off ignition and disconnect electrical connectors from sockets installed on cover (4).
| Only for vehicles with sockets.
|
|
4
| Remove inserts (1).
|
|
|
5
| Remove center module (2).
| Bolt, center module to carrier for center module
| *BA68.10-N-1005-03A
|
6
| Install in the reverse order
|
|
|
Number
| Designation
|
| Model 963, 964
|
BA68.10-N-1005-03A
| Bolt, center module to carrier for center module
| Nm
| 2
|
