Disconnect/connect battery's ground cable

AR54.10-P-0003A

Disconnect/connect battery's ground cable

10.2.06

1.1

Open engine hood

Model 163

1.2

Open battery cover in passenger side footwell

Model 168, 414

1.3

Remove rear seat

Model 210.0

AR91.12-P-1700F

1.4

Fold rear seat cushion forwards and remove battery compartment cover

Type 210.2

1.5

Flip up trunk luggage cover

Model 202.01/02/03/12/13, 208

1.6

Remove cargo space cover

Model 202.07/08/09/18/19

1.7

Remove battery cover in right-hand side of trunk

Model 129

2

Disconnect battery ground cable

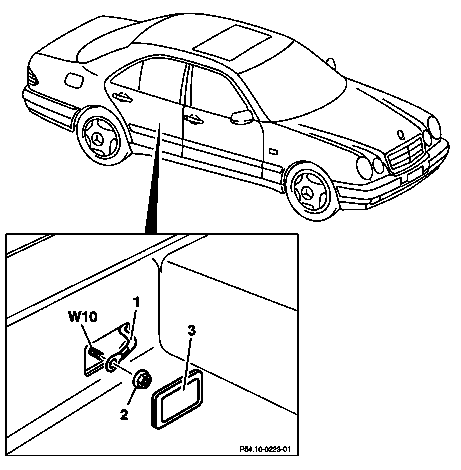

Model 163, 210: Insulate terminal of ground cable to avoid unintentional contact between the ground cable (1) and the ground point W10 (model 210) or W16/4 (model 163).

Connect quiescent current retention unit if necessary.

Model 170   ,

Model 202  up to 02/97,

Model 210   up to 02/97,

Model 129   :

After opening the vehicle, wait for at least 4 minutes before disconnecting the battery,

otherwise the alarm will be triggered.

3

Connect ground cable

 Model 163: Tighten the nut (5) of the ground line (1) to the specified torque.

Perform the following operations only if no quiescent current retention unit was connected.

 Model 163

*BA54.10-P-1017-01C

4

code radio

MB Audio 5 (model 168).

Sound 10, 20, 30 radio and Audio 10 comfort radio, D2B networked (model 414.600/700)

AR82.60-P-7502-01GC

Becker 2000 (models 202, 210, 129)

AR82.60-P-7502-01A

Becker Mexico, Grand Prix, Europa, Avus (model 129)

AR82.60-P-7502-01C

MB (models 163, 170, 202, 208, 210)

AR82.60-P-7502-01B

Hi-Line, Premium with Bose (model 163)

AR82.60-P-7502-01GH

5

Set time on instrument cluster

 Set time on stationary heater time if necessary.

6.1

Activating steering angle sensor

Model 129, 163, 168, 210 with ADS
(code 217a)

AR46.10-P-0300-01A

Model 414.600/700

AR46.10-L-0300-01VA

7.1

Synchronize titling/sliding roof

Model 163 with code 414.

Open tilt/slide sunroof and hold down switch. Tilting/sliding roof mechanism moves to end position, pulls back 1/4 turn and stops.

8.1

Synchronize lamella roof

Model 163, 168 with code 417.

 Close the lamella roof and hold down the switch for 5 to 10 seconds.

9.1

Synchronize power windows

Model 163 as of VIN A289565, X754620
model 168, 414.600/700.

 Press the switch for the power windows to the 1st actuation point, and then hold down for another 5 seconds after the window has reached its top end position.

Number

Designation

Model
163

BA54.10-P-1017-01C

Nut, ground cable to body

Nm

18
