Check wheels for lateral and radial runout

AR40.10-W-1035H

Check wheels for lateral and radial runout

15.11.2019

Model

374.5/6, 375.1/3/4, 930, 932, 933, 934, 940, 942, 943, 944, 949, 950, 952, 953, 954, 956, 957, 959, 963, 964, 967, 970, 972, 974, 975, 976

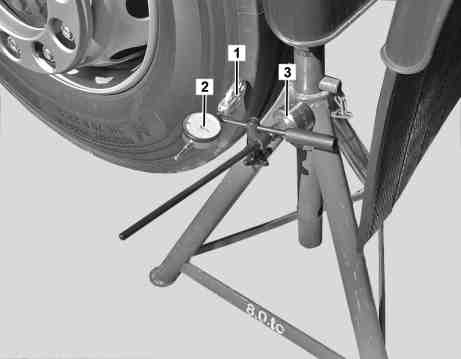

Check lateral runout

1

Check roller

2

Mount dial indicator

3

Dial indicator holder

Check radial runout

1

Check roller

2

Mount dial indicator

3

Dial indicator holder

 Danger

Risk of death caused by vehicle slipping or toppling off during lifting

Only lift vehicle at the lift support points specified by the vehicle manufacturer.

AS00.00-Z-0032-01A

Topical note

Special instructions for lifting and supporting vehicle

AH00.60-N-0100-01B



Check

1

Raise vehicle until the wheels to be tested can be turned, then secure with jack stands

2

Clean sidewall of tire

3

Attach dial indicator (2), dial indicator holder (3) and check roller (1), e.g. to a jack stand, and position on tire so that the lateral wheel runout can then be measured

 The check roller (1) must not be rolled in the area bearing the inscriptions on the tire.

 Dial indicator holder

*363589022100

 Check roller

*001589922100

 Dial gage

*001589532100

4

Turn wheel by hand, note the values displayed on the dial indicator (2), and determine a value for the lateral runout

Model 374.5/6, 375.1/3/4, 930, 932, 933, 934, 940, 942, 943, 944, 949, 950, 952, 953, 954, 957, 970, 972, 974, 975, 976Lateral runout on tire with rim-Ø (wheel mounted on vehicle)

*BE40.10-N-1002-01C

Model 956, 959, 963, 964, 967Lateral runout on tire with rim Ø (wheel mounted to vehicle)

*BE40.10-N-1002-01HA

5

Clean tread of tire

6

Attach dial indicator (2), dial indicator holder (3) and check roller (1), e.g. to a jack stand, and position on tire so that the radial wheel runout can then be measured

 Dial indicator holder

*363589022100

 Check roller

*001589922100

 Dial gage

*001589532100

7

Turn wheel by hand, note the values displayed on the dial indicator (2), and determine a value for the radial runout

Model 374.5/6, 375.1/3/4, 930, 932, 933, 934, 940, 942, 943, 944, 949, 950, 952, 953, 954, 957, 970, 972, 974, 975, 976Radial runout at tire with rim Ø (wheel mounted on vehicle)

*BE40.10-N-1001-01C

Model 956, 959, 963, 964, 967Radial runout on tire with rim Ø (wheel mounted to vehicle)

*BE40.10-N-1001-01HA

8

Remove measuring tools

9

Remove jack stands from vehicle and lower vehicle again

Check values for wheels, tires

Number

Designation

Model 374.4, 375.1, 958.0, 970, 972, 974, 975, 976

Model 374.5/6, 375.3/4, 930, 932, 933, 934, 940, 942, 943, 944, 949, 950, 952, 953, 954, 957, 958.2/4

BE40.10-N-1001-01C

Radial runout at tire with rim Ø (wheel mounted on vehicle)

17.5"

mm

< 1,3

–

19.5"

mm

< 1,8

< 1,8

20"/22,5"

mm

< 1,8

< 1,8

24"

mm

–

< 2,0

Check values for wheels, tires

Number

Designation

Model 956, 959, 963, 964, 967

BE40.10-N-1001-01HA

Radial runout on tire with rim Ø (wheel mounted to vehicle)

17.5"

mm

< 1,3

19,5"

mm

< 1,8

20"/22.5"

mm

< 1,8

24"

mm

< 2,0

Check values for wheels, tires

Number

Designation

Model 374.4, 375.1, 958.0, 970, 972, 974, 975, 976

Model 374.5/6, 375.3/4, 930, 932, 933, 934, 940, 942, 943, 944, 949, 950, 952, 953, 954, 957, 958.2/4

BE40.10-N-1002-01C

Lateral runout on tire with rim-Ø (wheel mounted on vehicle)

17.5"

mm

< 1,5

–

19.5"

mm

< 2,0

< 2,0

20"/22.5"

mm

< 2,0

< 2,0

24"

mm

–

< 2,2

Check values for wheels, tires

Number

Designation

Model 956, 959, 963, 964, 967

BE40.10-N-1002-01HA

Lateral runout on tire with rim Ø (wheel mounted to vehicle)

17.5"

mm

< 1,5

19,5"

mm

< 2,0

20"/22.5"

mm

< 2,0

24"

mm

< 2,2
