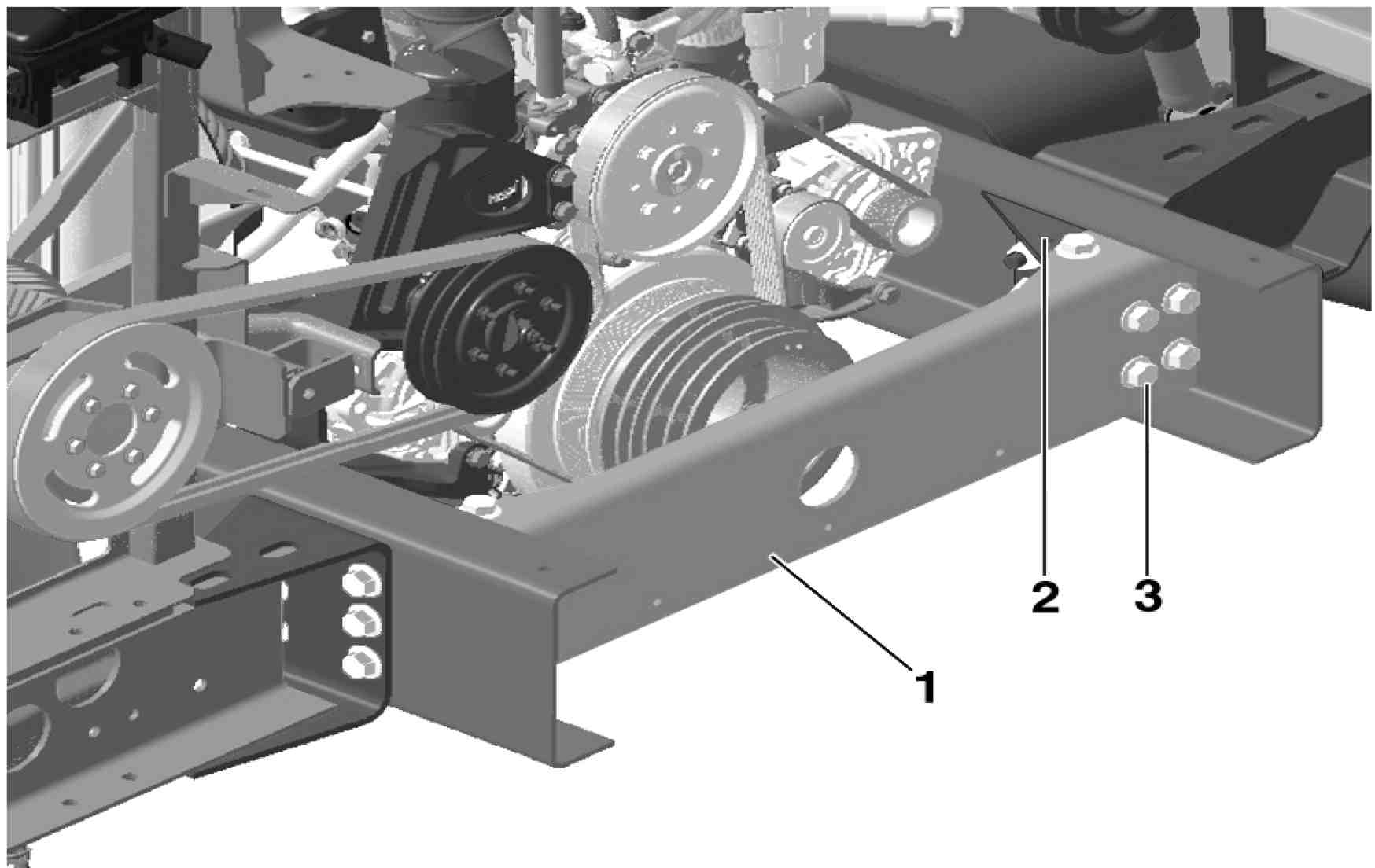

Represented on vehicle 368.1 |
1 | Rear cross member |
2 | Rear cross member bracket |
3 | Fastening screws |
B31.30-0005-11
| Remove/install | ||
1 | Removing the rear bumper | For some body models it will also be necessary to remove the rear lights. | |
2 | Remove the rear bumper supporting cross member | For some body models, the supporting crosspiece and the bumper form a single assembly. | |
3 | Remove the fastening screws (3) from the crosspiece bracket (2) | ||
4 | Remove the cross member (1) | .Framework screws | |
5 | Install in reverse order |
