AR26.50-D-0002-03B

Remove rear section of transmission housing from gear set

Modification notes

4.11.10

Use puller for detaching transmission housing rear section.

Remove rear section of transmission housing from gear set

Puller

711 589 03 33 00

Remove rear section of transmission housing from gear set

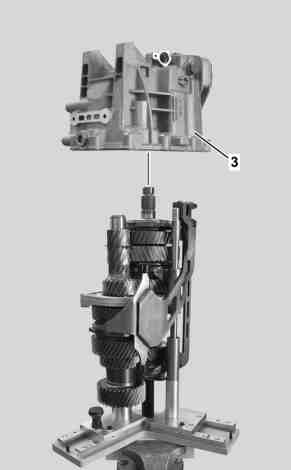

1 Use the puller to detach the transmission housing rear section (3) from the gear set.

To avoid damage to the sealing surface of the transmission housing rear section (3), attach jaws of puller with wood or plastic pads.

D26.50-1320-03
