AR14.40-P-2014-02LF | Empty, fill AdBlue tank | ||
| 000 588 01 71 00 Extraction pump | ||
| 000 588 01 71 00 Extraction pump | ||
| 000 588 01 71 00 Extraction pump | ||
| 000 588 07 82 00 Filling unit | ||
| 000 588 07 82 00 Filling unit | ||
| 000 588 07 82 00 Filling unit | ||
| 000 588 07 82 00 Filling unit | ||
| 000 588 07 82 00 Filling unit |

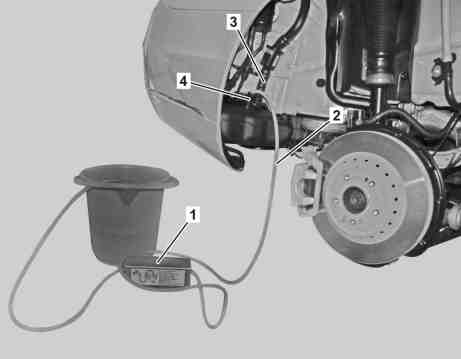

Draining
1 | Open fuel filler flap and remove cap from filler neck (3) of AdBlue® tank. |
2 | Unlock filler neck (3) and separate from fitting (4). |
When working on emission control system ensure scrupulous cleanliness. Dirt must not be allowed to find its way into the emission control system. |
3 | Insert extraction hose (2) into AdBlue® tank. |
Observe arrow for the direction of suction on the extraction pump (1). |
4 | Suction AdBlue® with extraction pump (1) and extraction hose (2) out of AdBlue® tank, catch it and dispose of it in an environmentally friendly manner. |
5 | Pull extraction hose (2) out of AdBlue® tank. |
6 | Connect filler neck (3) on fitting (4). |
When filling the AdBlue® tank. |
7 | Clean extraction pump (1) and extraction hose (2). |
Thoroughly flush out extraction pump (1) and extraction hose (2) with water. |
P14.40-2502-11
Filling from a container (05) (10 l can)
The filling tools are designed in such a way as to leave an unfilled space in the AdBlue® container after switching off. Never pour in further AdBlue® after switching off.
Otherwise damage may occur to the AdBlue® tank.
8 | Screw fitting (01) on connection (03) and close valves (02). |
9 | Finger tighten connection (04) on container (05) and connection (03) on filler neck (3) of AdBlue® tank. |
10 | Lift container (05), open valves (02) and fill AdBlue® tank. |
Repeat process if necessary with further containers (05). No further AdBlue® will flow when the AdBlue® container is full. |
11 | Close valves (02), unscrew connections (03, 04) and dispose of empty container (05) in an environmentally friendly manner. |
12 | Attach cap to filler neck (3) of AdBlue® tank. |
13 | Remove rest of the AdBlue® with water and close fuel filler door. |
14 | Clean filling tool. |
Thoroughly rinse filling tool with water. |
P14.40-2387-01
Filling from a container (06) (5 l can) with disposable hose (07)
The filling tools are designed in such a way as to leave an unfilled space in the AdBlue® container after switching off. Never pour in further AdBlue® after switching off.
Otherwise damage may occur to the AdBlue® tank.
15 | Screw disposable hose (07) finger-tight onto container (06) and onto filler neck (3) of AdBlue® tank. |
16 | Lift container (06) and fill AdBlue® tank. |
Repeat process if necessary with further containers (06). No further AdBlue® will flow when the AdBlue® container is full. |
17 | Unscrew disposable hose (07) from filler neck (3) of AdBlue® tank and dispose of empty container (06) and disposable hose (07) in an environmentally friendly manner. |
18 | Attach cap to filler neck (3) of AdBlue® tank. |
19 | Remove rest of the AdBlue® with water and close fuel filler door. |
P14.40-2479-01
Fill out of the AdBlue® bottle (08)
The filling tools are designed in such a way as to leave an unfilled space in the AdBlue® container after switching off. Never pour in further AdBlue® after switching off.
Otherwise damage may occur to the AdBlue® tank.
20 | Remove cover from AdBlue® bottle (08) and screw AdBlue® bottle (08) finger-tight onto filler neck (3) of AdBlue® tank. |
21 | Press AdBlue® bottle (08) onto filler neck (3) of AdBlue® tank and fill AdBlue® tank. |
Repeat process if necessary using further AdBlue® bottles (08). No further AdBlue® will flow when the AdBlue® container is full. |
22 | Unscrew AdBlue® bottle (08) from filler neck (3) of AdBlue® tank and dispose of empty AdBlue® bottles (08) in an environmentally friendly manner. |
23 | Attach cap to filler neck (3) of AdBlue® tank. |
24 | Remove rest of the AdBlue® with water and close fuel filler door. |
P14.40-2480-01
