AR14.00-P-5303A

Remove/install the oxygen sensor

25.1.12

ENGINE 112.910 in MODELS 202.026 /086

ENGINE 112.920 in MODELS 202.029 /089

ENGINE 112.940 in MODELS 208.365 /465

ENGINE 112.921 in MODELS 210.063 /263 /081 /281

ENGINE 112.941 in MODELS 210.065 /082 /265 /282

ENGINE 113.940 in MODELS 210.070 /270

ENGINE 113.980 in MODELS 210.074 /274

ENGINE 113.944 in MODELS 202.033 /093

ENGINE 113.943 in MODELS 208.370 /470

ENGINE 113.984 in MODEL 208.374

Remove/install the oxygen sensor
Remove/install the oxygen sensor

P14.00-0261-01

Model 202/ 208

Left picture

G3/3 Left oxygen sensor, upstream of TWC

Diagram right

G3/4 Right oxygen sensor upstream of TWC

P14.00-0262-01

Remove/install the oxygen sensor

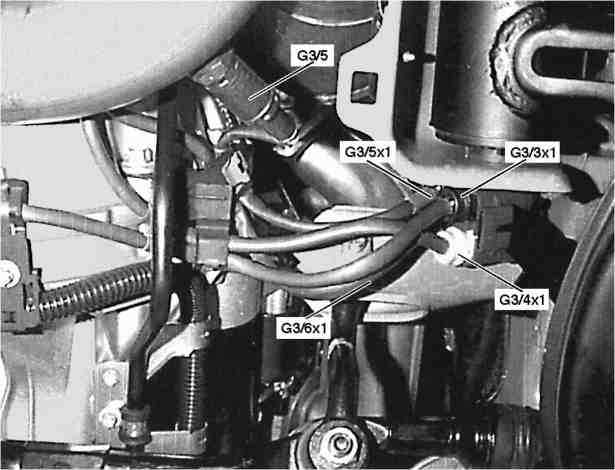

P14.00-0263-06

Model 202/ 208

G3/3x1 Left oxygen sensor connector upstream of TWC

G3/4x1 Right oxygen sensor connector upstream of TWC

G3/5 Left diagnostic sensor

G3/5x1 Left diagnostic sensor connector

G3/6x1 Right diagnostic sensor connector

Remove/install the oxygen sensor

P14.00-0265-01

Location of diagnostic sensors, Model 202/ 208

G3/5 Left diagnostic sensor

G3/6 Right diagnostic sensor

G3/5x1 Left diagnostic sensor connector

G3/6x1 Right diagnostic sensor connector

Remove/install the oxygen sensor
Remove/install the oxygen sensor

P14.00-0249-01

Shows model 210.081/082

Diagram left

G3/3 Left oxygen sensor, upstream of TWC

Diagram right

G3/4 Right oxygen sensor upstream of TWC

P14.00-0250-01

Remove/install the oxygen sensor

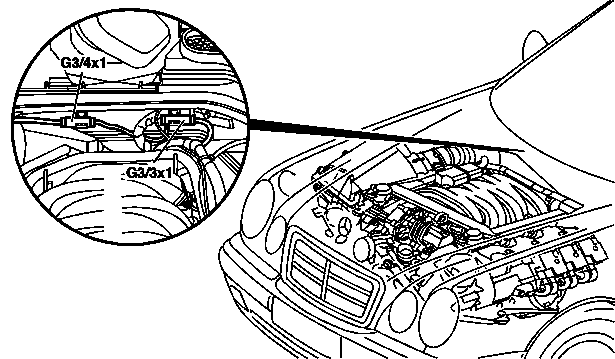

P14.00-0248-05

Illustration is model 210.063/263/065/265/281/282

G3/3x1 Left oxygen sensor connector upstream of TWC

G3/4x1 Right oxygen sensor connector upstream of TWC

Remove/install the oxygen sensor

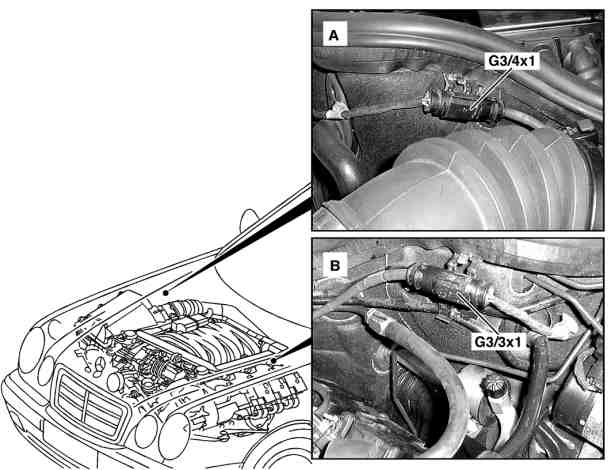

P14.00-0267-06

Models 210.070/074/270/274

Fig. A

G3/4x1 Right oxygen sensor connector upstream of TWC

Fig. B

G3/3x1 Left oxygen sensor connector upstream of TWC

Modification notes

10.11.04

Value changed from 55 Nm to 45 Nm

Value in series 1001 for engine 112.910/911/
912/913/914/915/916/920/921/922/923/
940/941/942/943/944/945/946/947/949/
953/955/960/961/970/972/973/975

*BA14.00-P-1001-01A

Fig. item etc.

Work instructions

G3/3x1, G3/4x1

Plug connection

G3/3, G3/4

Oxygen sensor

Installation: Coat thread on oxygen sensor with heat-resistant lubricant.

*BR00.45-Z-1005-06A

*BA14.00-P-1001-01A

*000589710300

O2 sensor

Number

Designation

Engines 112.910/911/
912/913/914/
915/916/920/
921/922/923/
940/941/942/
943/944/945/
946/947/949/
953/955/960/
961/970/972/
973/975

Engines 113.940/941/
942/943/944/
948/960/961/
962/963/964/
965/966/967/
968/980/981/
982/984/986/
992/993/995

BA14.00-P-1001-01A

O2 sensor on exhaust pipe/ exhaust manifold

Nm

45

55

Remove/install the oxygen sensor

000 589 71 03 00

Ring wrench socket

Repair materials

Number

Designation

Order number

BR00.45-Z-1005-06A

Paste, hot lubrication 1 kg, DB supply specification 6879.20

A 000 989 76 51
