Check TIREFIT tire sealant

AP40.10-P-4054R

Check TIREFIT tire sealant

18.02.2019

Model

117, 118, 156, 163, 164, 166, 167, 168, 169, 170, 171, 172, 176, 177, 190, 197, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 230, 231, 238, 240, 242, 245, 246, 247, 251, 253, 257, 290, 292, 293, 414

Model

463

with code LQ0 (G650 Landaulet)

Model

463

with code MUK2 (USA or Canada vehicle model designation)

Model

463

with code ZQ0 (G 500 4x42)

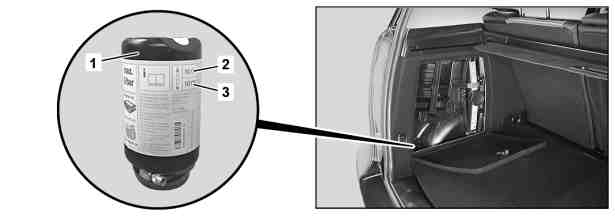

TIREFIT (1) in trunk recess, shown in model 211.2, valid for model 117, 118, 156, 164, 166, 167, 168, 170, 171, 172, 176, 177, 203.0/7, 204.0/2/3, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 230, 231, 238, 240, 242, 246, 247, 251, 257, 290, 292, 293

1

TIREFIT

3

Expiration date

TIREFIT (1) behind side trim shown on left in model 169, valid for model 163, 169, 197, 204.9, 245, 253, 414

1

TIREFIT

3

Expiration date

TIREFIT (1) behind side trim shown on left in model 190

1

TIREFIT

3

Expiration date

TIREFIT (1) behind side trim shown on right in model 203.2

1

TIREFIT

3

Expiration date

TIREFIT (1) in side box shown on right in model 463 with code ZQ0 (G500 4x42), valid for model 463 with code LQ0 (G650 Landaulet), 463 with code MUK2 (Vehicle model designation U.S.A. or Canada), 463 with code ZQ0 (G500 4x42)

1

TIREFIT

3

Expiration date

 Warning

Risk of poisoning caused by swallowing the TIREFIT emulsion. Risk of injury caused by skin contact and eye contact with the TIREFIT emulsion. Risk of fire caused by ignition of the TIREFIT emulsion

Do not swallow or come into contact with the TIREFIT tire sealant, which is an emulsion of rubber and terpene phenolic resin. No open flames or open light sources.

AS40.10-Z-0001-01A

TIREFIT tire sealant

AH40.10-P-0001-01A



Remove

1

Remove TIREFIT (1).



Check

2

Check whether TIREFIT (1) was used.

If TIREFIT (1) was used,



replace TIREFIT (1) and dispose of used TIREFIT (1) properly.

 After obtaining special order.

3

Check expiration date (3).

If the expiration date (3) has been reached, exceeded or will be reached or exceeded within the next service interval:



replace TIREFIT (1) and dispose of used TIREFIT (1) properly.

 After obtaining special order.



Install

4

Insert TIREFIT (1).
