AP09.00-B-0953G

Inspect intake line between air filter and engine for leaks and proper condition

05.07.2019

Engine

374 in model 693.023

Engine

377 in model 693.108/127/128/144/182/184/191/195, 694.004/024/041/047, 695.013/014/015/016/043/301/302

Engine

904 in model 693.028/103/171/185/186, 694.020

Engine

906 in model 693.148, 695.010/011/304

Engine

924 in model 695.010/011/304

Inspect intake line between air filter and engine for leaks and proper condition

Engine 374.9 - Vehicles with advanced cab

B09.10-0065-01

Inspect intake line between air filter and engine for leaks and proper condition

Engine 372.9, 376.9, 377.9 - Vehicles with advanced cab

B09.10-0064-01

Inspect intake line between air filter and engine for leaks and proper condition

Engine 372.9, 376.9, 377.9 - Vehicles with advanced cab

B09.10-0069-01

Inspect intake line between air filter and engine for leaks and proper condition

Engine 376.9 - Vehicles with advanced cab - Example

B09.10-0068-01

Inspect intake line between air filter and engine for leaks and proper condition
Inspect intake line between air filter and engine for leaks and proper condition

Engine 372.9, 377.9 - Vehicles with semi-advanced cab

B09.10-0066-01

B09.10-0067-01

Inspect intake line between air filter and engine for leaks and proper condition
Inspect intake line between air filter and engine for leaks and proper condition

Engine 906.924 - Model 693.386/396

B09.10-0033-01

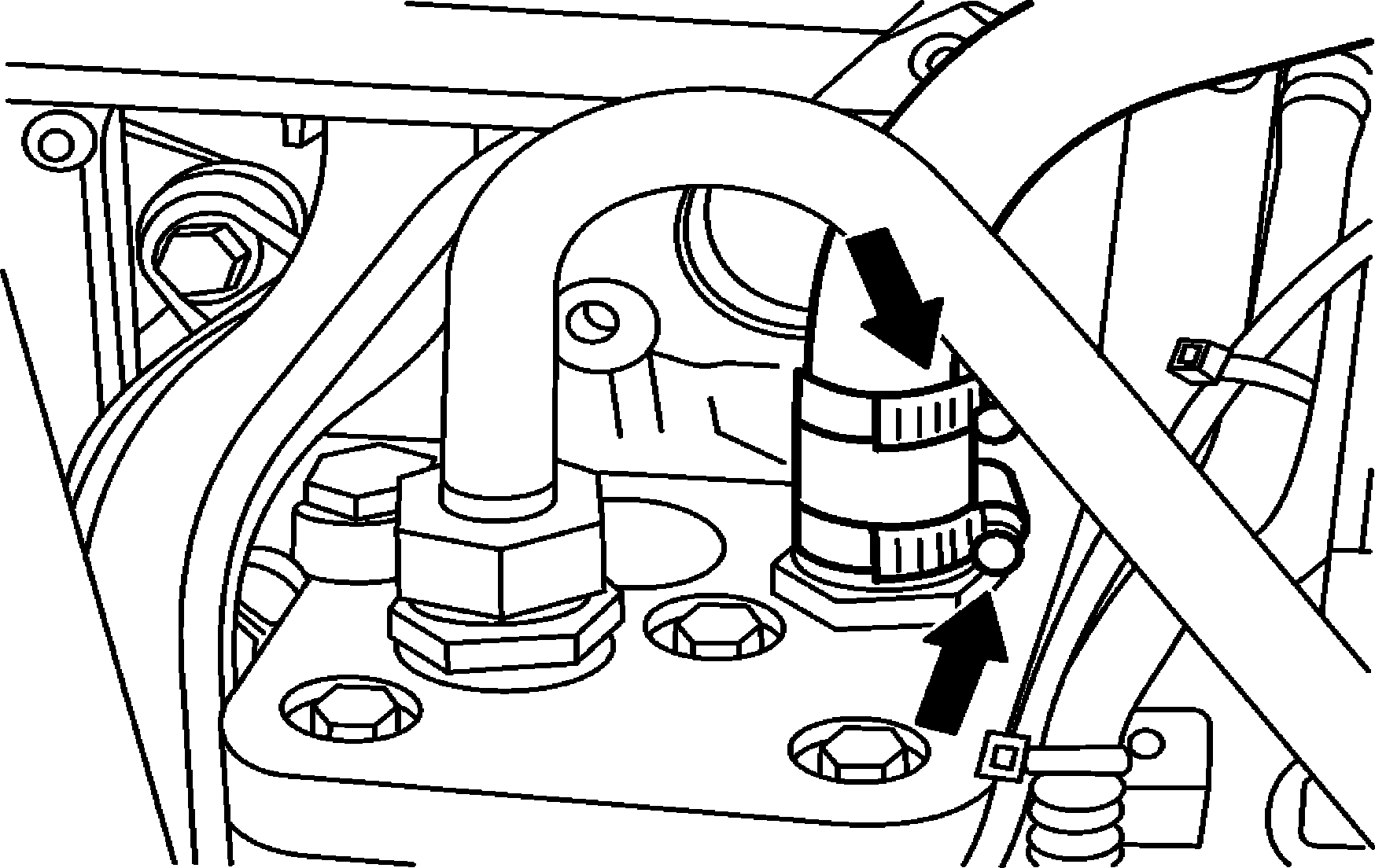

B09.10-0034-01

Inspect intake line between air filter and engine for leaks and proper condition
Inspect intake line between air filter and engine for leaks and proper condition

Engine 904.9, 906.9

B09.10-0004-01

B09.10-0061-01

Check

1

Tilt the cabin.

Engine 374 , 377, 904, 906, 924

AR60.80-B-0010A

Should it be necessary, replace the pipes, the hoses and clamps in general.

2

Tilt the engine hood

Type 694.004/024/041/047, 695.013/014/015/016/043/301/302, 694.020, 695.010/011/304

AR88.40-B-1000A

3

Check the hoses and intake ducts between the air filter and the engine for damages or friction against other parts.
