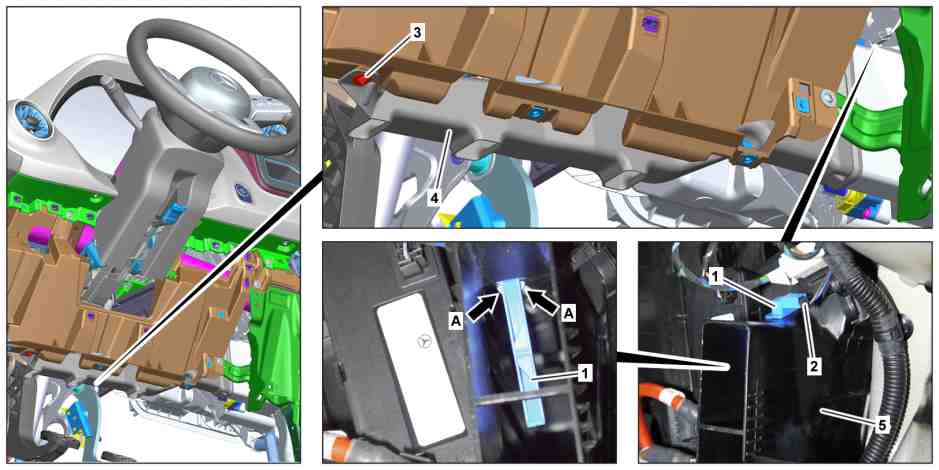

D83.30-1288-79
1 | Temperature sensor | 4 | Air duct | |
2 | Electrical connector | 5 | AC housing | |
3 | Screw |
Topical note | Notes on carrying out repair work in the vehicle interior | ||
Topical note | Information on preventing damage to electronic components due to electrostatic discharge | ||
| Remove/install | ||
1 | Remove bottom trim for instrument panel on driver's side. | ||
2 | Remove center trim on instrument panel. | ||
3 | Remove screw (3). | ||
4 | Remove air duct (4). | ||
5 | Release temperature sensor (1) at catch hook (arrows A) and remove upward out of air conditioner housing (5) until the electrical connector (2) is accessible. | ||
6 | Disconnect electrical connector (2) and remove temperature sensor (1). | ||
7 | Install in the reverse order. | ||
| Check | ||
8 | Run function test of air conditioning system. |
