Preparing right outer corner pillar paneling for installation

AR64.30-D-5724-03F

Preparing right outer corner pillar paneling for installation

Model

909

Repair materials

Number

Designation

Order number

BR00.45-Z-1001-07A

Zinc dust paint suitable for spot welding

A 000 986 34 42

1

Mark separating lines (15) parallel to roof drip molding (6) at a distance of approx. 100 mm.

2

Separate corner pillar paneling right outer bottom section (1) along marked lines (15).

3

Drill hole (17) as shown.

 Dimensions:
a = 10 mm
b = 10 mm

4

Drill marked hole (17) with Ø 6 mm bit.

5

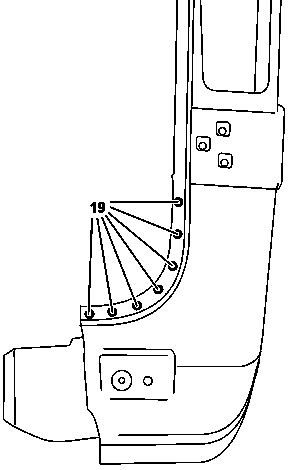

Drill Ø 6 mm seven holes (19) at marked points.

6

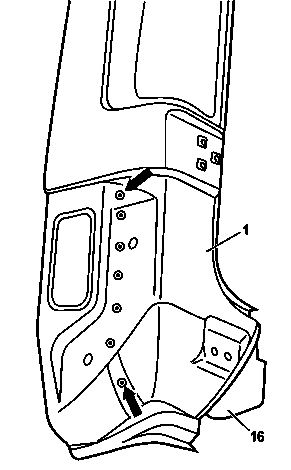

Cut out spot welds at right outer corner pillar paneling (1) with  spot weld milling cutter (arrows) and remove stiffening plate (16).

7

Grind right outer corner pillar paneling (1) in marked areas (18) down to bare metal on both sides and coat with .

8

Grind right outer corner pillar paneling (1) in marked areas (18) down to bare metal on both sides and coat with .

9

Fit right outer corner pillar paneling (1), align and clamp.
