Separating right outer corner pillar paneling

AR64.30-D-5724-01F

Separating right outer corner pillar paneling

MODEL

909

1

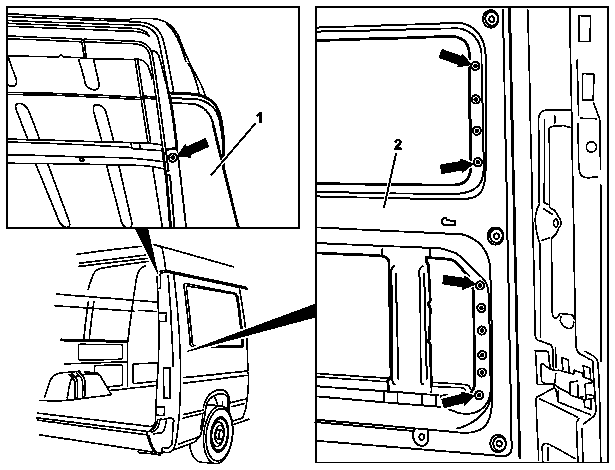

Expose spot welds on right outer corner pillar paneling (1) and cut out with  spot weld milling cutter (arrows).

2

Cut out spot welds on right outer corner pillar paneling (1) and side wall inner section (2) with  spot weld milling cutter (arrows).

3

Expose spot welds on right outer corner pillar paneling (1) and cut out with  spot weld milling cutter (arrows).

4

Expose spot welds on right outer corner pillar paneling (1) and cut out with  spot weld milling cutter (arrows).

5

Mark separating line (3) parallel to roof drip molding (6) at a distance of approx. 100 mm.

6

Mark separation line (14).

7

Separate right outer corner pillar paneling (1) along marked separation line (3).

8

Separate right outer corner pillar paneling (1) along separation line (14) on end plate (5).

9

Mark separation line (7) as shown.

10

Separate right outer corner pillar paneling (1) along separation line (7) on side wall paneling (4).

11

Remove right outer corner pillar paneling (1).
