Remove/install oil pan

AR26.10-B-0004DT

Remove/install oil pan

03.07.2019

Transmission

712.820/830 in model 963

1

Filler plug

3

Oil pan

2

Drain plug

4

Gearbox

5

Oil sieve

 

Remove/install

1

Remove the oil pan screws (3)

 .Oil pan bolt

*BA26.10-B-1007-01MB

2

Remove the oil sieve (3) from the gearbox (4)

 During removal, it might be necessary to tap the oil pan (3) using a rubber hammer to release the seal.

 Installation: Clean the contact surface from any residue remaining from the previous seal.

 Installation: Apply seal to the whole oil pan surface (3).

Loctite 5203 surface sealant

*BR00.45-Z-1129-02A

3

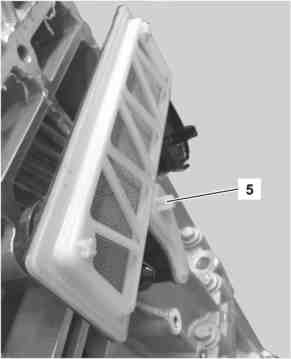

Remove the oil sieve (5)

 Installation:
Whenever possible, when changing the oil, change the oil sieve (5) with a new one.
If it is saturated with metal particles or used oil residues, there will be contamination of the new gearbox oil (4), which can cause internal components to wear out.

 Installation: Replace the O-ring in the oil sieve (5). Make sure that the oil sieve (5) fits tightly into the gearbox holes (4).



Check

4

Check the oil pan (3)

 Check for cracks, wear or other conditions that could cause oil leakage.

If it has any damage:



Replace this with a new one.

5

Check the oil sieve (5)

Thoroughly clean the oil sieve (5) if it is heavily contaminated with impurities:



Replace with a new one.

6

Install in reverse order

 G291-G340

Number

Designation

Gearbox 712.820/830 in the vehicle 963

BA26.10-B-1007-01MB

Oil pan bolt

Nm

58

Repair materials

Number

Designation

Order number

BR00.45-Z-1129-02A

Loctite 5203 surface sealant

Henkel AG & Co. KGaA
http://www.loctite.de
