Check air suspension bellows for tight seating

Tipo ap · tema 55.50 · versione 0200 · 2016-02-12

Valido per: Vehicle 382.153Vehicle 382.154, 382.155, 382.157, 382.158

Non disponibile in “it”; mostrato in Inglese.

Collocazione

Gruppo funzionale 2 Telaio › 55 Azionamenti supplementari, sistemi idraulici e di articolazione › 55.50 Sistemi di articolazione — Serie 382 (modelli 153, 154, 155, 157, 158)

EinPAS 35 Carrozzeria/telaio/parti applicate › 35.55 Sistema di articolazione/corona girevole › 35.55.50 Soffietto — Serie 382 (modelli 153, 154, 155, 157, 158)

AP55.50-B-5557A

Check air suspension bellows for tight seating

12.02.16

Vehicle 382.153

Vehicle 382.154, 382.155, 382.157, 382.158

Check air suspension bellows for tight seating

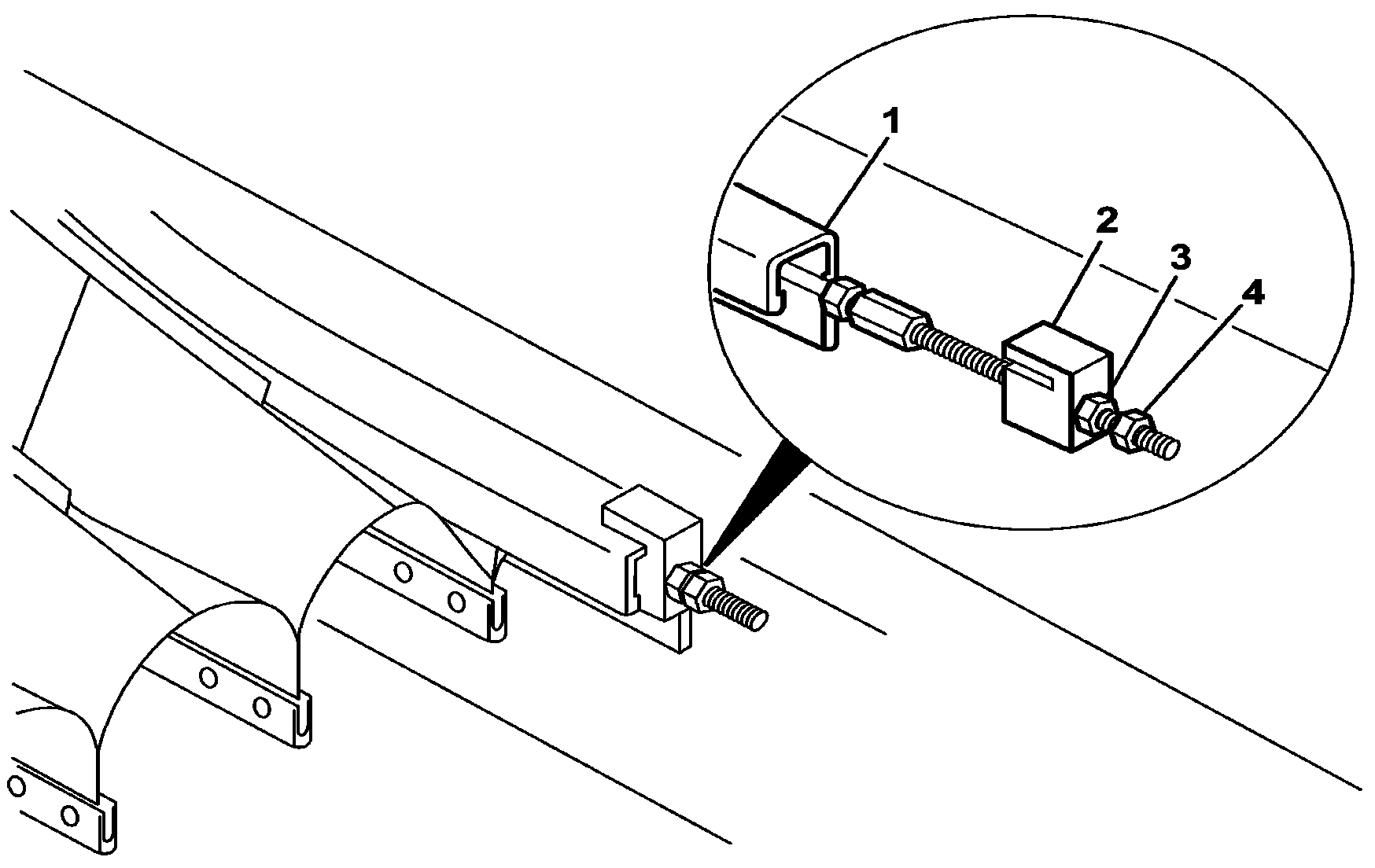

B55.50-0005-11

1 Fastening clamp

2 Stretcher

3 Nut

4 Locknut

Remove

1

Remove the fitting floor from under the articulation

Check

2

Check the seating of the bellows to the fastening clamp (1) of the front and rear carrier and on center arc

3

Check if there is play between the stretcher (2) of the wire rope and the fastening clamp (1)

If there is play, eliminate it carefully tightening the nut (3) of the stretcher (2).

4

Tighten the locknut (4)

*BA55.50-B-1013-01A

Install

5

Install the fitting floor

Steering system

Número

Denominação

Models 382.154/155/157, 382.158

BA55.50-B-1013-01A

Stud retention bolts of the support cylinders

Nm

50
