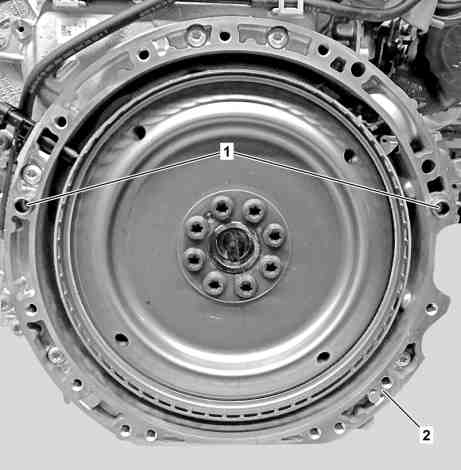

Shown on model 447 with engine 651 |
1 | Guide sleeves |
2 | Timing case cover |
S27.00-A000-12

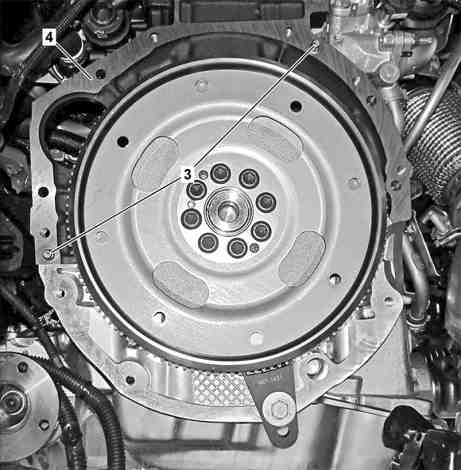

Shown on model 470 with engine 699 |
3 | Guide pins |
4 | Crankcase |
S27.00-A001-12
Due to recent events, we would like to notify you about the procedure for installation of the automatic transmission.
Before installation of the automatic transmission, you must ensure that all pilot bushings (1) or guide pins (3) are installed at the crankcase (4) or timing case cover (2). If a pilot bushing (1) or guide pin (3) was pulled out as well during removal of the automatic transmission, the pilot bushing (1) or guide pin (3) must be reinstalled at the crankcase (4) or timing case cover (2) and checked to ensure correct seating.
The automatic transmission may not be installed without pilot bushings (1) or guide pins (3).
Otherwise, there may be damage to the drive plate of the torque converter.
If a pilot bushing (1) or guide pin (3) is not correctly installed at the crankcase (4) or timing case cover (2) or is damaged, the pilot bushing (1) or guide pin (3) must be replaced.
