Location/task/design/function of steering gear

Type gf · topic 46.20 · version 0100 · 2016-02-12

Applies to: Steering gear 766.373, 766.375, 766.376, 766.377, 766.378, 766.379, 766.380, 766.381, 766.382, 766.383, 766.385, 766.387, 766.388, 766.394, 766.396, 766.397, 766.399Steering gear 766.421, 766.422, 766.465, 766.469, 766.471, 766.477, 766.481, 766.482, 766.483, 766.484, 766.485, 766.486, 766.487, 766.488, 766.489, 766.495, 766.496, 766.497, 766.498, 766.499Steering gear 766.584

Where it sits

Function group 2 Chassis › 46 Steering › 46.20 Steering gear

EinPAS 22 Steering › 22.15 Power steering › 22.15.42 Steering gear/steering shaft

Also applies to engines/gearboxes: 766 376, 766 379, 766 396, 766 397, 766 399, 766 421, 766 422, 766 465, 766 469, 766 471, 766 477, 766 481, 766 482, 766 483, 766 484, 766 485, 766 486, 766 487, 766 488, 766 489, 766 495, 766 496, 766 497, 766 498, 766 499, 766 584

GF46.20-B-2100A

Location/task/design/function of steering gear

12.02.16

Steering gear 766.373, 766.375, 766.376, 766.377, 766.378, 766.379, 766.380, 766.381, 766.382, 766.383, 766.385, 766.387, 766.388, 766.394, 766.396, 766.397, 766.399

Steering gear 766.421, 766.422, 766.465, 766.469, 766.471, 766.477, 766.481, 766.482, 766.483, 766.484, 766.485, 766.486, 766.487, 766.488, 766.489, 766.495, 766.496, 766.497, 766.498, 766.499

Steering gear 766.584

Location/task/design/function of steering gear

B46.20-0055-12

Cut section of the steering gear ZF - SERVOCOM

Location/task/design/function of steering gear

B46.20-0056-06

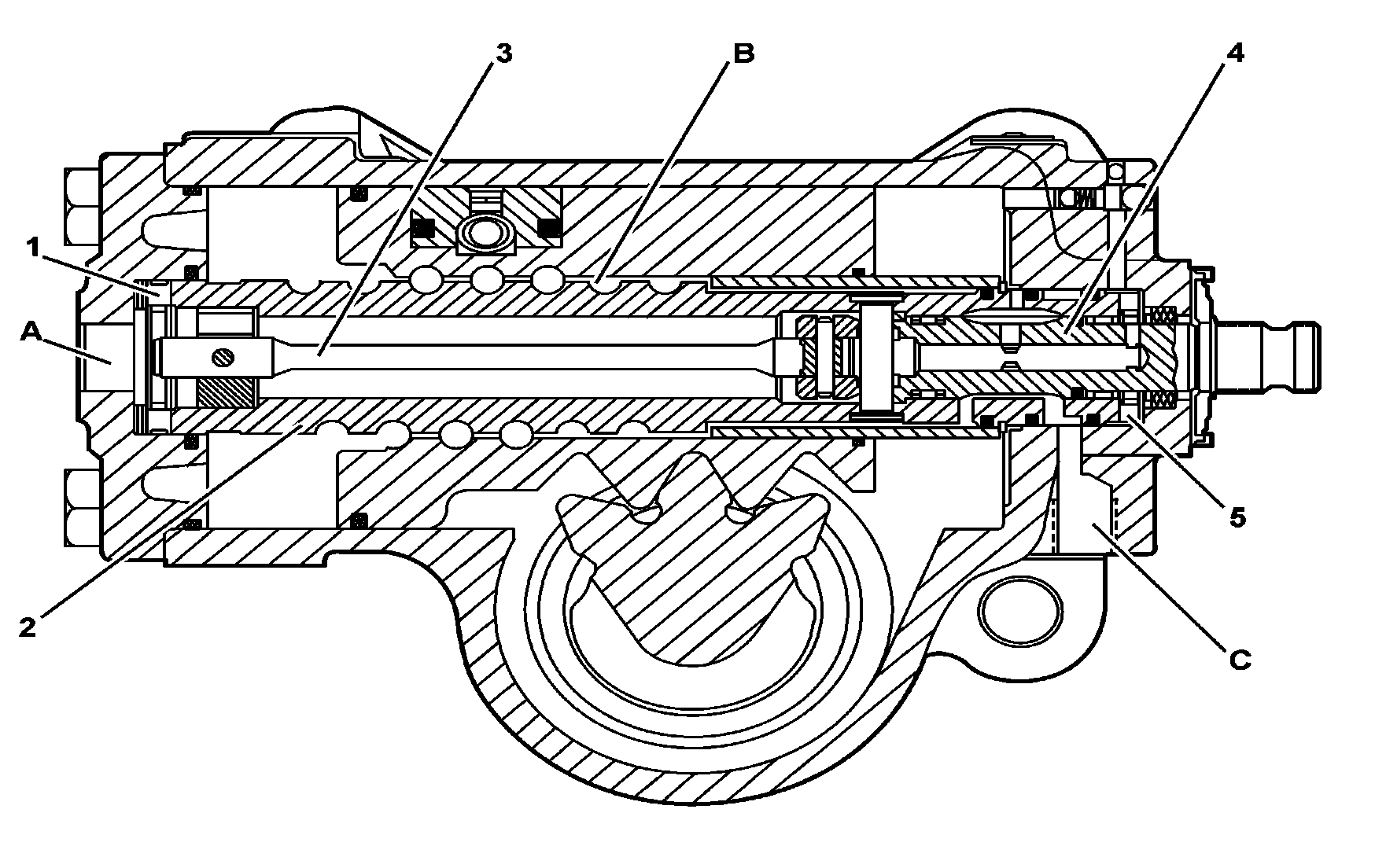

Longitudinal cut section of the steering gear ZF - SERVOCOM

1 Axial bearing

2 Worm axle

3 Twisting bar

4 Rotating valve

5 Axial bearing

A Oil output to the canister

B Worm shaft thread - spheres row

c Oil input of the hydraulic steering

Task

Transmit the direction movement of the steering wheel to the vehicle wheels smoothly and without effort, with the help of a hydraulic system.

Composition

Steering principle by circulating spheres.

The rotating valve (4) is connected at one side to the steering rod and at the other to a twisting bar (3). In its turn, the twisting bar is fixed to the worm shaft (2). The worm shaft is supported on both ends by axial bearings (1) (5) and in a row of spheres (B) integrated to the piston circulates at its outer thread . The conversion of the axial movement to radial movement is performed by the steering sector arm.

Steering gear - Arrangement

GF46.20-B-2100-01A

Steering gear - Function

GF46.20-B-2100-02A
