Remove/install side wall paneling

Type ar · topic 68.30 · version 0102 · 2003-05-12

Applies to: MODEL 461.238 /335 /337 /450

Where it sits

Function group 3 Body › 68 Interior equipment › 68.30 Coverings, trim — Series 461 (models 238, 335, 337, 450)

EinPAS 37 Interior equipment › 37.45 Trim › 37.45.33 Side wall trim — Series 461 (models 238, 335, 337, 450)

AR68.30-P-1450C

Remove/install side wall paneling

24.11.99

MODEL 461.238 /335 /337 /450

Remove/install side wall paneling

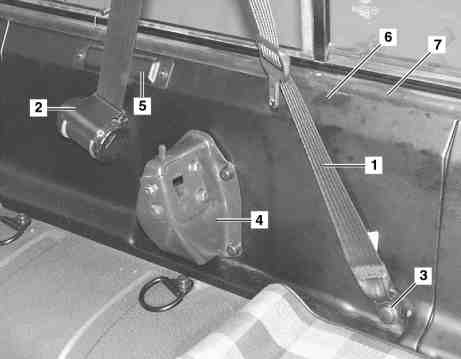

P68.30-2211-11

Illustrated on left side wall paneling

1 Seat belt

2 Automatic belt retractor

3 Belt end fitting

4 Rear bench seat lock

5 Cover

6 Side wall paneling

7 Gasket

Remove/install side wall paneling
Remove/install side wall paneling

P68.30-2212-01

8 Plug connector

9 Antenna amplifier

10 Retaining clamp

P68.30-2213-01

Remove/install

1

Fold rear bench seat toward front

2

Remove automatic belt retractor (2)

*BA91.40-P-1006-01C

3

Remove belt end fitting

*BA91.40-P-1001-01C

3

Remove rear bench seat lock (4)

4.1

Remove cover (5) from side wall paneling (6)

Only with left side wall paneling and window antenna.

5.1

Disconnect connector (8)

Only with left side wall paneling and window antenna.

6.1

Remove antenna amplifier (9)

Only with left side wall paneling and window antenna.

7

Remove side wall paneling (6).

Removal:Lift gasket (7) of side window and remove side wall paneling (6) upward

Installation: Insert retaining clips (10) at bottom and pull gasket (7) of side window over side wall paneling (6).

8

Install in the reverse order

Safety belts/belt tensioners

Number

Designation

Models 461

BA91.40-P-1001-01C

Screw retaining belt end fitting.

Nm

35

BA91.40-P-1006-01C

Screw on rear automatic belt retractor

Nm

25
