Remove/install side wall lining
Type ar · topic 68.30 · version 0100 · 2016-02-04
Applies to: Model 909.6 with code Z8A (Pre-installations - Mixto) In passenger compartment
Where it sits
Function group 3 Body › 68 Interior equipment › 68.30 Coverings, trim — Series 909 (models 6**)
EinPAS 37 Interior equipment › 37.45 Trim › 37.45.33 Side wall trim — Series 909 (models 6**)
AR68.30-D-1450F
| Remove/install side wall lining
| 08.12.2015
|
Model
| 909.6
|
|
| with code Z8A (Pre-installations - Mixto)
|
|
| In passenger compartment
|

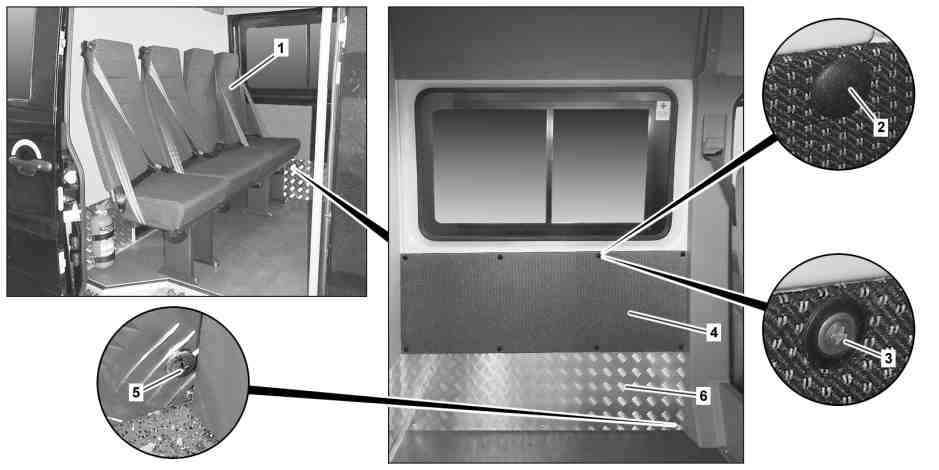

1
| Passenger seat
|
| 4
| Top side wall paneling
|
2
| Cover
|
| 5
| Screw
|
3
| Screw
|
| 6
| Bottom side wall paneling
|
| Notes on carrying out repair work in the vehicle interior
|
| AH68.00-N-0001-01S
|
| Remove/install
|
|
|
1
| Remove passenger seat (1)
|
| AR91.21-D-4460FA
|
2
| Remove covers (2)
|
|
|
3
| Remove bolt (3)
|
|
|
4
| Remove upper side wall paneling (4)
|
|
|
5
| Unscrew bolts (5)
|
|
|
6
| Remove lower side wall paneling (6)
|
|
|
7
| Install in the reverse order
|
|
|
