Remove/install charge air temperature sensor

Type ar · topic 09.41 · version 0100 · 2016-02-12

Applies to: Cumbustion engine 612 with Vehicle 979.013, 979.016

Where it sits

Function group 1 Engine › 09 Air intake, turbocharging › 09.41 Charge air pipe/charge air cooling — Series 979 (models 013, 016)

EinPAS 15 Engine › 15.30 Air intake/charging › 15.30.12 Sensor/switch/wiring harness — Series 979 (models 013, 016)

Also applies to engines/gearboxes: 612 ***

AR09.41-B-2002B

Remove/install charge air temperature sensor

12.02.16

Cumbustion engine 612 with Vehicle 979.013, 979.016

Remove/install charge air temperature sensor

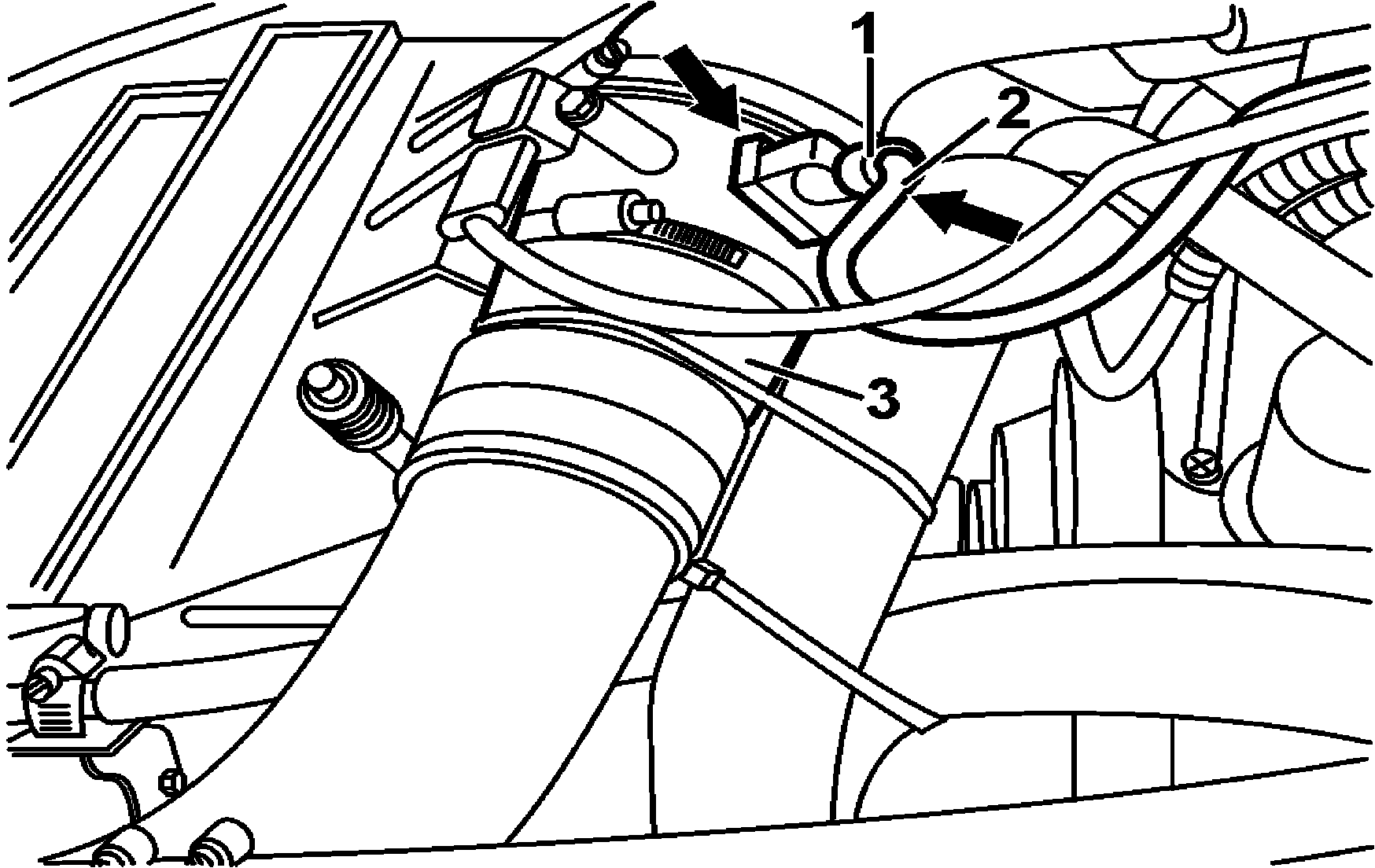

B09.41-0028-01

1 Charge air temperature sensor

2 Connector

3 Charge air tube

Remove and install

Danger!

Risk of injury due to being caught and smashed when tilting the cabin

During the cabin tilting operation back and forth, do not go in its inclination area and take preventive measures to avoid that non-authorized people get into it. Always tilt the cabin up to its final position and lock it with the safety device.

AS60.80-B-0001-01A

1

Tilt the cabin.

AR60.80-B-0010D

2

Remove the connector (2) from the charge air temperature sensor (1).

3

Compress the locking fins (arrows) and remove the sensor (1) from the air tube (3).

4

Install in reverse order.
