Remove/install boost pressure sensor

Type ar · topic 09.41 · version 0100 · 2016-02-12

Applies to: Cumbustion engine 612 with Vehicle 979.013, 979.016

Where it sits

Function group 1 Engine › 09 Air intake, turbocharging › 09.41 Charge air pipe/charge air cooling — Series 979 (models 013, 016)

EinPAS 15 Engine › 15.30 Air intake/charging › 15.30.12 Sensor/switch/wiring harness — Series 979 (models 013, 016)

Also applies to engines/gearboxes: 612 ***

AR09.41-B-2001B

Remove/install boost pressure sensor

12.02.16

Cumbustion engine 612 with Vehicle 979.013, 979.016

Remove/install boost pressure sensor

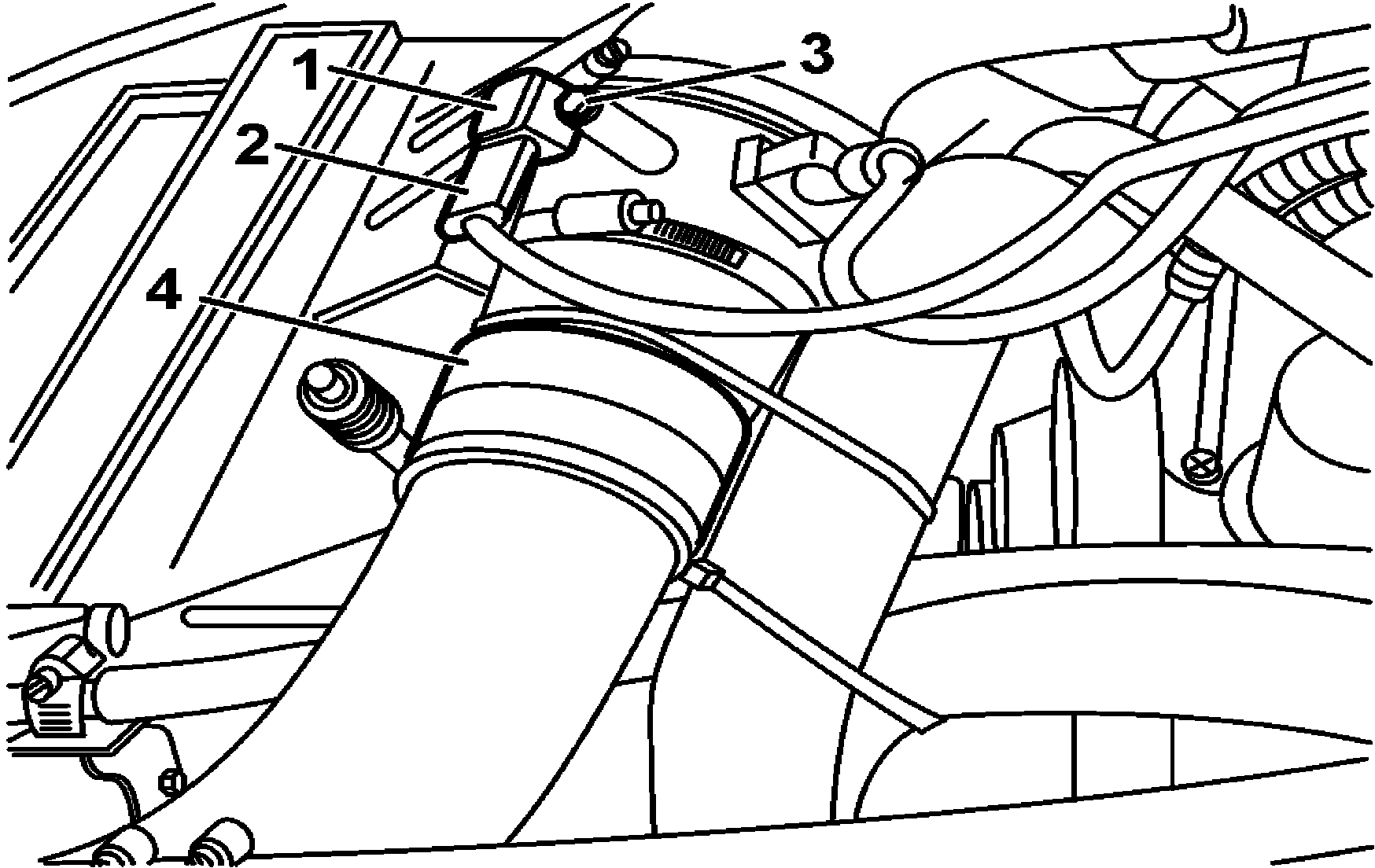

B09.41-0027-01

1 Charge air pressure sensor

2 Connector

3 Bolt

4 Charge air pipe

Remove and install

Danger!

Risk of personal and material damages when tilting and returning the vehicle cab.

Make sure the tilting and returning area is clear of objects and people. Tilt the cab up to the safety rod and secure it in the final position. Return the cab up to its correct latching in the operating position.

AS60.80-B-0001-01A

1

Tilting the cab.

AR60.80-B-0010D

2

Detach the connector (2) from the charge air pressure sensor (1).

3

Loosen the screws (3) and remove the pressure sensor (1) from the charge air pipe (4).

4

Install in the reverse order.
