Automatic transmission fluid and oil filter change

AP27.00-S-2702EG

Automatic transmission fluid and oil filter change

20.07.2020

Transmission

725.0 in model 447, 448

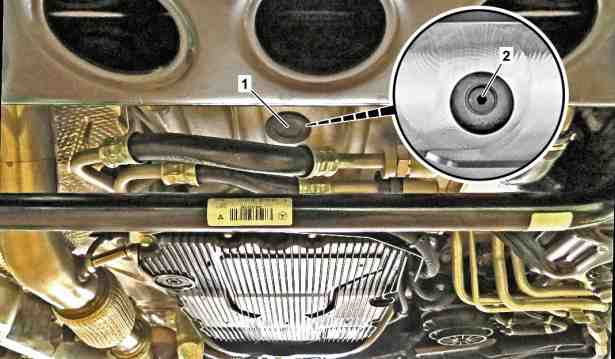

1

Plug

2

Drain screw

 Danger

Risk of death caused by vehicle slipping or toppling off of the lifting platform.

Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.

AS00.00-Z-0010-01A

 Warning

Risk of injury. Skin or eye injuries may result when handling hot or glowing objects.

Wear protective gloves, protective clothing and safety glasses, if necessary.

AS00.00-Z-0002-01A

 Caution

Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil

Wear protective gloves, protective clothing and safety glasses.
Do not pour transmission oil into beverage bottles.

AS00.40-Z-0001-01A

Topical note

General information on repair work on transmission

AH27.00-S-1000-01PS



Remove

1

Remove automatic transmission oil pan with automatic transmission oil filters.



AR27.10-S-7031EA

 The automatic transmission oil pan and the automatic transmission oil filters are a single component part, and they can only be replaced together.

2

Remove stop plug(1).

3

Turn torque converter until drain screw (2) appears.

Draining

4

Unscrew drain screw (2) and completely drain off transmission oil.


Collect the drained transmission oil in a suitable container in order to measure the oil filling quantity.
Damage can otherwise occur.


Dispose of old drain screw (2).
Otherwise, this may lead to leakage and consequential damage.



Clean

5

Clean drain opening on torque converter.



Install

6

Screw in new drain screw (2).


Replace drain screw (2).
Otherwise, this may lead to leakage and consequential damage.

 Drain screw to torque converter

*BA27.20-N-1002-01EA

7

Install stop plug (1).

8

Install new automatic transmission oil pan.



AR27.10-S-7031EA

 Torque converter

Number

Designation

Transmission 725.0 in model 447, 448

BA27.20-N-1002-01EA

Drain screw to torque converter

Nm

10
