Automatic transmission fluid and oil filter change

AP27.00-D-2702TS

Automatic transmission fluid and oil filter change

13.02.2019

Transmission

722.9 in model 907

Modification notes

08.11.2018

Automatic transmission fluid ATF

Transmission 722.9

BF27.00-N-1001-01A

1

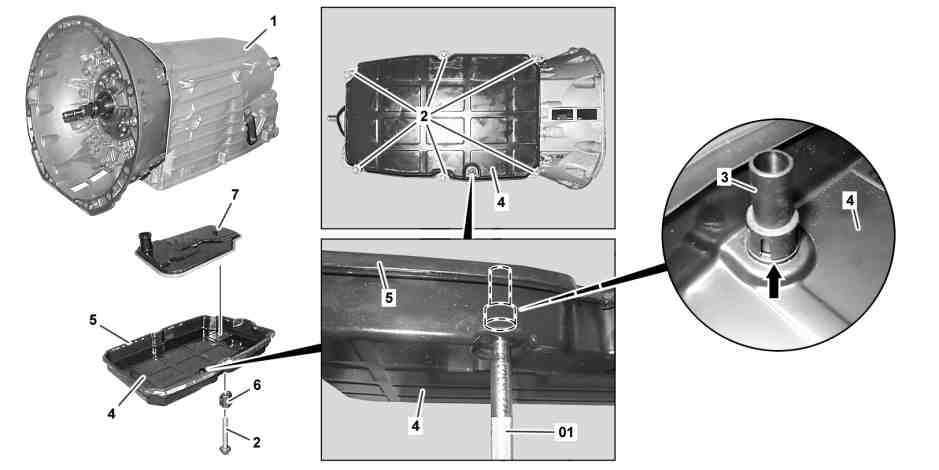

Transmission housing

4

Oil pan

7

Oil filter

2

Bolts

5

Seal

3

Overflow pipe

6

Sprag



Remove

1

Remove auxiliary oil pump.

With CODE MJ8 (ECO start/stop function)



AR27.57-D-0652TSR

2

Drain transmission oil from torque converter.



AR27.20-D-0200-03TS

 Drain screw to torque converter

*BA27.20-N-1001-01F

 Counterholder

*651589004000

 Counterholder

*651589084000

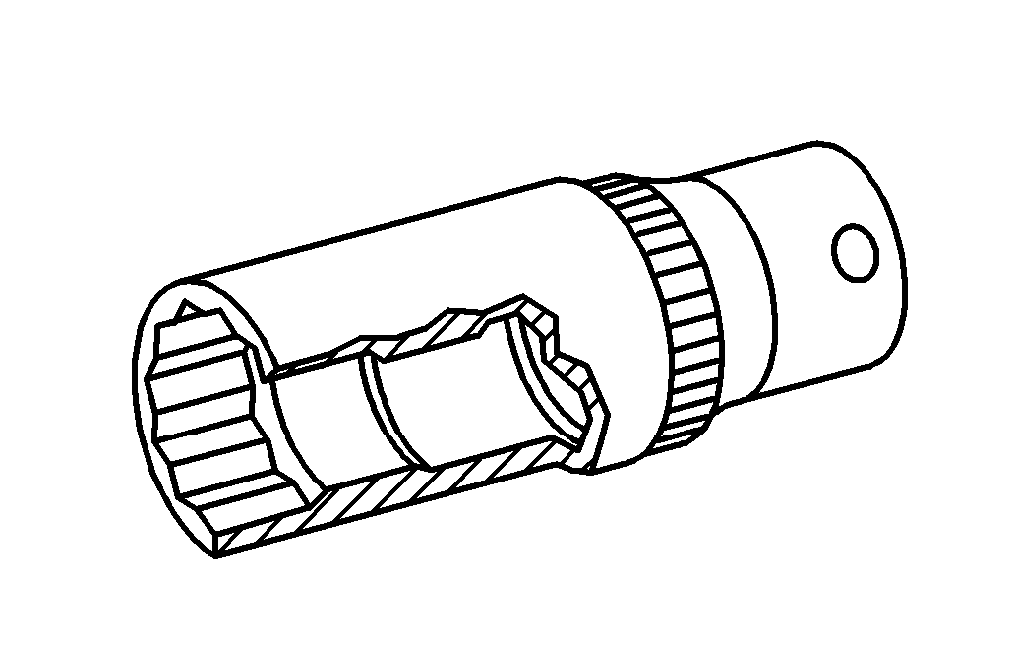

 Socket wrench bit

*001589650900

3

Remove oil pan (4).



AR27.10-D-7031TSR

4

Remove oil filter (7).

Install

5

Install new oil filter (7).

6

Install oil pan (4).



AR27.10-D-7031TSR

 With CODE MJ8 (ECO start/stop function)
Fill automatic transmission only after installation of auxiliary oil pump.

7

Install auxiliary oil pump.

With CODE MJ8 (ECO start/stop function)



AR27.57-D-0652TSR

 Automatic transmission fluid ATF

*BF27.00-N-1001-01A

8

Confirm conducted operations in maintenance booklet or in Digital Service Booklet (DSB).

 Torque converter

Number

Designation

Transmission 722.9

BA27.20-N-1001-01F

Drain screw to torque converter

M8

Nm

10

M10

Nm

15

 Automatic transmission

Number

Designation

Transmission 722.9

BF27.00-N-1001-01A

Automatic transmission fluid ATF

Filling capacity - complete refill

Liter

10,0

Filling capacity - oil change

Liter

9,0

Filling capacity, transmission oil change

with torque converter

Liter

9,0

Filling capacity, transmission oil change

without torque converter

Liter

5,5

Sheet

BB00.40-P-0236-15A
