83-1002.01 Short test
Commercially available tools | Order no. | Company |
Temperature measuring unit with measuring probe WB 24 | - | Ahlborn, Therm 2263-2 Eichenfeldstraße 1 - 3 D-8150 Holzkirchen |
| ||
Testing
-------------------------------
Note
Perform test when the coolant has cooled down.
1 Attach exhaust gas extractor to exhaust pipe.
2 In the case of the DBW 2010 heater, switch on ignition.

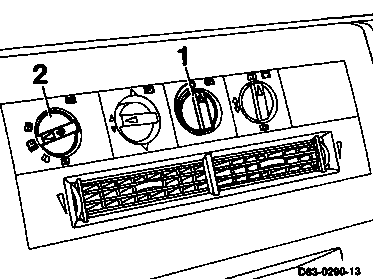

3 Position rotary button (1) for vehicle heating on hot.
4 Position rotary button (2) for heater blower on position 2.
Example

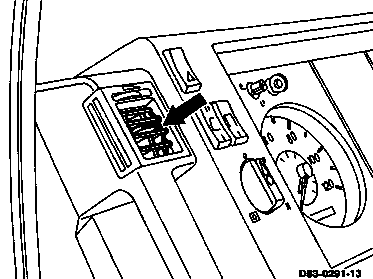

5 Place thermometer in the hot air outlet opening (arrow).
6 Switch on auxiliary heater.
7 The air outlet temperature must be 45°C after switching on for approx. 12 minutes.
8 After completing the test, switch off auxiliary heater.
9 If heat output is inadequate, refer to programmed repairs (83-0009).
